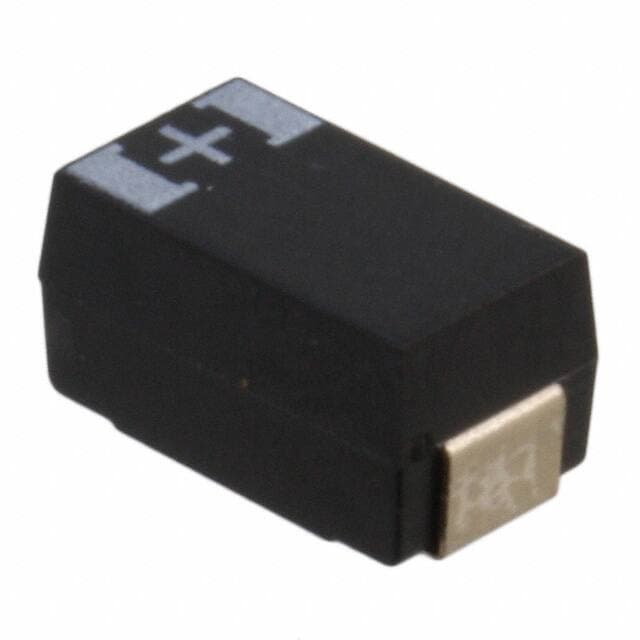

PANASONIC 10TPB150ML

Manufacturer No:

10TPB150ML

Manufacturer:

PANASONIC

Package:

CHIP

Description:

Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 10V, 20% +Tol, 20% -Tol, 150uF, Surface Mount, 2917, CHIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

10TPB150ML information

PANASONIC 10TPB150ML technical specifications, attributes, parameters and parts with similar specifications to PANASONIC 10TPB150ML.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
PANASONIC CORP

Package Description
CHIP

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8532.21.00.50

Factory Lead Time
22 Weeks, 1 Day

Samacsys Manufacturer
Panasonic

Additional Feature
ESR IS MEASURED AT 100 KHZ, RIPPLE CURRENT IS MEASURED AT 100KHZ, 45CEL

Capacitance
150 µF

Capacitor Type
TANTALUM CAPACITOR

Dielectric Material
TANTALUM (SOLID POLYMER)

ESR
40 mΩ

Height
2.8 mm

JESD-609 Code
e4

Leakage Current
0.15 mA

Length
7.3 mm

Mounting Feature
SURFACE MOUNT

Negative Tolerance
20%

Number of Terminals
2

Operating Temperature-Max
105 °C

Operating Temperature-Min
-55 °C

Package Style
SMT

Packing Method
TR, EMBOSSED, 13 INCH

Polarity
POLARIZED

Positive Tolerance
20%

Rated (DC) Voltage (URdc)
10 V

Ripple Current
2000 mA

Size Code
2917

Surface Mount
YES

Tan Delta
0.1

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Terminal Shape
J BEND

Width
4.3 mm

Download datasheets and manufacturer documentation for PANASONIC 10TPB150ML.

Datasheets:

PANA-S-A0020738769-1.pdf

10TPB150ML Overview

Ripple current is measured to be 2A for the part.For optimum efficiency, keep the ESR (Equivalent Series Resistance) at 40mOhm @ 100kHz.Leakage current 150?A is supported.With 150?F capacitance, it operates.In order to ensure reliability, it operates at a voltage of 10V.A voltage of -55°C~105°C is used to power the device.With a maximum seated height of 0.118 3.00mm°C, it is capable of stable operation.

10TPB150ML Features

2A ripple current
a 40mOhm @ 100kHz ESR (Equivalent Series Resistance)
a leakage current of 150?A
with a capacitance of 150?F
the voltage - rated DC of 10V
an AC voltage of -55°C~105°C

10TPB150ML Applications

There are a lot of Panasonic Electronic Components
10TPB150ML applications of tantalum polymer capacitors.

Smart phone
Tablets
Notebook
LCD TV
Power supplies
