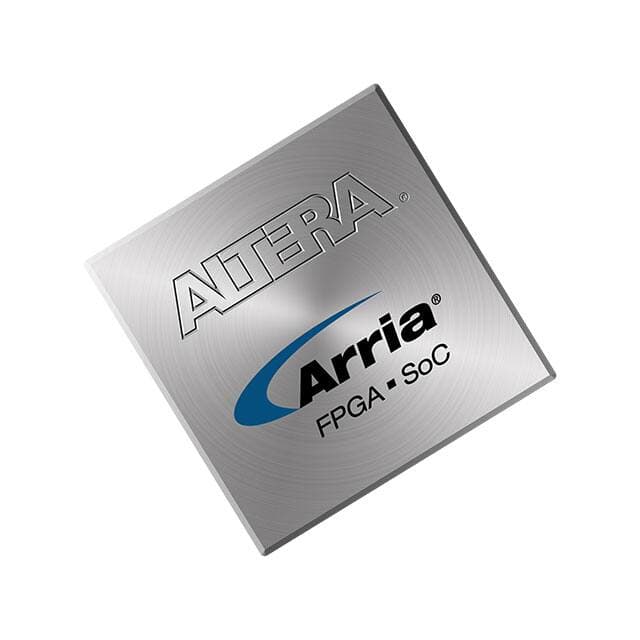

INTEL 10AX066H3F34E2SG
INTEL 10AX066H3F34E2SG

INTEL 10AX066H3F34E2SG

Manufacturer No:

10AX066H3F34E2SG

Manufacturer:

INTEL

Package:

1152-BBGA, FCBGA

Description:

3.65mm mm FPGAs Arria 10 GX Series 1152-BBGA, FCBGA 1mm mm

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

10AX066H3F34E2SG information

INTEL 10AX066H3F34E2SG technical specifications, attributes, parameters and parts with similar specifications to INTEL 10AX066H3F34E2SG.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 1152-BBGA, FCBGA
  • Surface Mount
  • YES
  • Operating Temperature
  • 0°C~100°C TJ
  • Packaging
  • Tray
  • Series
  • Arria 10 GX
  • JESD-609 Code
  • e1
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Terminal Finish
  • Tin/Silver/Copper (Sn/Ag/Cu)
  • HTS Code
  • 8542.39.00.01
  • Subcategory
  • Field Programmable Gate Arrays
  • Technology
  • CMOS
  • Voltage - Supply
  • 0.87V~0.93V
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Supply Voltage
  • 0.9V
  • Terminal Pitch
  • 1mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • JESD-30 Code
  • S-PBGA-B1152
  • Number of Outputs
  • 492
  • Qualification Status
  • Not Qualified
  • Number of I/O
  • 492
  • Number of Inputs
  • 492
  • Programmable Logic Type
  • FIELD PROGRAMMABLE GATE ARRAY
  • Number of Logic Elements/Cells
  • 660000
  • Total RAM Bits
  • 49610752
  • Number of LABs/CLBs
  • 250540
  • Length
  • 35mm
  • Height Seated (Max)
  • 3.65mm
  • Width
  • 35mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for INTEL 10AX066H3F34E2SG.

Datasheets:

PCN Packaging:

10AX066H3F34E2SG Overview


There are two packages that contain fpga chips: 1152-BBGA, FCBGA package and X package. The FIELD PROGRAMMABLE GATE ARRAY-series of FPGAs are composed of this type. Having 492 I/Os makes data transfers more coherent. Logic blocks consist of 660000 logic elements/cells. The supply voltage is 0.9V volts. In this case, the FPGA part belongs to the Field Programmable Gate Arrays family. An attachment Surface Mount allows the FPGA module to be attached to the development board. The supply voltage of the device is 0.87V~0.93V , at which it runs. The Arria 10 GX series FPGA is a type of FPGA that belongs to the Arria 10 GX family of FPGAs. When operating the machine, it is important to keep the temperature within 0°C~100°C TJ range. This device is equipped with 492 separate outputs, which makes it a very versatile device. There is an FPGA model contained in Tray in order to conserve space. A device like this one offers 49610752 RAM bits, which is a considerable amount of memory. A total of 250540 LABs/CLBs make up this FPGA array. The device runs on a 0.9V battery and requires no additional power supply to operate.

10AX066H3F34E2SG Features


492 I/Os
Up to 49610752 RAM bits


10AX066H3F34E2SG Applications


There are a lot of Intel
10AX066H3F34E2SG FPGAs applications.


  • Computer hardware emulation
  • Integrating multiple SPLDs
  • Voice recognition
  • Cryptography
  • Filtering and communication encoding
  • Aerospace and Defense
  • Medical Electronics
  • Audio
  • Automotive
  • Consumer Electronics
