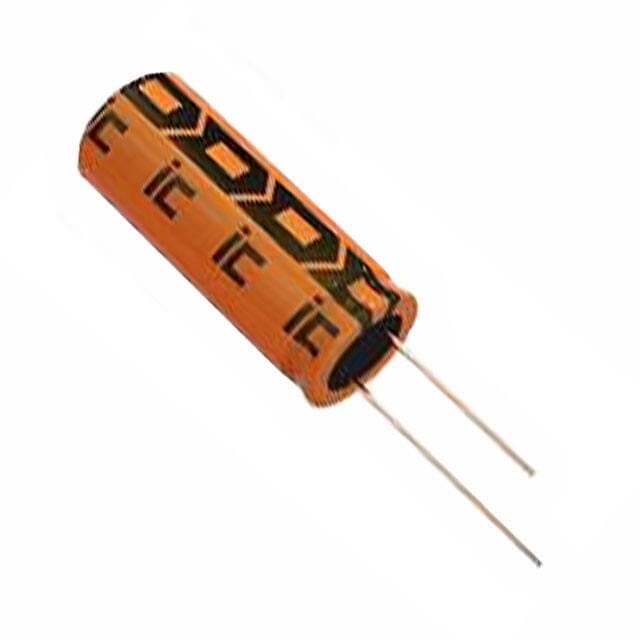

Illinois Capacitor 108RZM025M1320
Illinois Capacitor 108RZM025M1320

Illinois Capacitor 108RZM025M1320

Manufacturer No:

108RZM025M1320

Manufacturer:

Illinois Capacitor

Package:

Radial, Can

Description:

RZM 1000?F Capacitor ±20% Bulk Through Hole 1.15A 0.492Dia 12.50mm -55°C~105°C Polar 5.0038mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

108RZM025M1320 information

Illinois Capacitor 108RZM025M1320 technical specifications, attributes, parameters and parts with similar specifications to Illinois Capacitor 108RZM025M1320.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • RZM
  • Published
  • 2008
  • Size / Dimension
  • 0.492Dia 12.50mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Voltage - Rated
  • 25V
  • Capacitance
  • 1000?F
  • Lead Pitch
  • 5.0038mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.197 5.00mm
  • Rated (DC) Voltage (URdc)
  • 25V
  • Lifetime @ Temp
  • 3000 Hrs @ 105°C
  • Leakage Current
  • 0.79mA
  • Ripple Current
  • 1.15A
  • Polarization
  • Polar
  • Life (Hours)
  • 3000 hours
  • Tan Delta
  • 0.16
  • Impedance
  • 210mOhm
  • Height Seated (Max)
  • 0.866 22.00mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Illinois Capacitor 108RZM025M1320.

Datasheets:

Environmental Information:

108RZM025M1320 Overview


265mOhm @ 120Hz must have the ESR (Equivalent Series Resistance) to function properly.Keeping the maximum height of the seated person (Max) below 0.866 22.00mm is recommended.Set the rated (DC) voltage of the device (URdc) to 25V.High efficiency requires an operating temperature of -55°C~105°C.

108RZM025M1320 Features


an operating temperature of -55°C~105°C


108RZM025M1320 Applications


There are a lot of Illinois Capacitor
108RZM025M1320 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
