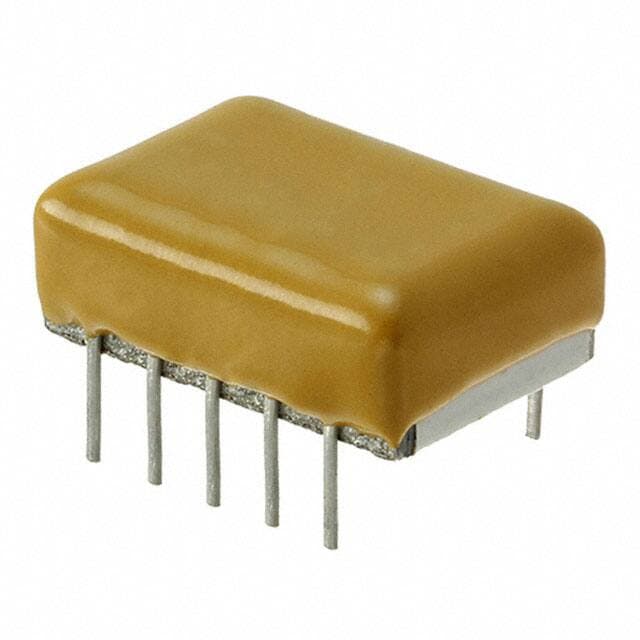

Cornell Dubilier 106K050CS4
Cornell Dubilier 106K050CS4

Cornell Dubilier 106K050CS4

Manufacturer No:

106K050CS4

Manufacturer:

Cornell Dubilier

Package:

10-DIP (0.400, 10.16mm)

Description:

Capstick® CS Series 10?F ±10% 10-DIP (0.400, 10.16mm) 50V Polymer, Metallized Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

106K050CS4 information

Cornell Dubilier 106K050CS4 technical specifications, attributes, parameters and parts with similar specifications to Cornell Dubilier 106K050CS4.

  • Type
  • Parameter
  • Factory Lead Time
  • 17 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • 10-DIP (0.400, 10.16mm)
  • Dielectric Material
  • Polymer, Metallized
  • Packaging
  • Bulk
  • Series
  • Capstick® CS
  • Published
  • 2013
  • Size / Dimension
  • 0.618Lx0.500W 15.70mmx12.70mm
  • Tolerance
  • ±10%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • PC Pins
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -55°C
  • Capacitance
  • 10?F
  • Voltage - Rated DC
  • 50V
  • Depth
  • 12.7mm
  • Reach Compliance Code
  • unknown
  • Lead Pitch
  • 10.0076mm
  • Capacitor Type
  • ARRAY/NETWORK CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 3mOhm
  • Lead Diameter
  • 508 ?m
  • Height
  • 8.1mm
  • Height Seated (Max)
  • 0.319 8.10mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Cornell Dubilier 106K050CS4.

Datasheets:

ConflictMineralStatement:

106K050CS4 Overview


In the seated position, the maximum height reaches 0.319 8.10mm.It operates at 0.618Lx0.500W 15.70mmx12.70mm sizes and dimensions.When setting the ESR (Equivalent Series Resistance), setting it at 3mOhm ensures reliable performance.It is packaged in a 10-DIP (0.400, 10.16mm) case.Rated DC is 50V for this electrical part.

106K050CS4 Features


the maximal height is 0.319 8.10mm
with the size / dimension of 0.618Lx0.500W 15.70mmx12.70mm


106K050CS4 Applications


There are a lot of Cornell Dubilier Electronics (CDE)
106K050CS4 applications of capacitor networks.


  • Professional electronics
  • High density consumer electronics
