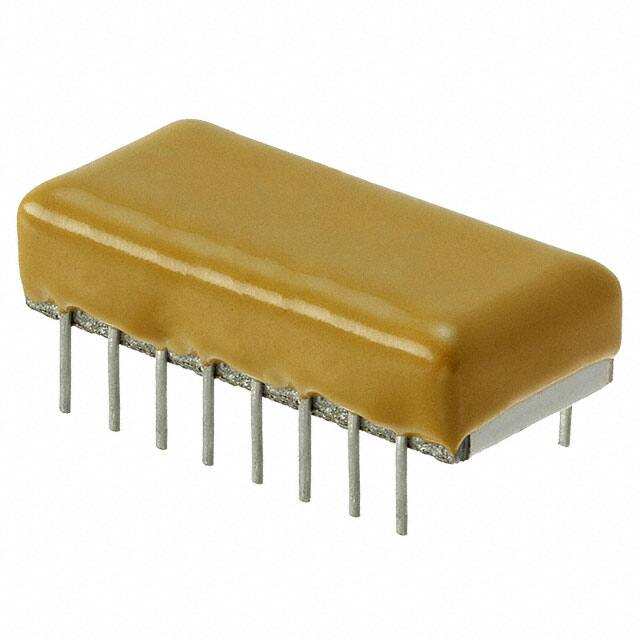

Cornell Dubilier 105K500CS6

Manufacturer No:

105K500CS6

Manufacturer:

Cornell Dubilier

Package:

16-DIP

Description:

Capstick® CS Series 1?F ±10% 16-DIP 500V Polymer, Metallized Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

105K500CS6 information

Cornell Dubilier 105K500CS6 technical specifications, attributes, parameters and parts with similar specifications to Cornell Dubilier 105K500CS6.

Type
Parameter

Factory Lead Time
17 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
16-DIP

Dielectric Material
Polymer, Metallized

Packaging
Bulk

Series
Capstick® CS

Published
2013

Size / Dimension
1.134Lx0.701W 28.80mmx17.80mm

Tolerance
±10%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
PC Pins

ECCN Code
EAR99

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Capacitance
1?F

Voltage - Rated DC
500V

Reach Compliance Code
unknown

Lead Pitch
15.0114mm

Capacitor Type
ARRAY/NETWORK CAPACITOR

ESR (Equivalent Series Resistance)
8mOhm

Circuit Type
Bussed

Height
8.1mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Cornell Dubilier 105K500CS6.

Datasheets:

cornelldubilierelectronicscde-105k250cs6-datasheets-0700.pdf

ConflictMineralStatement:

cornelldubilier-st1037-conflictmineralstatement-7727.pdf

105K500CS6 Overview

Sitting at 0.319 8.10mm height, the maximum height is reached.1.134Lx0.701W 28.80mmx17.80mm is its size/dimension.To ensure reliable performance, set the ESR to 8mOhm.In a 16-DIP case, the product is packaged.A voltage of 500V is required for the operation of this electrical part.

105K500CS6 Features

the maximal height is 0.319 8.10mm
with the size / dimension of 1.134Lx0.701W 28.80mmx17.80mm

105K500CS6 Applications

There are a lot of Cornell Dubilier Electronics (CDE)
105K500CS6 applications of capacitor networks.

Professional electronics
High density consumer electronics
