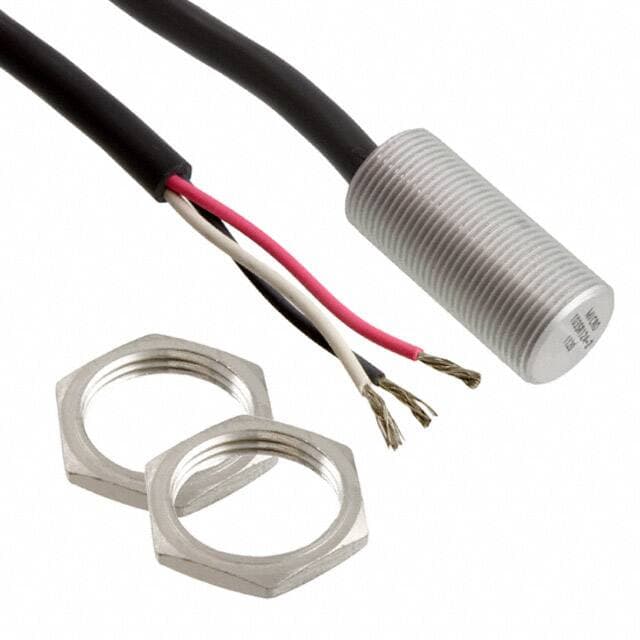

honeywell 103SR12A-2
Manufacturer No:
103SR12A-2
Manufacturer:
Package:
Cylinder, Threaded
Description:
103SR Series Hall Effect Switch Cable Digital, Open Collector Magnet 0°C~70°C TA 6V~24V Cylinder, Threaded
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
103SR12A-2 information
honeywell 103SR12A-2 technical specifications, attributes, parameters and parts with similar specifications to honeywell 103SR12A-2.
- Type
- Parameter
- Factory Lead Time
- 10 Weeks
- Mount
- Panel
- Package / Case
- Cylinder, Threaded
- Number of Pins
- 3
- Housing Material
- Aluminium
- Actuator Material
- Magnet
- Operating Temperature
- 0°C~70°C TA
- Series
- 103SR
- Published
- 1998
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Type
- Hall Effect Switch
- Voltage - Supply
- 6V~24V
- Terminal Form
- UNSPECIFIED
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Number of Functions
- 1
- Reach Compliance Code
- unknown
- Current Rating
- 10mA
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Termination Style
- Cable
- JESD-30 Code
- X-XXSS-X
- Qualification Status
- Not Qualified
- Output Voltage
- 4.5V
- Max Output Current
- 20mA
- Nominal Supply Current
- 10mA
- Output Current
- 40mA
- Min Output Voltage
- 4.5V
- Max Supply Voltage (DC)
- 24V
- Min Supply Voltage (DC)
- 6V
- Must Operate
- 49.5mT
- Switching Current
- 20mA
- Must Release
- 12mT
- Length
- 25.4mm
- REACH SVHC
- No SVHC
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for honeywell 103SR12A-2.
Datasheets:
PCN Obsolescence/ EOL:
ConflictMineralStatement:
103SR12A-2 Overview
Cylinder, Threaded packages contain magnetic position sensor modules. 3 pins are present on the sensors modules. Generally, this sensor module draws 10mA current. Good sensor performance requires modules carrying 40mA current.
103SR12A-2 Features
Package / Case: Cylinder, Threaded
103SR Series
Operating Temperature: 0°C~70°C TA
Supply Voltage: 6V~24V
3 Pins
103SR12A-2 Applications
There are a lot of Honeywell Sensing and Productivity Solutions
103SR12A-2 Magnetic Position Sensors Modules applications.
- White goods
- Position and limit sensing
- RPM measurement
- Flow metering
- Commutation of brushless DC motors
- Factory automation
- Angle sensing
- Magnetic encoders
- Industrial process control
- Rotary applications
