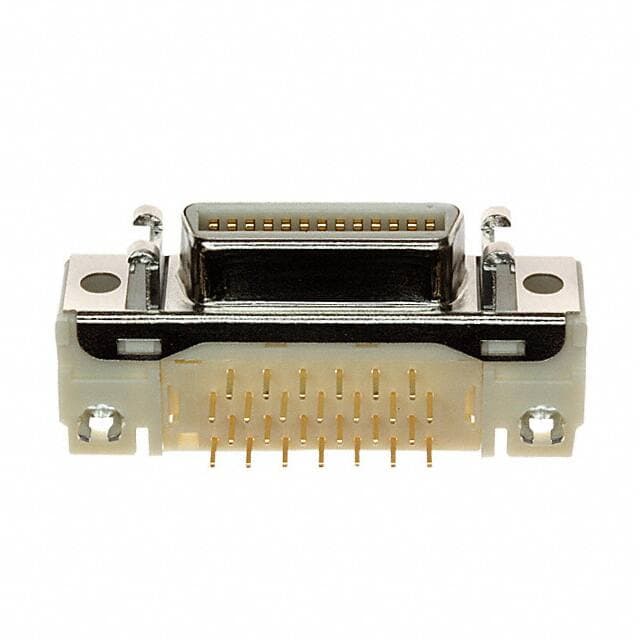

3M 10226-55G3PC

Manufacturer No:

10226-55G3PC

Manufacturer:

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

10226-55G3PC information

3M 10226-55G3PC technical specifications, attributes, parameters and parts with similar specifications to 3M 10226-55G3PC.

Type
Parameter

Factory Lead Time
13 Weeks

Contact Material
Copper

Mount
Panel, Through Hole

Mounting Type
Panel Mount, Through Hole, Right Angle

Shell Material
GLASS FILLED PCT

Housing Material
Polychlorinated

Series
102, Mini D Ribbon (MDR)

Published
2000

JESD-609 Code
e4

Feature
Board Lock, Shielded

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Receptacle

Number of Positions
26

Max Operating Temperature
105°C

Min Operating Temperature
-55°C

Number of Rows
2

Voltage - Rated
500V

Additional Feature
3M, SHIELDED

Subcategory
D Type Connectors

MIL Conformance
NO

DIN Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Pitch
2.54mm

Total Number of Contacts
26

Orientation
Right Angle

Depth
16.7mm

Current Rating
1A

Shell Finish
NICKEL

Reference Standard
UL

Contact Finish
Gold

Reliability
COMMERCIAL

Approval Agency
UL

Number Of PCB Rows
4

PCB Contact Pattern
STAGGERED

Body Breadth
0.37 inch

Contact Gender
FEMALE

UL Flammability Code
94V-0

Housing Color
Beige

Lead Length
3m

Empty Shell
NO

Rated Current (Signal)
1A

Insulation Resistance
500000000Ohm

Download datasheets and manufacturer documentation for 3M 10226-55G3PC.

Datasheets:

3m-1025055h3pl-datasheets-0761.pdf

3m-83158000-datasheets-4461.pdf

3m-10268m218pe-datasheets-9756.pdf

3m-1022655g3pc-datasheets-2664.pdf

3m-1022655g3pc-datasheets-2665.pdf

3m-1022655g3pc-datasheets-2666.pdf

ConflictMineralStatement:

3m-29259-conflictmineralstatement-2841.pdf

The 3M D-Shaped Connectors - Centronics 10226-55G3PC is a 26-position, right-angle, solder receptacle connector. It is designed to provide reliable electrical connections in a variety of applications.

Features of the 3M D-Shaped Connectors - Centronics 10226-55G3PC include:

? 26-position, right-angle, solder receptacle connector

? Durable construction with a high-temperature thermoplastic housing

? Gold-plated contacts for reliable electrical connections

? Low-profile design for easy installation

? RoHS compliant

Applications of the 3M D-Shaped Connectors - Centronics 10226-55G3PC include:

? Computer and peripheral equipment

? Telecommunications equipment

? Industrial control systems

? Automotive electronics

? Medical equipment

? Consumer electronics
