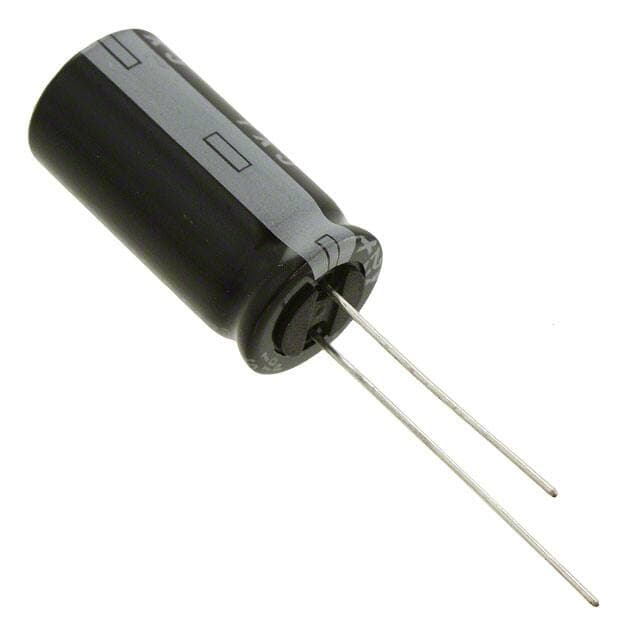

Rubycon 100YXJ220M12.5X25

Manufacturer No:

100YXJ220M12.5X25

Manufacturer:

Rubycon

Package:

Radial, Can

Description:

YXJ 220?F Capacitor ±20% Bulk Through Hole 1.62A 0.492Dia 12.50mm -40°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

100YXJ220M12.5X25 information

Rubycon 100YXJ220M12.5X25 technical specifications, attributes, parameters and parts with similar specifications to Rubycon 100YXJ220M12.5X25.

Type
Parameter

Factory Lead Time
20 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
YXJ

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

Feature
General Purpose

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Radial

Applications
General Purpose

Capacitance
220?F

Voltage - Rated DC
100V

Lead Pitch
5mm

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Voltage
100V

Lifetime @ Temp
10000 Hrs @ 105°C

Leakage Current
3?A

Ripple Current
1.62A

Life (Hours)
10000 hours

Impedance
60mOhm

Ripple Current @ Low Frequency
1.134A @ 120Hz

Ripple Current @ High Frequency
1.62A @ 100kHz

Diameter
12.5mm

Height
25mm

Height Seated (Max)
1.063 27.00mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rubycon 100YXJ220M12.5X25.

Datasheets:

rubycon-100yxj220m125x25-datasheets-3838.pdf

rubycon-100yxj220m125x25-datasheets-3839.pdf

100YXJ220M12.5X25 Overview

At full charge, the ripple current is 1.62A @ 100kHz.The ripple current is 1.134A @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 1.063 27.00mm.The capacitor operates at a voltage of 100V - Rated DC.For high efficiency, the operating temperature should be -40°C~105°C.

100YXJ220M12.5X25 Features

the ripple current is 1.62A @ 100kHz.
the ripple current is 1.134A @ 120Hz.
voltage - Rated DC of 100V
an operating temperature of -40°C~105°C

100YXJ220M12.5X25 Applications

There are a lot of Rubycon
100YXJ220M12.5X25 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
