American Technical Ceramics 100E330JW3600X

Manufacturer No:

100E330JW3600X

Manufacturer:

American Technical Ceramics

Package:

3838 (9797 Metric)

Description:

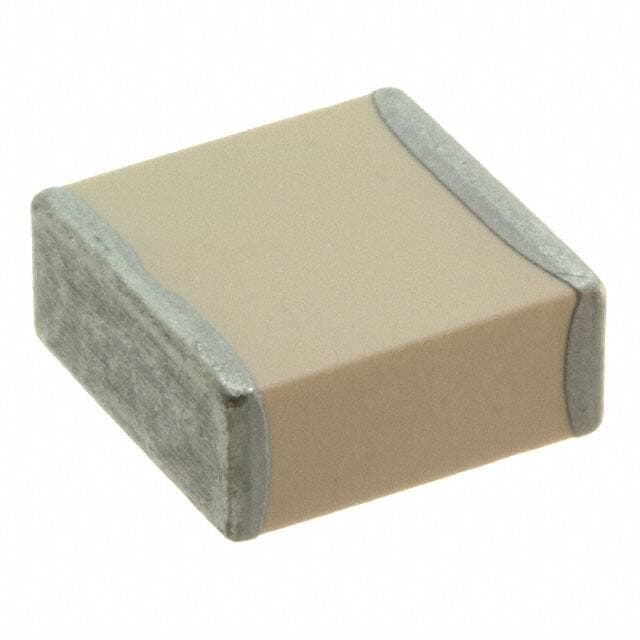

ATC 100E 33pF 3600V 3.6kV Ceramic Capacitor ±5% P90 0.380Lx0.380W 9.65mmx9.65mm -55°C~125°C 2 Terminations High Q, Low Loss, Low ESL, High Voltage Surface Mount, MLCC 3838 (9797 Metric)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

100E330JW3600X information

American Technical Ceramics 100E330JW3600X technical specifications, attributes, parameters and parts with similar specifications to American Technical Ceramics 100E330JW3600X.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount, MLCC

Package / Case
3838 (9797 Metric)

Terminal Shape
WRAPAROUND

Dielectric Material
CERAMIC

Operating Temperature
-55°C~125°C

Packaging
Tray

Series
ATC 100E

Size / Dimension
0.380Lx0.380W 9.65mmx9.65mm

Tolerance
±5%

JESD-609 Code
e0

Feature
High Q, Low Loss, Low ESL, High Voltage

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Temperature Coefficient
P90

Terminal Finish
Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

Applications
RF, Microwave, High Frequency, Bypass, Decoupling

Voltage - Rated
3600V 3.6kV

Additional Feature
STANDARD: MIL-PRF-55681, MIL-PRF-123

HTS Code
8532.24.00.20

Packing Method
TR

Capacitor Type
CERAMIC CAPACITOR

Multilayer
Yes

Rated (DC) Voltage (URdc)
3600V

Height
4.32mm

Length
9.65mm

Width
9.65mm

Thickness (Max)
0.170 4.32mm

Thickness
4.318mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for American Technical Ceramics 100E330JW3600X.

100E330JW3600X Overview

Ceramic capacitor is 0.380Lx0.380W 9.65mmx9.65mm in size/dimension for this device.A STANDARD: MIL-PRF-55681, MIL-PRF-123 is also present on this ceramic capacitor.Generally, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance with respect to temperature changes, and it is equal to P90.
