Amphenol 10022753-009LF

Manufacturer No:

10022753-009LF

Manufacturer:

Package:

Description:

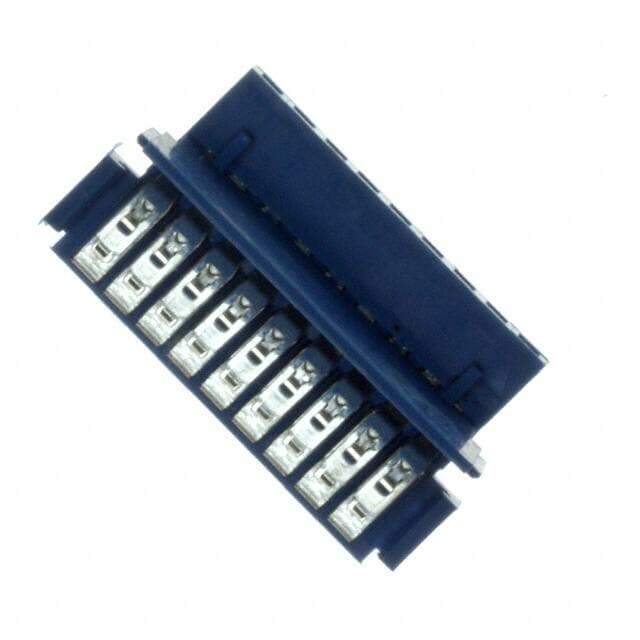

Clincher? Series FFC, FPC Receptacle Tray 0.100 2.54mm IDC 9 Positions Free Hanging (In-Line) Tin -65°C~105°C 2A per Contact

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

10022753-009LF information

Amphenol 10022753-009LF technical specifications, attributes, parameters and parts with similar specifications to Amphenol 10022753-009LF.

Type
Parameter

Contact Material
Copper Nickel Alloy

Mount
Cable, Free Hanging

Mounting Type
Free Hanging (In-Line)

Housing Material
Thermoplastic

Operating Temperature
-65°C~105°C

Packaging
Tray

Series
Clincher?

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
IDC

Connector Type
BOARD CONNECTOR

Number of Positions
9

Number of Rows
1

Gender
Female

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
2A per Contact

Pitch
0.100 2.54mm

Orientation
Straight

Depth
12.7mm

Current Rating
2A

Contact Finish
Tin

Mating Information
NO

Housing Color
Blue

Contact Resistance
15mOhm

Insulation Resistance
5GOhm

Max Voltage Rating (AC)
500V

Wire/Cable Type
Flat

Mating Cycles
100

Flat Flex Type
FFC, FPC

Connector/Contact Type
Receptacle

Locking Feature
Latch Lock

Height
15.5mm

Length
27.69mm

Width
2.54mm

Contact Finish Thickness
100.0?in 2.54?m

FFC, FCB Thickness
0.33mm

Material Flammability Rating
UL94 V-0

Radiation Hardening
No

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Download datasheets and manufacturer documentation for Amphenol 10022753-009LF.

10022753-009LF Overview

Packaging is in the form of BOARD CONNECTOR.The mounting type of the device is Free Hanging (In-Line).A Tray case is used to package the product.A product of the Clincher? Series, it belongs to the range of products of that series.Cable, Free Hanging represents the mounting point for the part.-65°C~105°C Operating Temperature is the default operating temperature for the device.

10022753-009LF Features

Clincher? series

10022753-009LF Applications

There are a lot of Amphenol ICC (FCI)
10022753-009LF FFC, FPC (Flat Flexible) Connectors applications.

Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
LED municipal outdoor and street lighting
All Electrical Machinery
Refrigeration control
