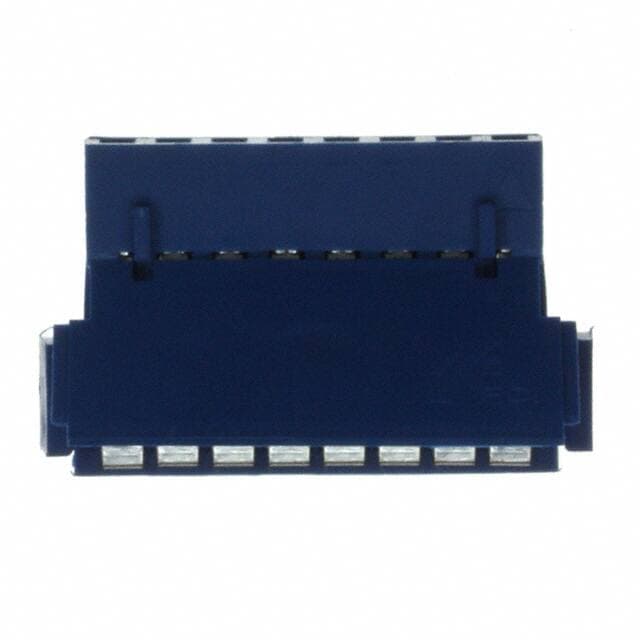

Amphenol 10022753-008LF

Manufacturer No:

10022753-008LF

Manufacturer:

Package:

Description:

Clincher? Series FFC, FPC Receptacle Tray 0.100 2.54mm IDC 8 Positions Free Hanging (In-Line) Tin -65°C~105°C 2A per Contact

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

10022753-008LF information

Amphenol 10022753-008LF technical specifications, attributes, parameters and parts with similar specifications to Amphenol 10022753-008LF.

Type
Parameter

Contact Material
Copper Nickel Alloy

Mount
Cable, Free Hanging

Mounting Type
Free Hanging (In-Line)

Housing Material
Thermoplastic

Operating Temperature
-65°C~105°C

Packaging
Tray

Series
Clincher?

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
IDC

Connector Type
BOARD CONNECTOR

Number of Positions
8

Number of Rows
1

Gender
Female

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
2A per Contact

Pitch
0.100 2.54mm

Orientation
Straight

Depth
12.7mm

Current Rating
2A

Contact Finish
Tin

Mating Information
NO

UL Flammability Code
94V-0

Housing Color
Blue

Contact Resistance
15mOhm

Insulation Resistance
5GOhm

Max Voltage Rating (AC)
500V

Wire/Cable Type
Flat

Mating Cycles
100

Flat Flex Type
FFC, FPC

Connector/Contact Type
Receptacle

Locking Feature
Latch Lock

Height
15.5mm

Length
25.15mm

Width
2.54mm

Contact Finish Thickness
100.0?in 2.54?m

FFC, FCB Thickness
0.33mm

Material Flammability Rating
UL94 V-0

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Amphenol 10022753-008LF.

10022753-008LF Overview

Packaging for this item is BOARD CONNECTOR.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the Clincher? Series.It is mounted by Cable, Free Hanging.It operates at an operating temperature of -65°C~105°C.

10022753-008LF Features

Clincher? series

10022753-008LF Applications

There are a lot of Amphenol ICC (FCI)
10022753-008LF FFC, FPC (Flat Flexible) Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
