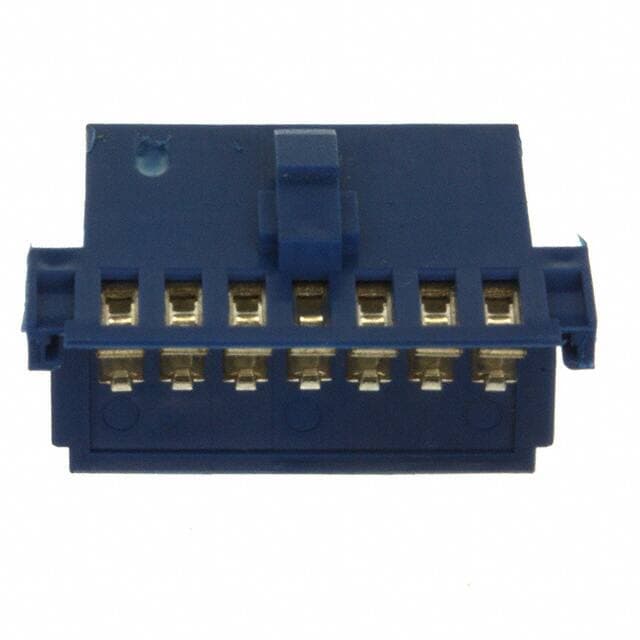

Amphenol 10022753-007LF
Amphenol 10022753-007LF

Amphenol 10022753-007LF

Manufacturer No:

10022753-007LF

Manufacturer:

Amphenol

Package:

Description:

Clincher? Series FFC, FPC Receptacle Tray 0.100 2.54mm IDC 7 Positions Free Hanging (In-Line) Tin -65°C~105°C 2A per Contact

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

10022753-007LF information

Amphenol 10022753-007LF technical specifications, attributes, parameters and parts with similar specifications to Amphenol 10022753-007LF.

  • Type
  • Parameter
  • Contact Material
  • Copper Nickel Alloy
  • Mount
  • Cable, Free Hanging
  • Mounting Type
  • Free Hanging (In-Line)
  • Housing Material
  • Thermoplastic
  • Operating Temperature
  • -65°C~105°C
  • Packaging
  • Tray
  • Series
  • Clincher?
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • IDC
  • Connector Type
  • BOARD CONNECTOR
  • Number of Positions
  • 7
  • Number of Rows
  • 1
  • Gender
  • Female
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 2A per Contact
  • Pitch
  • 0.100 2.54mm
  • Orientation
  • Straight
  • Depth
  • 12.7mm
  • Current Rating
  • 2A
  • Contact Finish
  • Tin
  • Mating Information
  • NO
  • UL Flammability Code
  • 94V-0
  • Housing Color
  • Blue
  • Contact Resistance
  • 15mOhm
  • Insulation Resistance
  • 5GOhm
  • Max Voltage Rating (AC)
  • 500V
  • Wire/Cable Type
  • Flat
  • Mating Cycles
  • 100
  • Flat Flex Type
  • FFC, FPC
  • Connector/Contact Type
  • Receptacle
  • Locking Feature
  • Latch Lock
  • Height
  • 15.5mm
  • Length
  • 22.61mm
  • Width
  • 2.54mm
  • Contact Finish Thickness
  • 100.0?in 2.54?m
  • FFC, FCB Thickness
  • 0.33mm
  • Material Flammability Rating
  • UL94 V-0
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Amphenol 10022753-007LF.

Datasheets:

10022753-007LF Overview


It comes in BOARD CONNECTOR packaging.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Tray case for packaging the product.This product is part of the Clincher? Series.Cable, Free Hanging is used to mount the part.In this case, the device operates at -65°C~105°C Operating Temperature.

10022753-007LF Features


Clincher? series


10022753-007LF Applications


There are a lot of Amphenol ICC (FCI)
10022753-007LF FFC, FPC (Flat Flexible) Connectors applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
