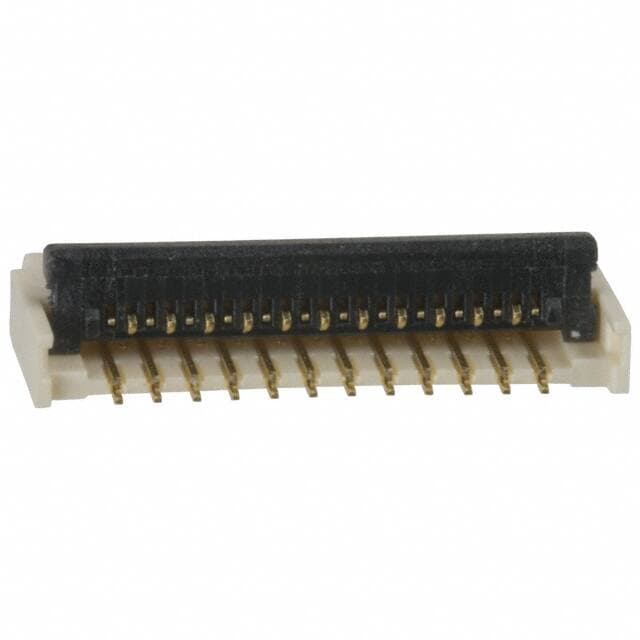

Amphenol 10017251-232240ELF
Amphenol 10017251-232240ELF

Amphenol 10017251-232240ELF

Manufacturer No:

10017251-232240ELF

Manufacturer:

Amphenol

Package:

Description:

SFYL-U Series FFC Contacts, Top Tape & Reel (TR) 0.012 0.30mm Solder 23 Positions Surface Mount, Right Angle Gold -25°C~85°C 0.2A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

10017251-232240ELF information

Amphenol 10017251-232240ELF technical specifications, attributes, parameters and parts with similar specifications to Amphenol 10017251-232240ELF.

  • Type
  • Parameter
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Housing Material
  • Thermoplastic, Glass Filled
  • Actuator Material
  • Thermoplastic
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • SFYL-U
  • Feature
  • Low Insertion Force (LIF)
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Number of Positions
  • 23
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -25°C
  • Number of Rows
  • 2
  • Voltage - Rated
  • 200V
  • Current Rating (Amps)
  • 0.2A
  • Pitch
  • 0.012 0.30mm
  • Orientation
  • Right Angle
  • Depth
  • 3.7mm
  • Current Rating
  • 200mA
  • Contact Finish
  • Gold
  • Housing Color
  • White
  • Contact Resistance
  • 70mOhm
  • Mating Cycles
  • 10
  • Flat Flex Type
  • FFC
  • Connector/Contact Type
  • Contacts, Top
  • Cable End Type
  • Notched
  • Locking Feature
  • Flip Lock
  • Actuator Color
  • Black
  • Contact Location
  • Top
  • Length
  • 9.2mm
  • Width
  • 3.7mm
  • Height Above Board
  • 0.047 1.20mm
  • FFC, FCB Thickness
  • 0.20mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Amphenol 10017251-232240ELF.

Datasheets:

10017251-232240ELF Overview


The device's mounting type is Surface Mount, Right Angle.In order to package the product, a Tape & Reel (TR) case is used.It belongs to the SFYL-U Series of products.It's best to use it when the temperature is below 85°C.This device must operate at a minimum temperature of -25°C.Its Low Insertion Force (LIF) feature renders it more powerful in many ways.The part is mounted by Surface Mount.The device runs in -25°C~85°C Operating Temperature.

10017251-232240ELF Features


SFYL-U series


10017251-232240ELF Applications


There are a lot of Amphenol ICC (FCI)
10017251-232240ELF FFC, FPC (Flat Flexible) Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
