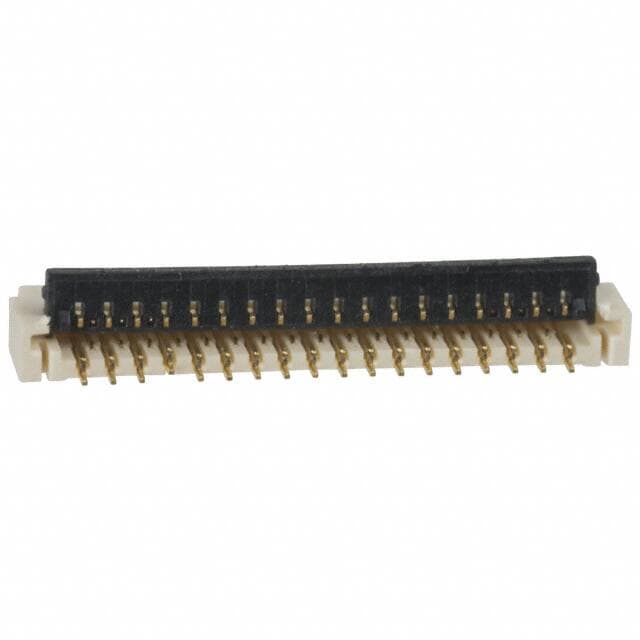

Amphenol 10013057-351200ELF
Amphenol 10013057-351200ELF

Amphenol 10013057-351200ELF

Manufacturer No:

10013057-351200ELF

Manufacturer:

Amphenol

Package:

Description:

SFYL Series FFC Contacts, Bottom Tape & Reel (TR) 0.012 0.30mm Solder 35 Positions Surface Mount, Right Angle Gold -25°C~85°C 0.2A

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

10013057-351200ELF information

Amphenol 10013057-351200ELF technical specifications, attributes, parameters and parts with similar specifications to Amphenol 10013057-351200ELF.

  • Type
  • Parameter
  • Contact Material
  • Copper Alloy
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Housing Material
  • Thermoplastic, Glass Filled
  • Actuator Material
  • Plastic
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • SFYL
  • JESD-609 Code
  • e4
  • Feature
  • Low Insertion Force (LIF)
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Number of Positions
  • 35
  • Number of Rows
  • 1
  • Voltage - Rated
  • 200V
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 0.2A
  • Total Number of Contacts
  • 35
  • Orientation
  • Right Angle
  • Depth
  • 3mm
  • Current Rating
  • 200mA
  • Contact Finish
  • Gold
  • Contact Gender
  • FEMALE
  • UL Flammability Code
  • 94V-0
  • Housing Color
  • White
  • Contact Resistance
  • 50mOhm
  • Mating Cycles
  • 10
  • Flat Flex Type
  • FFC
  • Connector/Contact Type
  • Contacts, Bottom
  • Cable End Type
  • Notched
  • Locking Feature
  • Flip Lock
  • Actuator Color
  • Black
  • Contact Location
  • Bottom
  • Length
  • 12.8mm
  • Width
  • 3mm
  • Height Above Board
  • 0.047 1.20mm
  • FFC, FCB Thickness
  • 0.20mm
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0

Download datasheets and manufacturer documentation for Amphenol 10013057-351200ELF.

Datasheets:

10013057-351200ELF Overview


Its mounting type is Surface Mount, Right Angle.Packaging is performed using a Tape & Reel (TR) case.It is part of the SFYL Series of products.A number of features make it more powerful because of its Low Insertion Force (LIF) feature.Surface Mount mounts the part.There is no operating temperature for the device.

10013057-351200ELF Features


SFYL series


10013057-351200ELF Applications


There are a lot of Amphenol ICC (FCI)
10013057-351200ELF FFC, FPC (Flat Flexible) Connectors applications.


  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
