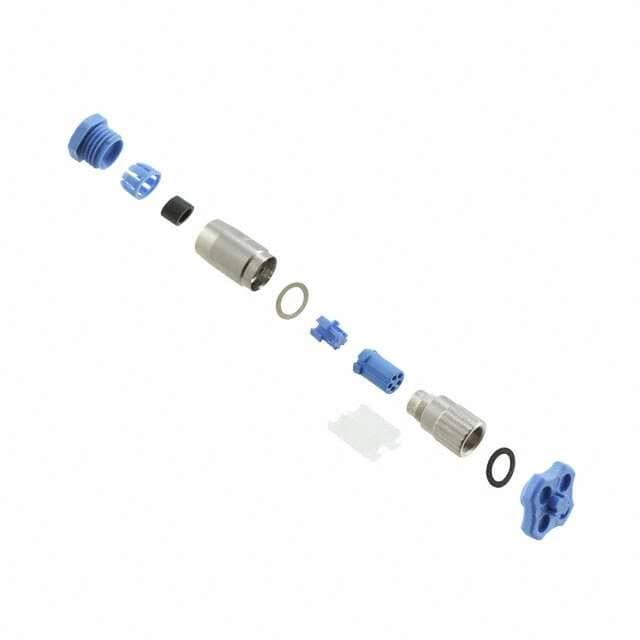

TE Connectivity 1-1437719-4
TE Connectivity 1-1437719-4

TE Connectivity 1-1437719-4

Manufacturer No:

1-1437719-4

Manufacturer:

TE Connectivity

Package:

Description:

Plug Housing Brass Free Hanging (In-Line) 5 Positions Bulk Threaded Shielded Contacts Not Included TRIAD01

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1-1437719-4 information

TE Connectivity 1-1437719-4 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 1-1437719-4.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 3 days ago)
  • Factory Lead Time
  • 14 Weeks
  • Mount
  • Cable, Free Hanging
  • Mounting Type
  • Free Hanging (In-Line)
  • Contact Shape
  • Circular
  • Shell Material
  • Brass
  • Insert Material
  • Polybutylene Terephthalate (PBT)
  • Body Material
  • PBT, Polybutylene
  • Operating Temperature
  • -40°C~80°C
  • Packaging
  • Bulk
  • Series
  • TRIAD01
  • Published
  • 2001
  • Feature
  • Backshell, Coupling Nut, Strain Relief
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 5
  • Termination
  • Crimp
  • Connector Type
  • Plug Housing
  • Type
  • For Female Sockets
  • Number of Positions
  • 5
  • Max Operating Temperature
  • 80°C
  • Min Operating Temperature
  • -40°C
  • Gender
  • Male
  • Voltage - Rated
  • 60V
  • Contact Type
  • Crimp
  • Pitch
  • 38mm
  • Orientation
  • Keyed
  • Shielding
  • Shielded
  • Ingress Protection
  • IP65 - Dust Tight, Water Resistant
  • Current Rating
  • 1A
  • Number of Contacts
  • 5
  • Contact Gender
  • Male
  • Housing Color
  • Silver
  • Operating Supply Voltage
  • 60V
  • Note
  • Contacts Not Included
  • Contact Size
  • 1.0mm
  • ELV
  • Compliant
  • Max Voltage Rating (AC)
  • 60V
  • Number of Ports
  • 1
  • Wire/Cable Gauge
  • 24 AWG
  • Assembly Length
  • 38mm
  • Length
  • 38mm
  • Material Flammability Rating
  • UL94 V-2
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-2

Download datasheets and manufacturer documentation for TE Connectivity 1-1437719-4.

Datasheets:

1-1437719-4 Overview


Packaging is in the form of Plug Housing.This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the TRIAD01 Series.Many of the features of this part can also be found in other For Female Sockets products.In operation, Backshell, Coupling Nut, Strain Relief can be maintained as long as Backshell, Coupling Nut, Strain Relief is unchanged.A Cable, Free Hanging socket is required for the mounting of this part.If the temperature is below 80°C, it's best to use it.-40°C is the minimum temperature for this device.A variety of tasks can be performed using its 1 ports.There is also the 5 termination, which is the practice of terminating the transmission line with a device whose characteristic impedance matches that of the line.

1-1437719-4 Features


5 basic kinds of terminations
TRIAD01 series


1-1437719-4 Applications


There are a lot of TE Connectivity AMP Connectors
1-1437719-4 Circular Connectors applications.


  • Scientific instruments
  • Rotary encoder
  • Displaying
  • Transducer
  • Microcontrollers.
  • Digital Storage Oscilloscope
  • Scientific instruments.
  • Music reproduction technology
  • Communication Systems
  • Data Acquisition Systems
