TE Connectivity 1-1337417-0

Manufacturer No:

1-1337417-0

Manufacturer:

TE Connectivity

Package:

Description:

Jack, Female Socket Threaded 50Ohm Bulk N Type Solder Cup 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1-1337417-0 information

TE Connectivity 1-1337417-0 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 1-1337417-0.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
23 Weeks

Contact Material
Brass

Contact Plating
Silver

Mount
Bulkhead

Mounting Type
Panel Mount

Mounting Feature
Bulkhead - Rear Side Nut

Insulation Material
Polytetrafluoroethylene

Dielectric Material
Polytetrafluoroethylene (PTFE)

Body Material
Brass

Center Contact Plating
Silver

Center Contact Material
Brass

Operating Temperature
-65°C~165°C

Packaging
Bulk

Series
Greenpar

Published
2005

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Jack, Female Socket

Number of Positions
1

Max Operating Temperature
165°C

Min Operating Temperature
-65°C

Gender
Female

Fastening Type
Threaded

Orientation
Straight

Depth
26mm

Frequency
11GHz

Number of Contacts
1

Housing Color
Silver

Polarity
Normal

ELV
Compliant

Impedance
50Ohm

Connector Style
N Type

Number of Ports
1

Body Plating
Silver

Sealable
No

Frequency (Max)
11GHz

Mating Cycles
500

Contact Termination
Solder Cup

Includes

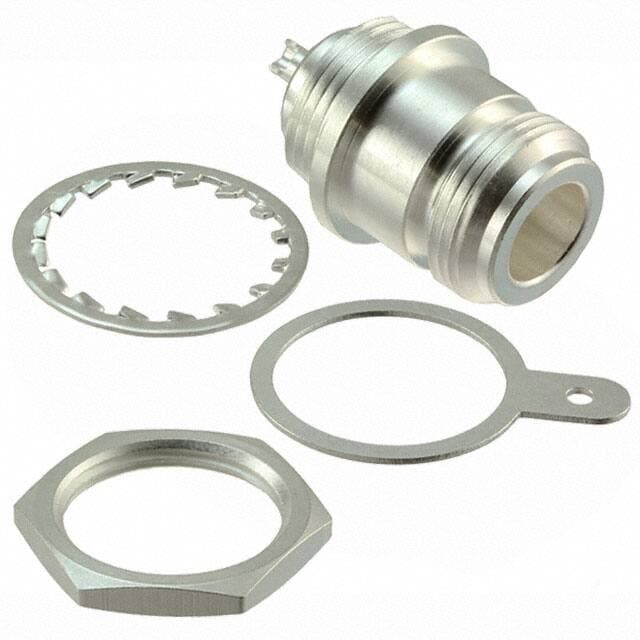

4 pcs - 1 Connector, 1 Lockwasher, 1 Nut, 1 Solder Tag

Body Finish
Silver

Flange Diameter
19 mm

Shield Termination
Solder Tag

Length
30.5mm

REACH SVHC
Unknown

Radiation Hardening
No

Download datasheets and manufacturer documentation for TE Connectivity 1-1337417-0.

1-1337417-0 Overview

Packaging for this item is Jack, Female Socket.Panel Mount is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Greenpar Series.Use it when the temperature is below 165°C.Temperatures below -65°C are required for this device to operate.The device has 1 ports for managing a variety of tasks.It is mounted by Bulkhead.It operates at an operating temperature of -65°C~165°C.Using a 11GHz frequency, it can perform efficiently.

1-1337417-0 Features

Greenpar series

1-1337417-0 Applications

There are a lot of TE Connectivity AMP Connectors
1-1337417-0 Coaxial Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
