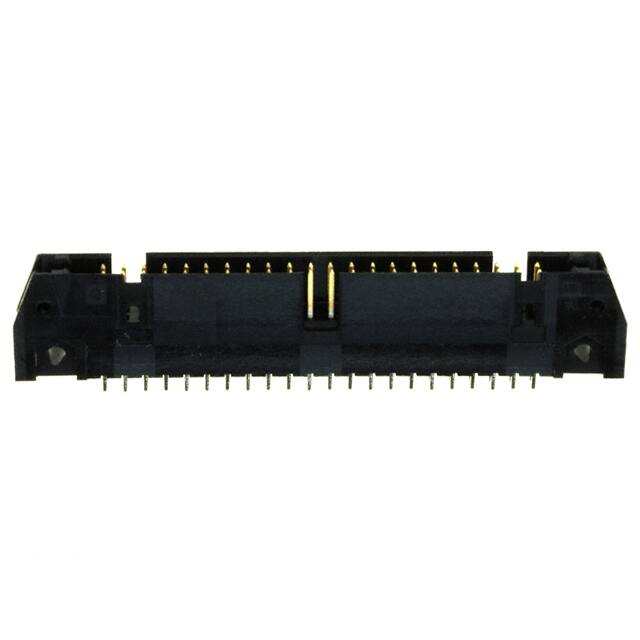

TE Connectivity 1-102153-3
TE Connectivity 1-102153-3

TE Connectivity 1-102153-3

Manufacturer No:

1-102153-3

Manufacturer:

TE Connectivity

Package:

Description:

AMP-Latch Series 2-Row Header Solder Bronze Bulk Through Hole Gold or Gold-Palladium 44-Position Board to Cable/Wire 0.549 13.94mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1-102153-3 information

TE Connectivity 1-102153-3 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 1-102153-3.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 5 months ago)
  • Factory Lead Time
  • 9 Weeks
  • Contact Material
  • Bronze
  • Contact Plating
  • Gold
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Square
  • Housing Material
  • Thermoplastic
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • AMP-Latch
  • Published
  • 1997
  • JESD-609 Code
  • e0
  • Feature
  • Mounting Flange
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Positions
  • 44
  • Number of Rows
  • 2
  • Additional Feature
  • POLARIZED
  • HTS Code
  • 8536.69.40.40
  • Contact Finish - Mating
  • Gold or Gold-Palladium
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Current Rating (Amps)
  • 1A per Contact
  • Orientation
  • Vertical
  • Depth
  • 8.53mm
  • Insulation Height
  • 0.549 13.94mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 1A
  • Pitch - Mating
  • 0.100 2.54mm
  • Insulation Color
  • Black
  • Number of Conductors
  • ONE
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Row Spacing - Mating
  • 0.100 (2.54mm)
  • Contact Length - Post
  • 0.110 2.79mm
  • Shrouding
  • Shrouded - 4 Wall

Download datasheets and manufacturer documentation for TE Connectivity 1-102153-3.

Datasheets:

1-102153-3 Overview


The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the AMP-Latch Series.To name a few, there is also POLARIZED.There are a number of advantages to its Mounting Flange feature.Part Through Hole is mounted to the part.250V is the operating supply voltage for this memory.As a result, the device runs at -55°C~105°C Operating Temperature.

1-102153-3 Features


AMP-Latch series


1-102153-3 Applications


There are a lot of TE Connectivity AMP Connectors
1-102153-3 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
