Enterprise Storage Experience in Dual Port

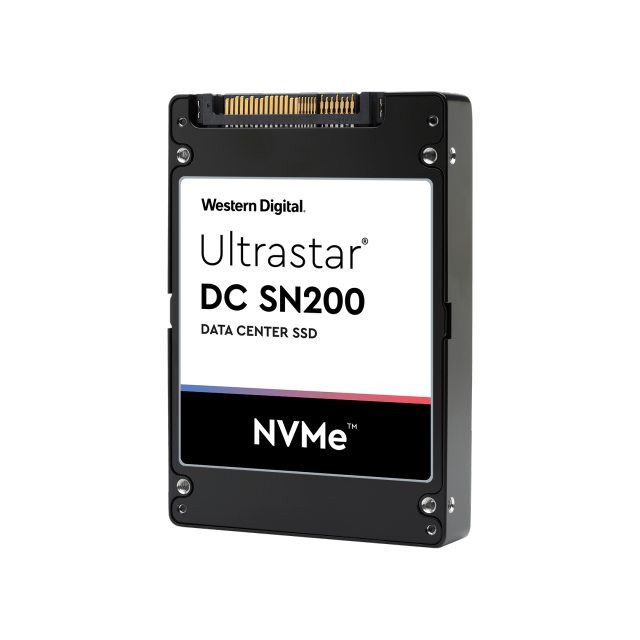

Ultrastar DC SN200 NVMe™ SSDs deliver a new level of performance and capacity for Enterprise, Cloud and Hyperscale environments.

NVMe™ SSDs for Application Acceleration
Ultrastar DC SN200 NVMe™ SSDs deliver a new level of performance and capacity for Enterprise, Cloud and Hyperscale environments. Enabling faster intelligence in the expanding digital data demands of business applications, Ultrastar DC SN200 SSDs are a reliable resource for fast access to critical data. Ultrastar DC SN200 SSDs double the speed of the previous generation within the same power envelope. By offering exceptional 580,000 mixed read/write random 70/30 4KiB⁴ I/O performance³ on the 6.4TB¹ HH-HL add-in card (AIC), Ultrastar DC SN200 SSDs enable OLTP applications to scale to new levels.

Ultra-Low Latency and High Quality of Service (QoS)
To meet Tier 1 enterprise service level agreements (SLAs), data center managers need high QoS from their storage infrastructure. Ultrastar DC SN200 delivers a 30% improvement over its predecessor providing consistent low latency as the device reaches its highest levels of throughput. The combination of high throughput performance and predictable low latency delivers extreme performance for today’s data intensive applications. High Density Supports Data Growth Delivering capacities up to 7.68TB in both form factors for 1 drive write per day (DW/D) and 6.4TB for 3 DW/D endurance ratings², Ultrastar DC SN200 delivers twice the density as its predessor. In fact, at 7.68TB this product family delivers the highest density in both 2.5-inch U.2 and HH-HL add-in card (AIC) form factors amongst NVMe-compliant devices at the time of its market introduction, providing swift access to even more data.

Enterprise Storage Experience in Dual Port
Ultrastar SSDs leverage decades of enterprise storage design expertise in high performance and high reliability to deliver our first dual-port NVMe SSD 2.5-inch drive. The dual-port feature supports two redundant paths to an SSD, ensuring access to data in the event of a failure in the data path. The dual-port option, which includes scatter gather list (SGL), is available in all models of the Ultrastar DC SN200 2.5-inch U.2 drive.

1. One megabyte (MB) is equal to one million bytes, one gigabyte (GB) is equal to 1,000MB (one billion bytes), and one terabyte (TB) is equal to 1,000GB (one trillion bytes) when referring to storage capacity. Accessible capacity will vary from the stated capacity due to formatting, system software, and other factors.
2. Endurance rating based on DW/D using 4KiB random write workload over 5 years
3. Performance will vary by capacity point, or with the changes in useable capacity. Consult product manual for further details. All performance measurements are in full sustained mode and are peak values. Preliminary and subject to change. 1MiB=1,048,576 bytes or 220, 1KiB= 1,024 bytes or 210.
4. Average Write Latency at 4KiB QD=1
5. MTBF and AFR targets are based on a sample population and are estimated by statistical measurement and acceleration algorithms under median operating conditions. MTBF and AFR rating do not predict an individual drive’s reliability and do not constitute a warranty.
6. The warranty for the product will expire on the earlier of (i) the date when the flash media has reached one-percent (1%) of its remaining life or (ii) the expiration of the time period associated with the Product.
