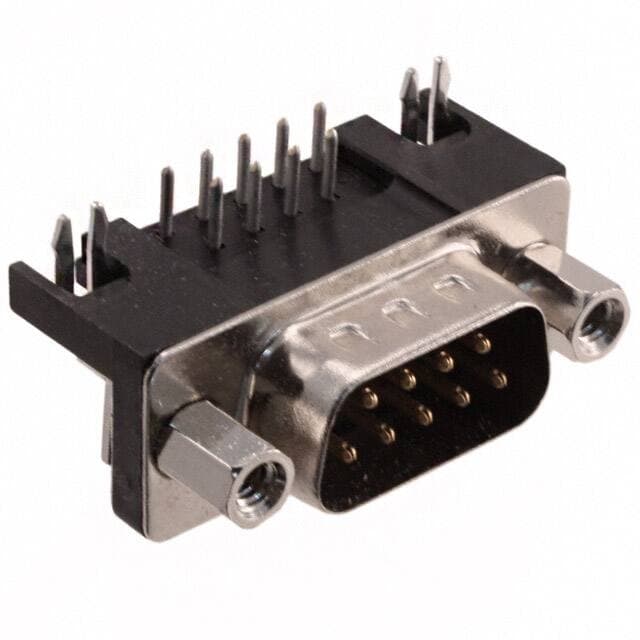

HARTING 09681637813

Manufacturer No:

09681637813

Manufacturer:

HARTING

Package:

Description:

D-Sub Plug, Male Pins 9-Position Male Signal Solder 1 DE E Through Hole, Right Angle Copper Alloy Steel

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

09681637813 information

HARTING 09681637813 technical specifications, attributes, parameters and parts with similar specifications to HARTING 09681637813.

Type
Parameter

Factory Lead Time
4 Weeks

Contact Material
Copper Alloy

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Dielectric Material
Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Housing Material
Polybutylene

Shell Material, Finish
Steel

Operating Temperature
-55°C~125°C

Packaging
Bulk

Feature
Board Lock, Grounding Indents

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Plug, Male Pins

Number of Positions
9

Number of Rows
2

Gender
Male

Subcategory
D Type Connectors

Contact Finish - Mating
NOT SPECIFIED

MIL Conformance
NO

DIN Conformance
YES

IEC Conformance
YES

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
6.5A

Total Number of Contacts
9

Orientation
Right Angle

Depth
18.2mm

Current Rating
5A

Shell Finish
TIN

Reference Standard
UL

Reliability
COMMERCIAL

Number Of PCB Rows
2

PCB Contact Pattern
STAGGERED

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Empty Shell
NO

Flange Feature
Mating Side, Female Screwlock (4-40)

Body/Shell Style
RECEPTACLE

Connector Style
D-Sub

Number of Ports
1

Insertion Force-Max
3.336 N

Withdrawl Force-Min
3.336 N

Contact Form
Stamped

Shell Size, Connector Layout
1 DE E

Backset Spacing
0.318 (8.08mm)

Download datasheets and manufacturer documentation for HARTING 09681637813.

ConflictMineralStatement:

hartingelektronik-09454521910-conflictmineralstatement-8953.pdf

09681637813 Overview

It comes in Plug, Male Pins packaging.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Bulk case for packaging the product.A variety of tasks can be managed through its 1 ports.In many ways, its Board Lock, Grounding Indents feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -55°C~125°C Operating Temperature.
