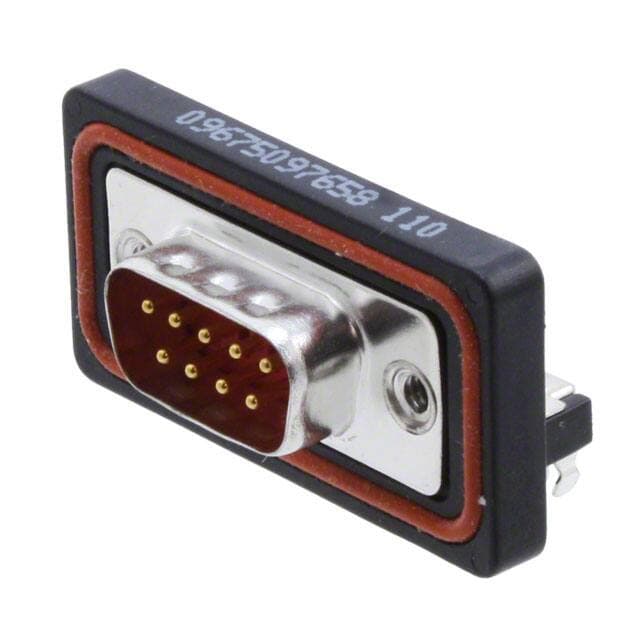

HARTING 09675097658

Manufacturer No:

09675097658

Manufacturer:

HARTING

Package:

Metal

Description:

D-Sub Plug, Male Pins 9-Position Male Signal Solder 1 DE E Panel Mount, Through Hole, Right Angle Gold or Gold-Palladium Brass, Tin Plated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

09675097658 information

HARTING 09675097658 technical specifications, attributes, parameters and parts with similar specifications to HARTING 09675097658.

Type
Parameter

Factory Lead Time
15 Weeks

Contact Plating
Gold

Mount
Through Hole

Mounting Type
Panel Mount, Through Hole, Right Angle

Package / Case
Metal

Dielectric Material
Thermoplastic, Glass Filled

Housing Material
Glass

Shell Material, Finish
Brass, Tin Plated

Contact Materials
Copper Alloy

Operating Temperature
-25°C~70°C

Packaging
Bulk

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Plug, Male Pins

Number of Positions
9

Number of Rows
2

Gender
Male

MIL Conformance
NO

DIN Conformance
YES

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Pitch
2.74mm

Total Number of Contacts
9

Orientation
Right Angle

Ingress Protection
IP67 - Dust Tight, Waterproof

Depth
19mm

Current Rating
5A

Shell Finish
NICKEL

Contact Finish
Gold or Gold-Palladium

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Empty Shell
NO

Flange Feature
Housing/Shell (4-40)

Connector Style
D-Sub

Number of Ports
1

Contact Form
Machined

Shell Size, Connector Layout
1 DE E

Backset Spacing
0.228 (5.80mm)

Features
Board Lock, Grounding Indents, Mounting Brackets

Length
40mm

Width
18.84mm

Contact Finish Thickness
30.0μin 0.76μm

Material Flammability Rating
UL94 V-0

Download datasheets and manufacturer documentation for HARTING 09675097658.

ConflictMineralStatement:

hartingelektronik-09454521910-conflictmineralstatement-8953.pdf

09675097658 Overview

It comes in Plug, Male Pins packaging.There is a mounting type of Panel Mount, Through Hole, Right Angle for this device.It is necessary to use a Bulk case for packaging the product.The packaging with the Metal contains a device.A variety of tasks can be managed through its 1 ports.Through Hole is used to mount the part.In this case, the device operates at -25°C~70°C Operating Temperature.
