HARTING 09664626817

Manufacturer No:

09664626817

Manufacturer:

HARTING

Package:

Description:

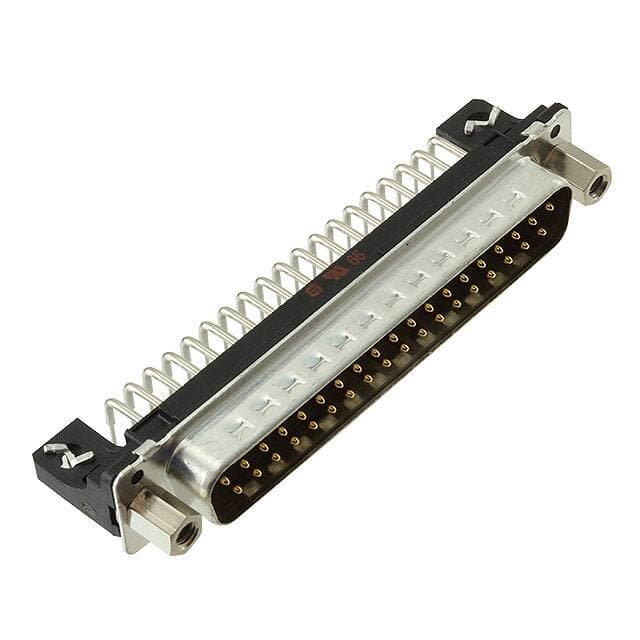

D-Sub Plug, Male Pins 37-Position Male Signal Solder 4 DC C Through Hole, Right Angle Copper Alloy Steel

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

09664626817 information

HARTING 09664626817 technical specifications, attributes, parameters and parts with similar specifications to HARTING 09664626817.

Type
Parameter

Factory Lead Time
15 Weeks

Contact Material
Copper Alloy

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Dielectric Material
Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Housing Material
PBT

Shell Material, Finish
Steel

Operating Temperature
-55°C~125°C

Packaging
Bulk

Feature
Board Lock, Grounding Indents

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Plug, Male Pins

Number of Positions
37

Number of Rows
2

Gender
Male

HTS Code
8536.69.40.30

Subcategory
D Type Connectors

Contact Finish - Mating
NOT SPECIFIED

MIL Conformance
NO

DIN Conformance
YES

Filter Feature
NO

Contact Type
Signal

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
7.5A

Pitch
2.76mm

Total Number of Contacts
37

Orientation
Right Angle

Depth
20.2mm

Current Rating
6.5A

Shell Finish
TIN

Reference Standard
UL

Number Of PCB Rows
2

PCB Contact Pattern
STAGGERED

UL Flammability Code
94V-0

Empty Shell
NO

Contact Resistance
10mOhm

Insulation Resistance
10000000000Ohm

Flange Feature
Mating Side, Female Screwlock (4-40)

Body/Shell Style
RECEPTACLE

Dielectric Withstanding Voltage
1000VAC V

Connector Style
D-Sub

Insertion Force-Max
3.336 N

Download datasheets and manufacturer documentation for HARTING 09664626817.

ConflictMineralStatement:

hartingelektronik-09454521910-conflictmineralstatement-8953.pdf

09664626817 Overview

Packaging for this item is Plug, Male Pins.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Bulk case is used.It is more powerful in many ways due to its Board Lock, Grounding Indents feature.It is mounted by Through Hole.It operates at an operating temperature of -55°C~125°C.
