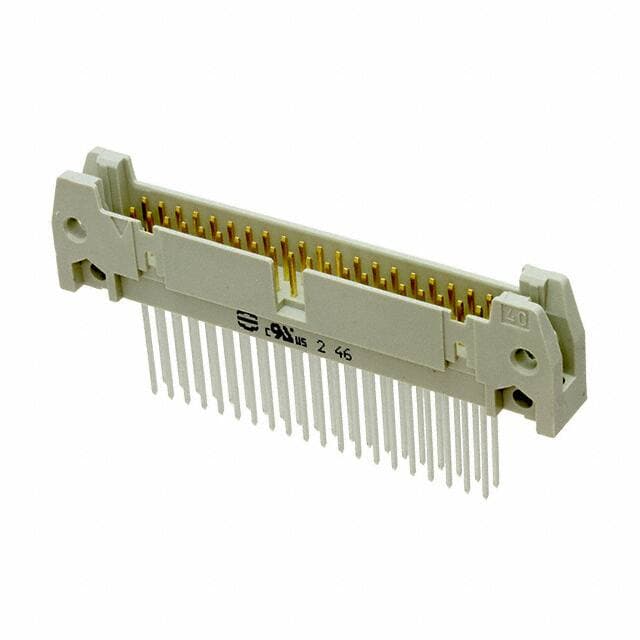

HARTING 09185406927
Manufacturer No:
09185406927
Manufacturer:
Package:
Description:
SEK Series 2-Row Header Wire Wrap Copper Alloy Bulk Through Hole NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled 40-Position Board to Cable/Wire 0.681 17.30mm Height
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
09185406927 information
HARTING 09185406927 technical specifications, attributes, parameters and parts with similar specifications to HARTING 09185406927.
- Type
- Parameter
- Factory Lead Time
- 7 Weeks
- Contact Material
- Copper Alloy
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Contact Shape
- Square
- Insulation Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Operating Temperature
- -55°C~125°C
- Packaging
- Bulk
- Series
- SEK
- Feature
- Keying Slot, Mounting Flange
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Wire Wrap
- ECCN Code
- EAR99
- Connector Type
- Header
- Number of Positions
- 40
- Color
- Beige
- Number of Rows
- 2
- Additional Feature
- STANDARDS: IEC 60603-1; DIN EN 60603-13, POLARIZED
- Fastening Type
- Push-Pull
- Contact Finish - Mating
- NOT SPECIFIED
- MIL Conformance
- NO
- DIN Conformance
- YES
- Filter Feature
- NO
- Contact Type
- Male Pin
- Mixed Contacts
- NO
- Option
- GENERAL PURPOSE
- Insulation Height
- 0.681 17.30mm
- Style
- Board to Cable/Wire
- Number of Positions Loaded
- All
- Current Rating
- 2A
- Pitch - Mating
- 0.100 2.54mm
- Insulation Color
- Gray
- Number of Conductors
- ONE
- Reference Standard
- UL
- Reliability
- COMMERCIAL
- Row Spacing - Mating
- 0.100 (2.54mm)
- Contact Length - Post
- 0.591 15.00mm
- Shrouding
- Shrouded - 4 Wall
- Number Of PCB Rows
- 2
- Contact Finish - Post
- Tin
- Contact Length - Mating
- 0.228 5.80mm
- PCB Contact Pattern
- RECTANGULAR
- Body Breadth
- 0.331 inch
- UL Flammability Code
- 94V-0
- Body Depth
- 0.681 inch
Download datasheets and manufacturer documentation for HARTING 09185406927.
ConflictMineralStatement:
09185406927 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the SEK Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as STANDARDS: IEC 60603-1; DIN EN 60603-13, POLARIZED, to name a few.A number of features make the Keying Slot, Mounting Flange feature more powerful.Through Hole represents the mounting point for the part.-55°C~125°C Operating Temperature is the default operating temperature for the device.
09185406927 Features
SEK series
09185406927 Applications
There are a lot of HARTING
09185406927 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
