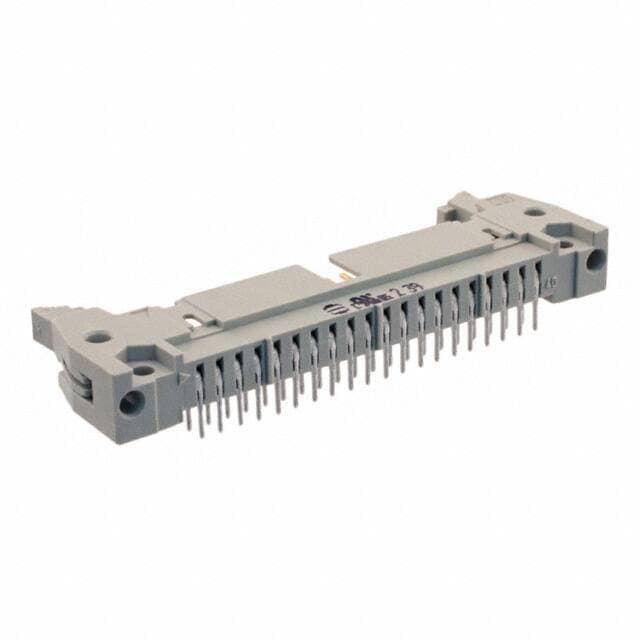

HARTING 09185406903
Manufacturer No:
09185406903
Manufacturer:
Package:
Description:
SEK Series 2-Row Header Solder Copper Alloy Tray Through Hole, Right Angle NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled Board to Cable/Wire 0.335 8.51mm Height
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
09185406903 information
HARTING 09185406903 technical specifications, attributes, parameters and parts with similar specifications to HARTING 09185406903.
- Type
- Parameter
- Factory Lead Time
- 4 Weeks
- Contact Material
- Copper Alloy
- Contact Plating
- Gold
- Mount
- Through Hole
- Mounting Type
- Through Hole, Right Angle
- Contact Shape
- Square
- Insulation Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Operating Temperature
- -55°C~125°C
- Packaging
- Tray
- Series
- SEK
- Feature
- Keying Slot, Mounting Flange
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- ECCN Code
- EAR99
- Connector Type
- Header
- Color
- Grey
- Number of Rows
- 2
- Additional Feature
- STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED
- Fastening Type
- Latch Lock/Eject Hooks, Long
- Voltage - Rated DC
- 350V
- Contact Finish - Mating
- NOT SPECIFIED
- MIL Conformance
- NO
- IEC Conformance
- YES
- Filter Feature
- NO
- Contact Type
- Male Pin
- Mixed Contacts
- NO
- Option
- GENERAL PURPOSE
- Orientation
- Right Angle
- Depth
- 25.75mm
- Insulation Height
- 0.335 8.51mm
- Style
- Board to Cable/Wire
- Number of Positions Loaded
- All
- Current Rating
- 2A
- Pitch - Mating
- 0.100 2.54mm
- Insulation Color
- Gray
- Number of Conductors
- ONE
- Reference Standard
- UL
- Voltage - Rated AC
- 350V
- Reliability
- COMMERCIAL
- Row Spacing - Mating
- 0.100 (2.54mm)
- Contact Length - Post
- 0.114 2.90mm
- Shrouding
- Shrouded - 4 Wall
- Number Of PCB Rows
- 2
- Lead Pitch
- 2.54mm
- Contact Length - Mating
- 0.240 6.10mm
Download datasheets and manufacturer documentation for HARTING 09185406903.
ConflictMineralStatement:
09185406903 Overview
Packaging is in the form of Header.This device has a Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the SEK Series.Other features include STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED, to name just a few.Several benefits come from the Keying Slot, Mounting Flange feature.There is a mounting hole at Through Hole.Devices operate at -55°C~125°C operating temperatures.
09185406903 Features
SEK series
09185406903 Applications
There are a lot of HARTING
09185406903 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
