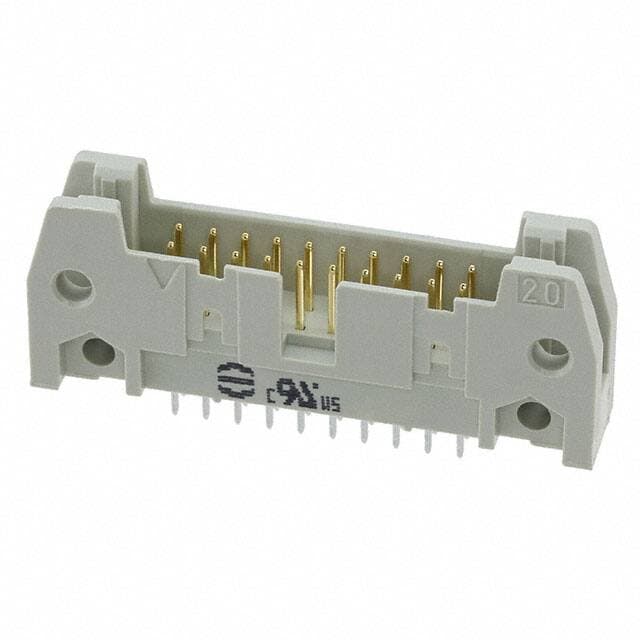

HARTING 09185206924
Manufacturer No:
09185206924
Manufacturer:
Package:
Description:
SEK Series 2-Row Header Solder Copper Alloy Bulk Through Hole NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled 20-Position Board to Cable/Wire 0.681 17.30mm Height
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
09185206924 information
HARTING 09185206924 technical specifications, attributes, parameters and parts with similar specifications to HARTING 09185206924.
- Type
- Parameter
- Factory Lead Time
- 7 Weeks
- Contact Material
- Copper Alloy
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Contact Shape
- Square
- Insulation Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Housing Material
- Polyester
- Operating Temperature
- -55°C~125°C
- Packaging
- Bulk
- Series
- SEK
- Feature
- Keying Slot, Mounting Flange
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- ECCN Code
- EAR99
- Connector Type
- Header
- Number of Positions
- 20
- Color
- Grey
- Number of Rows
- 2
- Additional Feature
- STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
- HTS Code
- 8536.69.40.40
- Fastening Type
- Push-Pull
- Contact Finish - Mating
- NOT SPECIFIED
- DIN Conformance
- YES
- IEC Conformance
- YES
- Filter Feature
- NO
- Contact Type
- Male Pin
- Mixed Contacts
- NO
- Option
- GENERAL PURPOSE
- Orientation
- Straight
- Insulation Height
- 0.681 17.30mm
- Style
- Board to Cable/Wire
- Number of Positions Loaded
- All
- Current Rating
- 2A
- Pitch - Mating
- 0.100 2.54mm
- Insulation Color
- Gray
- Number of Conductors
- ONE
- Reference Standard
- UL
- Reliability
- COMMERCIAL
- Row Spacing - Mating
- 0.100 (2.54mm)
- Contact Length - Post
- 0.114 2.90mm
- Shrouding
- Shrouded - 4 Wall
- Number Of PCB Rows
- 2
- Contact Finish - Post
- Tin
- Contact Length - Mating
- 0.240 6.10mm
- PCB Contact Pattern
- RECTANGULAR
Download datasheets and manufacturer documentation for HARTING 09185206924.
ConflictMineralStatement:
09185206924 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the SEK Series of products.In addition, there are other features such as STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED, to mention only a few.Its Keying Slot, Mounting Flange feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -55°C~125°C Operating Temperature.
09185206924 Features
SEK series
09185206924 Applications
There are a lot of HARTING
09185206924 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
