HARTING 09032966825
Manufacturer No:
09032966825
Manufacturer:
Package:
Description:

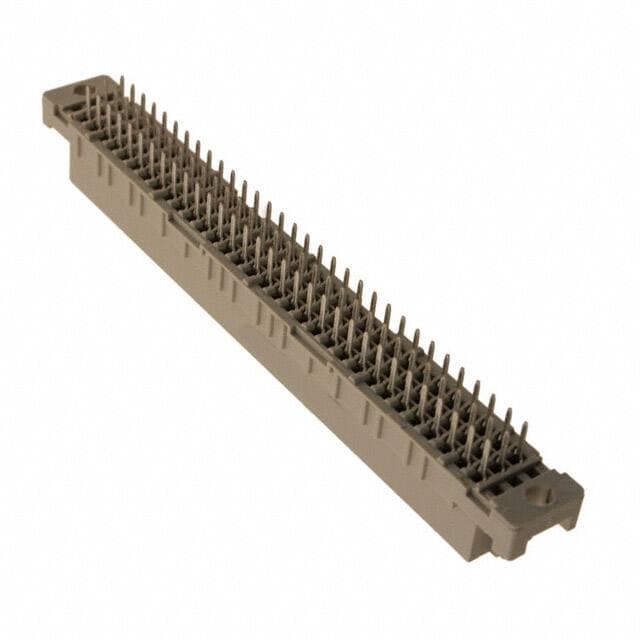

Conn DIN 41612 F 96 POS 2.54mm Solder ST Thru-Hole
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
09032966825 Information
HARTING 09032966825 technical specifications, attributes, parameters and parts with similar specifications to HARTING 09032966825.
- Type
- Parameter
- Factory Lead Time
- 9 Weeks
- Contact Plating
- Gold
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Material
- Glass, Polyester
- Housing Material
- Thermoplastic
- Weight
- 14.680007g
- Material - Insulation
- Thermoplastic, Glass Filled
- Contact Materials
- Copper
- Packaging
- Bulk
- Type
- Parameter
- Series
- DIN 41612
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- ECCN Code
- EAR99
- Connector Type
- Receptacle, Female Sockets
- Number of Positions
- 96
- Max Operating Temperature
- 125°C
Download datasheets and manufacturer documentation for HARTING 09032966825.
ConflictMineralStatement:
Product Description:
The HARTING 09032966825 is a high-quality, DIN 41612 compliant, backplane connector designed for use in a variety of applications. This receptacle, female socket connector features a grey thermoplastic housing with copper contacts plated with gold, ensuring excellent electrical performance and durability.
Features:
- Connector Type: Receptacle, Female Sockets
- Contact Materials: Copper
- Contact Plating: Gold
- Contact Resistance: 15 MOhm
- Current Rating: 2A
- DIN Conformance: YES
- Depth: 10.5mm
- Height: 16.1mm
- Hole Diameter: 1 mm
- Housing Material: Thermoplastic
- Insulation Resistance: 1000000000000 Ohm
- Lead Length: 4mm
- Lead Pitch: 2.54mm
- Length: 10.5mm
- Level, Class: 2
- Material - Insulation: Thermoplastic, Glass Filled
- Max Operating Temperature: 125°C
- Min Operating Temperature: -55°C
- Mounting Type: Through Hole
- Number of Positions: 96
- Number of Rows: 3
- Option: GENERAL PURPOSE
- Orientation: Straight
- Packaging: Bulk
- Part Status: Active
- Pbfree Code: yes
- Pitch: 0.100 2.54mm
- Polarization Key: ENDS
- REACH SVHC: No SVHC
- Rated Current (Signal): 2A
- RoHS Status: ROHS3 Compliant
- Series: DIN 41612
- Style: C
- Termination: Solder
- Test Voltage: 1kV
- Total Number of Contacts: 96
- UL Flammability Code: 94V-0
- Voltage - Rated DC: 250V
- Weight: 14.680007g
- Width: 94.9mm
- Working Voltage: 250V
Applications:
- Primary Applications: High-reliability applications such as industrial automation, medical devices, and aerospace systems.
- Secondary Applications: General-purpose applications such as data centers, telecommunications, and industrial control systems.
Alternative Parts:
- Alternative Part Number: 09032966826
- Alternative Part Description: DIN 41612, receptacle, female sockets, copper contacts, gold plating, 2A current rating, 250V working voltage.
Embedded Modules:
- Embedded Module: HARTING's DIN 41612 backplane connector is used in various embedded modules, including industrial control systems, medical devices, and aerospace systems.
FAQs:
- Q: What is the maximum operating temperature of this connector?
-
A: The maximum operating temperature is 125°C.
-
Q: Is this connector RoHS compliant?
-
A: Yes, this connector is ROHS3 compliant.
-
Q: What is the contact resistance of this connector?
-
A: The contact resistance is 15 MOhm.
-
Q: Is this connector suitable for high-reliability applications?
-
A: Yes, this connector is designed for high-reliability applications and is suitable for use in industrial automation, medical devices, and aerospace systems.
-
Q: What is the termination type of this connector?
-
A: The termination type is solder.
-
Q: Is this connector Pbfree?
- A: Yes, this connector is Pbfree.
