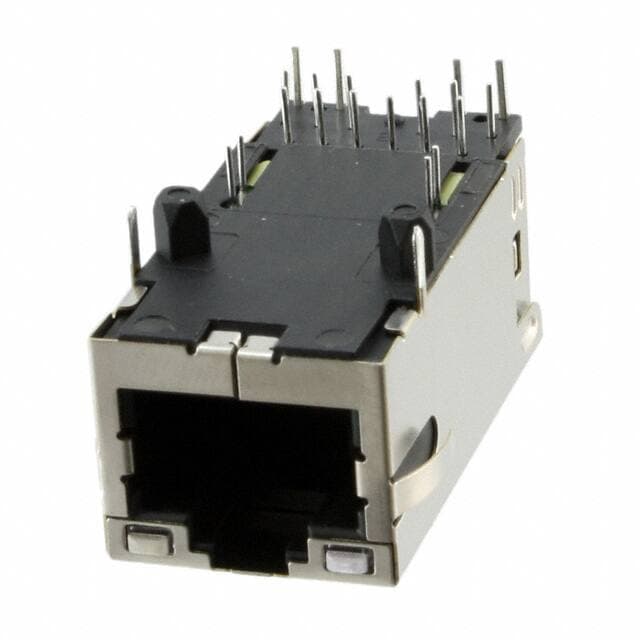

BEL 0826-1X1T-GH-F

Manufacturer No:

0826-1X1T-GH-F

Manufacturer:

BEL

Package:

Description:

CONN MAGJACK 1PORT 1000 BASE-T

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

0826-1X1T-GH-F information

BEL 0826-1X1T-GH-F technical specifications, attributes, parameters and parts with similar specifications to BEL 0826-1X1T-GH-F.

Type
Parameter

Factory Lead Time
14 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Housing Material
Polyamide (PA), Nylon

Shield Material
Copper Alloy

Manufacturer Package Identifier
0826-1X1T-GH-F

Contact Materials
Copper Alloy

Voltage Rated
94V

Operating Temperature
-40°C~85°C

Packaging
Tray

Series
MagJack®

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder

ECCN Code
EAR99

Connector Type
RJ45

Color
Green, Orange, Yellow

Applications
10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)

Gender
Female

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
YES

Option
GENERAL PURPOSE

Orientation
90° Angle (Right)

Shielding
Shielded, EMI Finger

Depth
32.77mm

Current Rating
720mA

Shell Finish
NICKEL

Contact Finish
Gold

Number of Contacts
20

UL Flammability Code
94V-0

Empty Shell
NO

Number of Ports
1

LED Color
Green, Orange - Yellow

Tab Direction
Up

Number of Cores per Jack
8

Features
Board Guide

Height
16.91mm

Length
16.31mm

Contact Finish Thickness
50.0μin 1.27μm

Height Above Board
0.536 13.61mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for BEL 0826-1X1T-GH-F.

PCN Design/Specification:

belfuseinc-08261x1t43f-pcndesignspecification-9946.pdf

belfuseinc-08261g1t23f-pcndesignspecification-9784.pdf

Description:
Bel Fuse Modular Connectors - Jacks With Magnetics 0826-1X1T-GH-F is a single port 1000 Base-T magnetics jack. It is designed to provide reliable and secure connections for Ethernet applications. It is RoHS compliant and features a low profile design for easy installation.

Features:
• Single port 1000 Base-T magnetics jack
• RoHS compliant
• Low profile design for easy installation
• High performance and reliable connections
• Compatible with Cat 5e and Cat 6 cables
• Shielded design for EMI protection
• Durable construction for long-term use

Applications:
Bel Fuse Modular Connectors - Jacks With Magnetics 0826-1X1T-GH-F is suitable for a wide range of Ethernet applications, such as networking, industrial automation, and consumer electronics. It is ideal for use in high-speed data transmission applications, such as Gigabit Ethernet.
