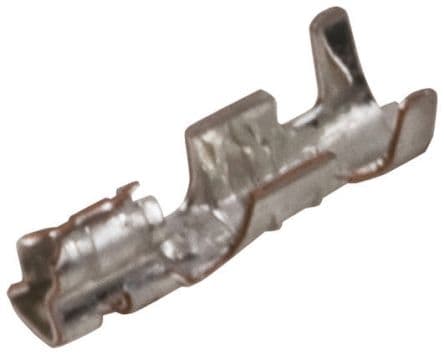

Molex 08-70-1039

Manufacturer No:

08-70-1039

Manufacturer:

Molex

Package:

Description:

Description: Wire Terminal, 0.33mm2,

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

08-70-1039 information

Molex 08-70-1039 technical specifications, attributes, parameters and parts with similar specifications to Molex 08-70-1039.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
MOLEX LLC

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8536.90.40.00

Factory Lead Time
25 Weeks, 3 Days

Samacsys Manufacturer
Molex

Additional Feature
CONTACT FINISH: TIN

Assembly Item Name
CONTACT

Cable Entry-Max
0.0748 inch

Cable Entry-Min
0.0452 inch

Connector Support Type
CONNECTOR ACCESSORY

Contact Design
CHAIN

Contact Gender
FEMALE

Contact Style
BELLOWED CONTACT

DIN Conformance
NO

IEC Conformance
NO

MIL Conformance
NO

Material
PHOSPHOR BRONZE

Mounting Style
STRAIGHT

Terminal Length
0.1377 inch

Terminal Type
CRIMP

Wire Size-Max
22 AWG

Wire Size-Min
28 AWG

Download datasheets and manufacturer documentation for Molex 08-70-1039.

Datasheets:

MOLE-S-A0011123520-1.pdf

The Molex 08-70-1039 Contact is a SPOX BMI 5263 Series Socket Connector designed for 28 AWG and 22 AWG wire. It is a crimp-style connector made of brass for superior durability and reliability. This connector is ideal for a variety of applications, including automotive, industrial, and consumer electronics. It features a low-profile design for easy installation and a secure connection. The Molex 08-70-1039 Contact is a reliable and cost-effective solution for your wiring needs.
