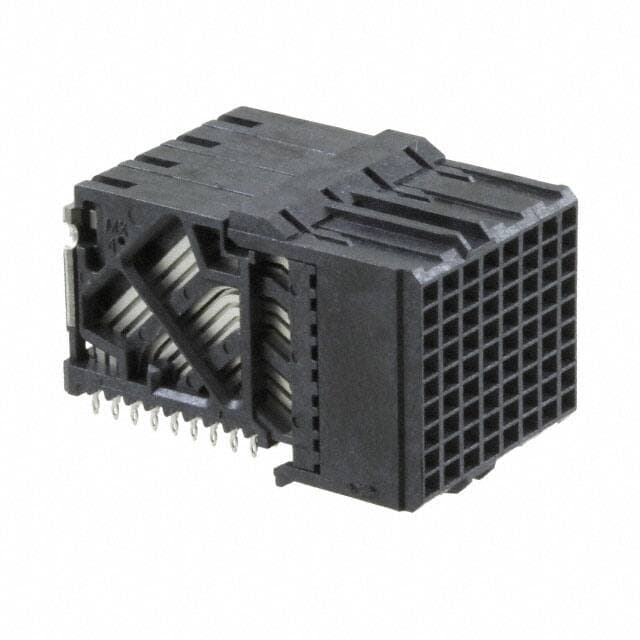

MOLEX 0761701038

Manufacturer No:

0761701038

Manufacturer:

MOLEX

Package:

Description:

Description: IMPACT DC 3X8 OPEN SN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

0761701038 information

MOLEX 0761701038 technical specifications, attributes, parameters and parts with similar specifications to MOLEX 0761701038.

Type
Parameter

Pbfree Code
Yes

Rohs Code
Yes

Part Life Cycle Code
Active

Ihs Manufacturer
MOLEX LLC

Reach Compliance Code
compliant

Body Breadth
0.524 inch

Body Depth
0.949 inch

Body Length
0.598 inch

Body/Shell Style
RECEPTACLE

Connector Type
BOARD CONNECTOR

Contact Finish Termination
MATTE TIN OVER NICKEL

Contact Gender
FEMALE

Contact Pattern
RECTANGULAR

Contact Style
BLADE PIN-SKT

Filter Feature
NO

Insulator Material
POLYETHYLENE

JESD-609 Code
e3

Mating Contact Pitch
0.075 inch

Mating Contact Row Spacing
0.053 inch

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Mixed Contacts
NO

Mounting Option 1
LOCKING

Mounting Style
RIGHT ANGLE

Mounting Type
BOARD

Number Of PCB Rows
9

Number of Rows Loaded
9

Operating Temperature-Max
85 °C

Operating Temperature-Min
-55 °C

Option
GENERAL PURPOSE

PCB Contact Pattern
RECTANGULAR

PCB Contact Row Spacing
1.35 mm

Plating Thickness
30u inch

Rated Current (Signal)
0.75 A

Reference Standard
UL

Terminal Length
0.047 inch

Terminal Pitch
1.9 mm

Termination Type
PRESS FIT

Total Number of Contacts
72

UL Flammability Code
94V-0

Download datasheets and manufacturer documentation for MOLEX 0761701038.

Datasheets:

MOLE-S-A0010947122-1.pdf

0761701038 Overview

The product is packaged in Receptacle, Female Sockets.This device is mounted in the Board Edge, Through Hole, Right Angle position.It has been determined that a Tray case is necessary to package the product.There is a product in the Impact 76170 Series.As a result, the device runs at -55°C~85°C Operating Temperature.
