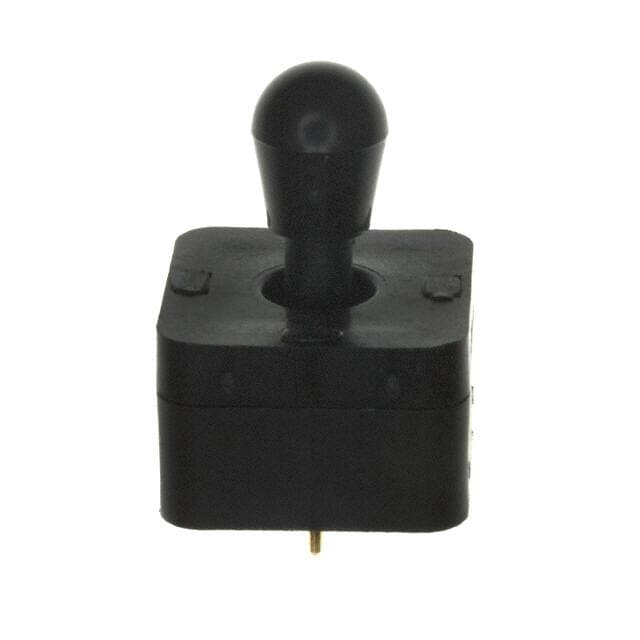

Grayhill Inc. 04A-B01
Manufacturer No:
04A-B01
Manufacturer:
Package:
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
04A-B01 information
Grayhill Inc. 04A-B01 technical specifications, attributes, parameters and parts with similar specifications to Grayhill Inc. 04A-B01.
- Type
- Parameter
- Factory Lead Time
- 16 Weeks
- Contact Material
- Phosphor Bronze
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Actuator Material
- Polyester
- Terminal Material
- BRASS
- Operating Temperature
- -40°C~85°C
- Series
- 04
- Published
- 2010
- JESD-609 Code
- e4
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- PC Pins
- ECCN Code
- EAR99
- Type
- Navigation Switch, 2 - Axis
- HTS Code
- 8536.50.90.33
- Current Rating (Amps)
- 250mA AC
- Orientation
- Straight
- Depth
- 21.59mm
- Current Rating
- 250mA
- Output
- Digital (Mechanical Switch)
- Contact Finish
- Gold
- Termination Style
- PC Pin
- Actuator Type
- Bat
- Switch Function
- 4-Way Directional
- Contact Resistance
- 25mOhm
- Insulation Resistance
- 1GOhm
- Contact Current(DC)-Max
- 0.25A
- Sealing
- EPOXY
- Max Voltage Rating (AC)
- 220V
- Max Current Rating
- 250mA
- Dielectric Withstanding Voltage
- 500VAC V
- Electrical Life
- 500,000 Cycles
- Throw Configuration
- 4PST
- Contact Current Rating
- 250mA
- Contact Current(AC)-Max
- 0.125A
- Contact (AC) Max Rating R Load
- 0.125A@220VAC
- Contact Timing
- MAKE-BEFORE-BREAK
- Contact (DC) Max Rating R Load
- .25A@115VDC
- Sensing Method
- Hall Effect
- PCB Hole Count
- 5
- Actuator Color
- BLACK
- Contact Function
- OFF-ON
- Body Color
- BLACK
- Length
- 21.59mm
- Body Height
- 13.97mm
Download datasheets and manufacturer documentation for Grayhill Inc. 04A-B01.
