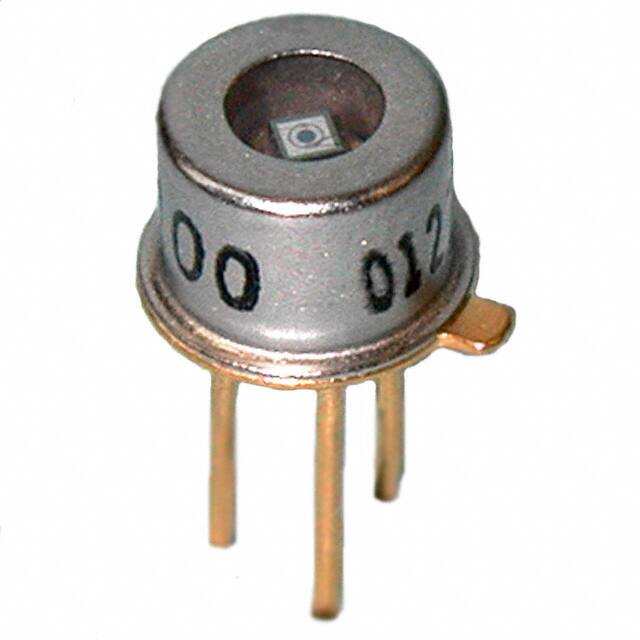

Advanced Photonix 012-70-62-541

Manufacturer No:

012-70-62-541

Manufacturer:

Advanced Photonix

Package:

TO-46-3 Lens Top Metal Can

Description:

Through Hole -40°C~85°C Bulk TO-46-3 Lens Top Metal Can 280V 0.30mm Dia 700ps

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

012-70-62-541 information

Advanced Photonix 012-70-62-541 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix 012-70-62-541.

Type
Parameter

Mounting Type
Through Hole

Package / Case
TO-46-3 Lens Top Metal Can

Operating Temperature
-40°C~85°C

Packaging
Bulk

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Response Time
700ps

Voltage - DC Reverse (Vr) (Max)
280V

Spectral Range
400nm ~ 1100nm

Active Area
0.30mm Dia

Current - Dark (Typ)
2nA

Responsivity @ nm
47 A/W @ 830nm

Download datasheets and manufacturer documentation for Advanced Photonix 012-70-62-541.

012-70-62-541 Overview

To protect these photodiodes from damage, the Bulk is used. It is necessary to enclose the photodiodes in TO-46-3 Lens Top Metal Can packages for safety purposes. Continuously reverse-biasing photodiodes can withstand 280V voltage.

012-70-62-541 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~85°C
Packaging: Bulk
Spectral Range: 400nm ~ 1100nm
Response Time: 700ps
Responsivity @ nm: 47 A/W @ 830nm

012-70-62-541 Applications

There are a lot of Advanced Photonix
012-70-62-541 Photodiodes applications.

High speed photo detector
Infrared remote control
Infrared data transmission
Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
