In the world of "Little Logic," sometimes you need more than just a simple gate. You need control.
The Texas Instruments SN74LVC1G240DRYR is a workhorse component found in everything from smartphones to industrial control boards. It combines a high-current driver, a logic inverter, and a digital switch into one tiny package.
But why use a "3-State" buffer? And what makes the "DRY" package special? This guide breaks down the datasheet and applications of this essential logic chip.
Table of Contents
- 1. Decoding the Part Number: Specs & Features
- 2. How It Works: Inverting with Control
- 3. The "DRY" Package Advantage (SON-6)
- 4. Key Applications: Voltage Translation & Isolation
- 5. Conclusion
1. Decoding the Part Number: Specs & Features
TI part numbers are descriptive. Here is the breakdown for SN74LVC1G240DRYR:
The Breakdown Matrix
- SN74: Standard Prefix for TI Commercial Logic.
- LVC: Low-Voltage CMOS. Optimized for 1.65V to 5.5V operation.
- 1G: Single Gate. Contains only one logic function per chip.
- 240: Function Code for Inverting Buffer / Driver with 3-State Output.
- DRY: Package Code for SON-6 (Small Outline No-lead).
- R: Tape & Reel packaging (for automated assembly).
Key Specifications
| Feature | Specification | Impact |
|---|---|---|
| Vcc Range | 1.65V to 5.5V | Extremely flexible; works with 1.8V, 3.3V, and 5V logic. |
| Drive Strength | 32 mA (@ 4.5V) | High current drive; can directly drive LEDs or Relays. |
| Input Tolerance | 5.5V | Inputs can handle 5V even when Vcc is 3.3V (Down Translation). |
| Ioff Protection | Yes | Output is disabled when Vcc = 0V (prevents backflow current). |
| Propagation Delay | ~4 ns | Very fast switching speed. |
2. How It Works: Inverting with Control
The SN74LVC1G240 is not just a NOT gate. It has an Output Enable ($\overline{OE}$) pin.
- The Inverter Part: Whatever logic level enters Input A, the opposite comes out of Output Y.
- The 3-State Part: This action only happens if $\overline{OE}$ is LOW. If $\overline{OE}$ is HIGH, the output turns "off".
The Truth Table
| Control Input ($\overline{OE}$) | Data Input (A) | Output (Y) | State |
|---|---|---|---|
| L | L | H | Active (Inverting) |
| L | H | L | Active (Inverting) |
| H | X | Z | High Impedance (Off) |
Understanding "High-Z"
High-Z (High Impedance) means the pin is effectively disconnected from the circuit. It is neither Logic High (Vcc) nor Logic Low (GND).
- Why is this useful? It allows multiple chips to share the same data wire (bus) without fighting each other (short circuiting). Only one chip is enabled ($\overline{OE}$ Low) at a time.
3. The "DRY" Package Advantage (SON-6)

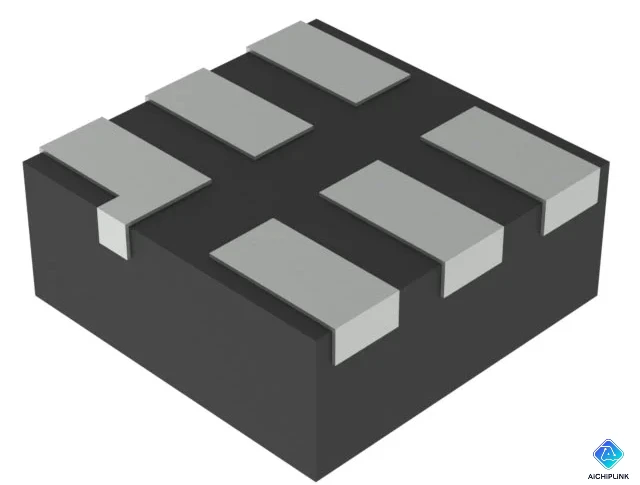

The DRY suffix indicates the SON-6 (Small Outline No-lead) package.
- Size: 1.45 mm x 1.00 mm.
- Height: 0.6 mm.
- Footprint: Significantly smaller than the standard SOT-23 (DBV) package.
Why choose DRY? It is ideal for space-constrained devices like smartwatches, earbuds, or dense SSD controller boards. However, note that it is harder to hand-solder or rework than SOT-23 due to the pads being underneath the chip body.
4. Key Applications: Voltage Translation & Isolation
5V to 3.3V Down-Translation
Because the inputs are 5.5V Tolerant (even when Vcc is lower), you can power this chip with 3.3V but send 5V signals into Input A.
- Result: The output will swing between 0V and 3.3V. This safely converts a 5V sensor signal for a 3.3V microcontroller input.
Ioff Signal Isolation
The Ioff feature is critical for power sequencing. If you turn off power to the SN74LVC1G240 (Vcc = 0V), the inputs and outputs enter a high-impedance state.
- Benefit: They will not drain current from connected live circuits via protection diodes. This is perfect for isolating different power domains on a complex board.
5. Conclusion
The SN74LVC1G240DRYR is a fundamental building block for modern electronics. Whether you need to fix a logic polarity issue, isolate a noisy signal, or translate voltages in a tiny wearable device, this SON-6 chip delivers robust performance with minimal board space.
Sourcing Logic Components Building a dense PCB? Visit Aichiplink.com to search for SN74LVC1G240DRYR and other TI Little Logic gates.
Written by Jack Elliott from AIChipLink.
AIChipLink, one of the fastest-growing global independent electronic components distributors in the world, offers millions of products from thousands of manufacturers, and many of our in-stock parts is available to ship same day.
We mainly source and distribute integrated circuit (IC) products of brands such as Broadcom, Microchip, Texas Instruments, Infineon, NXP, Analog Devices, Qualcomm, Intel, etc., which are widely used in communication & network, telecom, industrial control, new energy and automotive electronics.
Empowered by AI, Linked to the Future. Get started on AIChipLink.com and submit your RFQ online today!
Frequently Asked Questions
What is the SN74LVC1G240 used for?
It is a single-channel inverting buffer with 3-state output used for signal control and isolation.
What does “3-state output” mean?
The output can be High, Low, or High-Impedance (High-Z) when disabled.
What voltage levels does SN74LVC1G240 support?
It operates from 1.65V to 5.5V and supports 5V-tolerant inputs.
What is the DRY package?
DRY refers to a SON-6 ultra-small package, ideal for space-constrained designs.
Can SN74LVC1G240 be used for voltage level translation?
Yes. It is commonly used for 5V-to-3.3V down-translation.
