A field-programmable gate array (FPGA) is a chip. It lets engineers make custom digital circuits after it is made. "Field programmable" means you can reprogram the chip later. This can happen even after it leaves the factory. FPGAs are special because they are flexible. They can do many jobs in modern electronics. More people want FPGA technology now. The market size may almost double in five years. This is because FPGAs are used in AI, 5G, cars, and data centers. These chips help make devices faster and smarter in many industries.
Key Takeaways
- FPGAs are special chips. Engineers can program and reprogram them. They can do many digital jobs after they are made. Their main strengths are flexibility and reprogrammability. These features save time and money. They let people make quick updates and custom designs. FPGAs use programmable logic blocks and interconnects. These help build custom circuits. The circuits can run many jobs at the same time. Programming FPGAs needs hardware description languages like VHDL or Verilog. These languages tell the chip how to work. FPGAs are used in many industries. Some examples are telecom, automotive, and aerospace. They help make fast, adaptable, and cost-effective solutions.
FPGA Basics
Field Programmable Gate Array Defined
A field programmable gate array, or FPGA, is a microchip. Engineers can program it to do certain digital jobs. FPGAs are not made for just one use. When they leave the factory, they have no set job. People can set them up later for different things. This is called "field programmable." It means you can change what the chip does after it is put in a device.
FPGAs have many small parts called configurable logic blocks (CLBs). They also have programmable interconnects and input/output blocks. These parts work together to make custom digital circuits. FPGAs have become more advanced since the 1980s. Now, they can have millions of logic gates, memory, and fast connections. This makes them important for simple gadgets and powerful computers.
Note: Field programmable gate arrays are special. They let engineers build and change digital designs. You do not need to make new hardware every time.
FPGA Features
FPGAs have features that make them useful in electronics today. The biggest feature is reprogrammability. Engineers can change the design on an FPGA many times. This helps them try new ideas, fix problems, or add new things. They do not need to replace the chip.
Some main FPGA features are:
-
Reprogrammability: You can update what the chip does after it is made. This saves time and money when making products.
-
Flexibility: FPGAs can change fast to meet new needs. They help keep up with new technology.
-
Custom Logic Implementation: Engineers can make special digital circuits for unique jobs. This helps when a project needs something different from normal chips.
-
Rapid Prototyping: FPGAs let teams test and improve designs quickly. They can try ideas and see results fast.
-
Cost-Effectiveness for Medium Volumes: If you do not need millions of chips, FPGAs can cost less than making a custom chip.
| Aspect | FPGA Advantage |
|---|---|
| Reprogrammability | You can change what it does after it is made. This lets you update or change hardware functions. |
| Flexibility | FPGAs can adapt fast to new needs, rules, or ways of working. |
| Development Speed | Teams can test and change designs quickly. This makes building things faster. |
| Application Suitability | Good for areas that change a lot or use new technology, like test systems or communications. |
| Post-Modification | Easy to update and change in the field. Fixed-function chips cannot be changed. |
| Cost and Volume | Lower starting cost and no extra fees. Good for small or medium projects that need flexibility. |
| Security Trade-off | Not as safe from copying as fixed chips, because you can reprogram them. |
FPGAs can help make complex digital systems. They can do many jobs at the same time because of their parallel structure. This is good for things like artificial intelligence, telecommunications, and space projects. Because they are programmable, engineers can keep up with new technology. This makes FPGAs important in digital design today.
Tip: FPGA basics include knowing how reprogrammability and flexibility help engineers. These features let them make better products faster and for less money.
FPGA Architecture
Logic Blocks and Interconnects
Every FPGA has a grid of programmable logic blocks. These blocks are the main parts for digital circuits. Each block has important pieces inside. The main pieces are lookup tables (LUTs), flip-flops (FFs), multiplexers (MUXes), and carry chains. These pieces work together to make simple or complex digital jobs.
| Component | Function |
|---|---|
| Lookup Tables (LUTs) | Do combinational logic jobs |
| Flip-Flops (FFs) | Hold signal states for sequential logic |
| Multiplexers (MUXes) | Pick between inputs or outputs for flexibility |
| Carry Chains | Help with math jobs like adders and counters |
LUTs let the blocks do any digital logic job. Flip-flops keep information and help with timing. Multiplexers give choices by picking different signals. Carry chains make math jobs like adding faster and better. Engineers use these blocks to build custom logic for their work.
Programmable interconnects join the logic blocks together. These links make a network that engineers can change with software. The interconnects let engineers send signals in many ways. This helps them make digital designs that fit their needs. Because the interconnects are programmable, engineers can change the design even after using the FPGA.
-
FPGAs use a grid of logic blocks joined by programmable interconnects.
-
The interconnects let engineers link blocks in many ways for each job.
-
This setup lets the FPGA do many digital jobs at the same time.
-
Engineers can change the links to meet new needs or fix things.
-
This makes FPGAs different from fixed chips and helps with fast testing.
Note: Programmable logic blocks and interconnects give FPGAs their special power. This setup lets engineers build, test, and change digital circuits quickly.
I/O and Memory
FPGAs must talk to other devices. Programmable input/output blocks do this job. These blocks are around the edge of the chip. Each input/output block can connect to many types of signals. They work with many standards, like single-ended and differential signals. This lets the FPGA talk to many digital systems, like sensors or computers.
FPGA input/output blocks are in banks. Each bank has pins that engineers set for different voltages and signals. Some pins move data fast, and others work with slow signals. The flexible input/output blocks let engineers match the FPGA to almost any device.
Memory is also a big part of FPGA design. FPGAs have on-chip memory, like Block RAM and UltraRAM. These memory blocks store data fast and help with quick digital work. On development boards, FPGAs often use on-board memory like DDR SDRAM. For bigger data jobs, FPGAs can use outside memory, like DDR SDRAM, High Bandwidth Memory (HBM), or Flash memory.
| External Memory Type | Description | Typical Capacity |
|---|---|---|
| DDR SDRAM | Outside DRAM connected by an interface | Several gigabytes |
| High Bandwidth Memory (HBM) | Stacked memory with fast speed and low wait time | Up to 16 GB per stack |
| SRAM | Fast, random access outside memory | Several megabytes |
| Flash Memory | Memory that keeps data even when off | Large capacity (varies) |
Using input/output blocks and different memory types lets FPGAs do many digital jobs. Engineers can make systems that process data, store info, and talk to other devices—all on one chip.
Tip: By using logic blocks, input/output blocks, and flexible memory, engineers can make digital designs for almost any job. This makes FPGAs a strong tool for custom logic and digital system work.
FPGA Programming
Hardware Description Languages
Engineers use special languages to tell FPGAs what to do. These are called hardware description languages, or HDLs. The two most used HDLs are VHDL and Verilog. VHDL is like the Pascal language. It has strict rules and helps with hard designs. Verilog looks more like the C language. Many engineers pick Verilog because it is simple to write and test digital circuits.
HDLs let engineers show how electronic systems work and look. Unlike normal programming, HDLs let many things happen at once. This is important because hardware works in parallel. SystemVerilog is based on Verilog and adds more tools for big projects. Some teams use C-based languages or Python tools to work faster. These choices help software developers join FPGA projects using code they know.
Tip: HDLs help turn ideas into real hardware. They let teams go from a plan to working circuits during development.
Configuration Process
Programming an FPGA takes a few steps. First, engineers write HDL code to show what they want. Then, special software changes this code into a netlist. The netlist shows how logic blocks connect. Next, the software places and routes the netlist. This makes a bitstream file. The bitstream tells the FPGA how to set up its parts.
The steps to set up an FPGA are:
-
Write HDL code for the job.
-
Test the logic with a testbench.
-
Change the code into a netlist.
-
Place and route the netlist for the FPGA.
-
Make the bitstream file.
-
Load the bitstream onto the FPGA.
SRAM-based FPGAs can be changed many times. They need an outside memory chip to hold the bitstream. Each time the device turns on, it loads the setup. This lets FPGAs get updates and changes while working. Other chips, like CPLDs, keep their setup inside and do not need to reload when starting.
Note: Being able to reprogram FPGAs fast helps teams try new ideas and fix problems. This makes FPGAs a good choice for projects that need quick changes.
FPGA vs Other Chips
ASIC Comparison
FPGAs and application-specific integrated circuits are used for different things. FPGAs are special because you can change them after building a device. This helps when a project might need changes or quick testing. Application-specific integrated circuits are made for one job only. You cannot change what they do unless you make a new chip.
| Comparison Aspect | ASICs (Application-Specific Integrated Circuits) | FPGAs |
|---|---|---|
| Design Flexibility | Fixed after manufacturing | Can be reconfigured after deployment |
| Performance | Highest for specific tasks | Lower due to reconfigurable logic |
| Power Consumption | Very efficient | Higher than ASICs |
ASICs are very fast and use little power for their job. They are made to do one thing really well. But if you want to change the design, it takes a lot of time and money. FPGAs let you make changes fast, but they are not as fast or efficient as ASICs.
FPGAs are good when you need to make changes, keep updating, or do not know all the needs yet. For example, early 5G base stations and car systems used FPGAs to keep up with new rules. When the design was finished, companies switched to application-specific integrated circuits for better speed and less power.
Tip: FPGAs help teams finish products faster and lower risk if things might change.
Microcontroller Comparison
Microcontrollers and FPGAs both help control electronics, but they work differently. Microcontrollers have set hardware and run software one step at a time. This makes them easy to use, cheap, and good for simple jobs.
FPGAs use programmable logic blocks. They can do many things at once. This makes FPGAs better for fast or hard jobs, like video or real-time data work.
| Feature | FPGA | Microcontroller |
|---|---|---|
| Hardware Structure | Programmable logic and interconnects | Fixed CPU, memory, and peripherals |
| Programming Language | Hardware Description Languages (HDL) | Software languages (C, C++, Assembly) |
| Customization | Highly customizable hardware | Limited to software changes |
| Parallelism | True parallel processing | Sequential instruction execution |
| Power Consumption | Higher | Lower |
Engineers pick FPGAs for custom hardware, high speed, or when many things must happen at once. Microcontrollers are best for easy control, user buttons, or when you need low power and cost. Programming FPGAs needs special hardware skills, but microcontrollers use common software languages.
Note: FPGAs are very flexible and can do many things at once, but microcontrollers are still best for simple, cheap, and low-power projects.
FPGA Applications
Industry Uses
Many industries use FPGA applications to fix hard problems. The telecom field puts FPGAs in 5G base stations and fast data jobs. These chips help networks stay quick and easy to change. Factories use FPGAs for machine control and seeing with cameras. They also use them for real-time control. In factories, FPGAs help with IoT and keep machines working well.
Cars and home electronics use FPGAs for control and sensors. Wearable tech and small gadgets also use these chips. Military and space teams pick FPGAs for tough computers and fast work. These chips are good in satellites, radar, and defense tools. FPGAs can handle live data and change to new jobs fast.
| Industry Sector | Common FPGA Use Cases |
|---|---|
| Telecom & Communication | 5G base stations, network flexibility, high-speed processing |
| Industrial | Automation, machine vision, real-time control |
| Automotive & Consumer | Embedded control, sensor interfaces, wearables |
| Military & Aerospace | Rugged computing, radar, satellites, flight control |
| IoT | Edge computing, power-efficient applications |
Cheaper FPGAs are used in markets like IoT and cars. These chips help teams test ideas and update things fast. Companies use FPGA boards to try out hardware and test new plans. The FPGA market grows as more fields want flexible and changeable chips.
Everyday Examples
People find FPGA applications in many things they use each day. Modern TVs and cameras use FPGAs for pictures and video work. These chips give real-time features like steady images and 4K video. Smart home gadgets and wearables use FPGAs for fast data and low power.

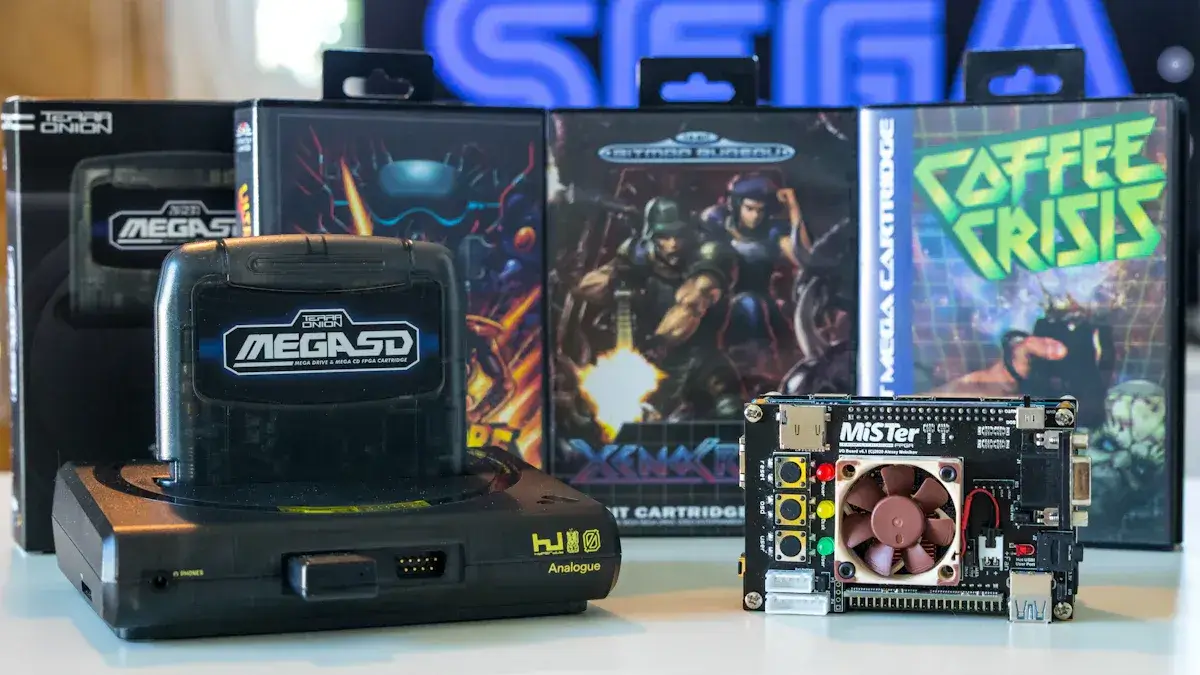

Doctors use FPGAs in medical tools for clear images and quick answers. Drones use FPGAs for flying and steady video. Game machines and AR/VR use FPGAs for fast graphics and smooth play. Many engineers use FPGA boards to test ideas before making the final product.
The FPGA market keeps growing as more things need fast and flexible chips. FPGAs help companies make new products faster and make daily tech better.
FPGAs are special because they are fast and flexible. They help people make new ideas quickly and save money. Their design lets them do many jobs at once and update easily. This is why FPGAs are used in AI, cars, and phones. If you want to be an FPGA engineer, you can start with easy projects. There are lots of FPGA guides and tools to help you learn. Learning step by step and trying things out helps you get better. This way, you can build good skills for new inventions.
FAQ
What does "field-programmable" mean in FPGA?
"Field-programmable" means you can change what the FPGA does later. Engineers use special software to update the chip’s job. This helps teams fix problems or add new things without new hardware.
Can someone use an FPGA for learning electronics?
Yes, students and hobbyists use FPGAs to learn digital design. Starter kits and online guides help beginners make simple projects. FPGAs give real experience with hardware you can touch.
How does an FPGA differ from a regular computer chip?
An FPGA has logic blocks you can program. A regular computer chip, like a CPU, has circuits that never change. FPGAs let engineers build custom hardware. CPUs follow software steps one by one.
Do FPGAs need special programming skills?
FPGAs use hardware description languages like VHDL or Verilog. These languages show how circuits work inside the chip. Learning them takes time, but there are many guides for beginners.
Where can someone find FPGA projects or tutorials?
There are many websites, forums, and videos with FPGA projects. Popular places are Hackster.io, Instructables, and YouTube. Starter kits often have example projects and easy guides.
