Wiring a starter solenoid means hooking up the right wires. Each terminal on the solenoid does a special job. Always disconnect the battery before you start for safety. The starter solenoid wiring diagram shows where each wire should go. Using the right wire and following the diagram stops mistakes and keeps the vehicle safe.
Key Takeaways
-
Always take off the battery and put on safety gear before you wire the starter solenoid. This helps stop accidents.
-
Use the wiring diagram to match each wire to the right terminal. Pick the correct wire size for power and control circuits.
-
Make sure the battery and ground wires are strong, clean, and tight. They should not have rust. This helps the starter motor work well.
-
Look at all connections closely. Test the starter with a multimeter before you start the engine. This helps you find problems early.
-
Watch for common mistakes like loose cables, bad grounds, and broken safety switches. This helps your car start without trouble.
Starter Solenoid Basics
What It Does
A starter solenoid works like a strong switch for the starter motor. When you turn the key, the solenoid gets power from the battery. This power goes through a coil inside the solenoid. The coil makes a magnetic field that moves a metal rod. The rod closes the circuit between the battery and the starter motor. This lets a lot of current reach the starter motor. The starter motor then spins and starts the engine.
The solenoid has a metal core wrapped with a coil. This helps it push or pull with force. This movement connects the starter motor to the engine’s flywheel. The starter motor needs a lot of power to turn the engine. The solenoid only lets power flow when it is needed. The way the solenoid is built helps it move the starter motor’s parts. Without the solenoid, the starter motor would not get enough power to start the engine.
Tip: The starter solenoid works only when you turn the key. It stops the starter motor from running all the time.
Why Proper Wiring Matters
Good wiring is very important for the starter solenoid and starter motor. If wires are not hooked up right, the starter motor may not get enough power. This can make the engine hard to start or make the starter motor weak. Tests show that solenoids need strong and steady voltage to work. If the power is weak or not steady, the solenoid may not close the circuit.
-
Bad connections can make the starter motor get less current, so the engine is hard to start.
-
If two solenoids share a circuit but are wired wrong, one might not work.
-
Electricity can flow back from one solenoid to another, so experts say to use diodes or separate wires.
A well-wired solenoid gives the starter motor full power every time. This keeps the starter motor and other parts safe from damage. Good wiring also stops problems like overheating or shorts. Reliable wiring helps the starter motor and solenoid work together, so the vehicle starts well every time.
Starter Solenoid Wiring Diagram
Diagram Overview
A starter solenoid wiring diagram shows how to connect wires. It uses symbols and numbers for each terminal. These numbers help you find where each wire goes. The diagram shows how electricity moves from the battery to the starter motor. Each terminal has a label like B for battery, S for start, M for motor, R for relay, and I for ignition. These labels make it easier to install and fix problems.
The diagram also shows how current travels. Power starts at the battery, goes through the solenoid, and then to the starter motor. Lines in the diagram show how wires link each part. This helps beginners see how everything connects. Numbers and symbols give clear spots to check. This makes following the steps and avoiding mistakes easier.
Terminal Identification
Each terminal on the starter solenoid does something special. The battery terminal (B) connects to the battery’s positive side. The start terminal (S) connects to the ignition switch. The motor terminal (M) links to the starter motor. Some solenoids have extra terminals like R (relay) or I (ignition). These extra terminals help with other circuits.
Wire color codes help match wires to the right terminals. The table below lists common wire colors for each job:
| Terminal/Function | Common Wire Color(s) |
|---|---|
| Battery (B) | Red |
| Start (S) | Yellow or Purple |
| Motor (M) | Black |
| Relay (R) | Blue |
| Ignition (I) | Brown |
| Ground | Green or Bare |
People should use the right wire thickness for each connection. Thick wires move power from the battery to the starter motor. Thin wires are for the activation circuit. Good grounding keeps the wiring safe and working well. Diagrams always show where to put the ground wire.
Note: Always check the wiring diagram before you connect wires. This helps stop damage to the starter motor and other parts.
How to Wire a Starter
Tools and Safety
Get the right tools before you start wiring. Always follow safety rules to avoid getting hurt or breaking parts.
-
Wear safety glasses and gloves to protect your eyes and hands.
-
Use a wrench set and screwdrivers to work with bolts and screws.
-
A wire stripper and crimper help make neat wire ends.
-
Use a multimeter to check voltage and resistance.
-
Put dielectric grease on connections to keep out water.
-
Stainless steel bolts and star washers stop rust at the connections.
-
Turn off the ignition and put the car in park before you begin.
-
Take off the battery cable so no power can flow by accident.
Tip: Mechanics say to make sure the area is dry and has no fuel or oil. This helps stop fires.
The table below shows how using the right tools and safety steps can lower the chance of problems and help things work better:
| Parameter | Value / Range | Description |
|---|---|---|
| Diagnostic Coverage (DCavg) | 60% to 90% | Finds most dangerous problems |
| Maximum Performance Level (PL) | Up to PLd | High safety is possible with good tools and steps |
| Failure Rate (PL a) | 2.58 × 10^-5 failures/hour | Lower safety means more failures |
| Failure Rate (PL d) | 5.28 × 10^-7 failures/hour | Higher safety means fewer failures |
| MTTFD | Low to High | Time before a bad failure depends on tools and design |

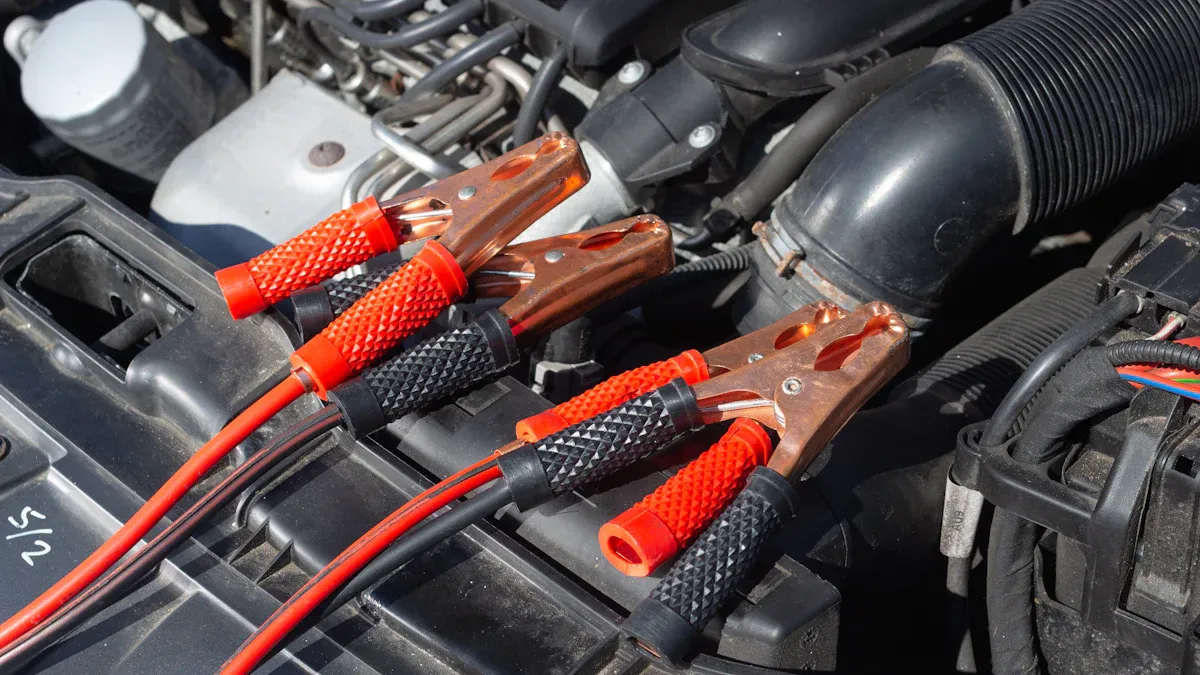

Connecting Battery and Ground
Good battery and ground connections are needed for the starter to work well. The battery positive cable goes to the solenoid’s B terminal. The negative cable connects to the engine block or chassis.
-
Use a thick cable from the battery negative post to the engine block. This cable carries power for the starter and alternator.
-
If the battery is in the front, use a cable for 50-100 amperes.
-
Ground straps should be 3/4 inch wide and 1/16 inch thick, rated for 150 amperes. Use two straps of the same length.
-
Attach ground cables to strong metal welded to the chassis, not to bolt-on panels.
-
Put dielectric grease on all connections to stop rust.
-
Use stainless steel bolts and star washers for strong, long-lasting connections.
-
Do not connect the battery negative post to other devices unless they are fully separate.
| Specification Aspect | Details / Numerical Guidelines |
|---|---|
| Battery Negative to Chassis Connection | Reliable; cable size for 50-100 amperes |
| Battery Negative Lead to Engine Block | Heavy gauge cable direct from battery negative post |
| Ground Straps | 3/4" wide, 1/16" thick, tinned, 150A rating, two in parallel |
| Starter Solenoid Wire Size | AWG 10 |
| Grounding Points | Solid sheet metal welded to chassis |
| Use of Corrosion-Resistant Fasteners | Stainless steel bolts, star washers |
| Use of Dielectric Grease | At connection points |
Note: Loose or missing ground wires often cause starting problems. Always check these spots.
Connecting S, M, and R Terminals
The starter solenoid has three main terminals: B (battery), S (start), and M (motor). Some have an R (relay) terminal too.
-
Connect the red wire from the battery positive to the B terminal.
-
Attach the yellow or purple wire from the ignition switch to the S terminal.
-
Connect the black wire from the M terminal to the starter motor.
-
If there is an R terminal, connect the blue wire for relay functions.
-
Make sure all wires are clean and tight. Use AWG 10 wire for the solenoid.
-
Secure wires with star washers and stainless steel bolts to stop them from coming loose or rusting.
Tip: Safety switches like the neutral safety switch or clutch safety switch keep the starter from working unless the car is in park or neutral. Check these switches if the starter does not work.
Wiring things wrong can cause big power surges and break the solenoid or starter. Always use the diagram and check each wire.
Double-Check and Test
After wiring, check every connection before you test the starter. Testing helps find problems early and keeps things safe.
-
Wear safety gear and make sure the power is off before checking.
-
Look at all wires for burn marks, loose ends, or rust.
-
Use a multimeter to check resistance between the starter frame and ground. It should be less than 0.5 ohms.
-
Check voltage at the battery and solenoid. The voltage should match the battery’s rating.
-
Test the starter by turning the key. The engine should turn over smoothly.
-
Measure current draw with a multimeter set to amperes. The current should match the starter’s label.
-
If the starter does not work, look for loose wires, bad grounds, or broken safety switches.
| Test Procedure | Description | Numerical Tolerance / Range |
|---|---|---|
| Earth Continuity Test | Measure resistance between motor frame and earth | Resistance < 0.5 ohms |
| Power Supply Voltage Test | Measure voltage at terminals | Should match battery rating |
| Running Amps Test | Measure current draw while starter runs | At or below manufacturer’s specified amperage |
| Insulation Resistance Test | Use insulation tester at 500V between phases and earth | Minimum 1 megohm; replace if below 0.2 megohms |
Callout: If the starter motor does not turn, check all wires again. Look for rust, loose bolts, or broken wires. Mechanics sometimes test starters by connecting the battery positive straight to the starter motor positive terminal with jumper cables, but only after following all safety steps.
Learning to wire a starter helps you avoid mistakes and keeps your car starting well. Following these steps and checking each wire makes sure the starter solenoid wiring is safe and works right.
Starter Solenoid Wiring Tips
Common Mistakes
A lot of people make the same errors when wiring a starter solenoid. Loose or rusty battery cables can cause trouble. Wires that are broken or have cuts can stop the starter from working. Sometimes, the ground wire gets dirty or breaks. These problems keep enough power from reaching the solenoid or starter motor. If this happens, the engine might not turn on at all. Bad electrical connections, like dirty battery ends, also cause issues. Old solenoid switch contacts or dirty terminals can block electricity. Mechanics often see these mistakes make the starter fail when you turn the key. Checking and cleaning all wires often helps stop these problems.
Tip: Always make sure all connections are tight, clean, and free of rust before you change any parts.
Troubleshooting
To troubleshoot a starter solenoid, start by looking at everything closely. Experts say to use a digital multimeter to test if the solenoid works inside. If the meter says “OL,” the solenoid is bad. A voltage drop test across the solenoid contacts can show if they are burned or worn out. If the voltage drop is over 0.5 volts when the starter runs, the contacts need fixing. You can also do a bench test. Put power right to the starter and solenoid. If the solenoid clicks but the starter does not spin, you may need a new solenoid. If the starter turns slowly, it is best to replace the whole starter. Mechanics say to always unhook the battery and wear safety gear when testing.
Troubleshooting Steps:
-
Park the car and turn off the engine.
-
Take off the battery’s negative cable.
-
Find the starter solenoid.
-
Use gloves and tools with insulation.
-
Connect the solenoid terminals to test for a click.
-
Listen for a strong click or feel a vibration.
-
Use a multimeter to check resistance and voltage.
Neutral Safety Switch
The neutral safety switch is very important in starter wiring. This switch lets the starter work only when the car is in park or neutral. If the switch is broken, the starter will not work, even if the wires are fine. Many starting problems come from a bad neutral safety switch. You can test it by moving the gear shifter between park and neutral while turning the key. If the starter works in one spot but not the other, the switch may need to be fixed or changed. Mechanics usually check this switch before changing the solenoid or starter motor.
Note: Always check the neutral safety switch when you have no-crank problems. This small part can cause big problems if you forget about it.
Hooking up a starter solenoid takes a few easy steps. First, get your tools and look at the wiring diagram. Then, put each wire on the right terminal. Always make sure every connection is safe. Diagrams help you avoid errors and keep your car safe.
Check every step two times before you try the starter.
Quick Checklist for Beginners:
-
Put on safety gear
-
Unhook the battery
-
Pick the right wire size
-
Use the wiring diagram
-
Look for rust or loose wires
Use this guide and diagram if you need help.
FAQ
What happens if someone wires the starter solenoid incorrectly?
If you wire the starter solenoid wrong, the engine might not start. You could see sparks or blow a fuse. The starter motor might get damaged too. Always look at the wiring diagram before you connect wires.
How can a person tell if the starter solenoid is bad?
A bad solenoid will often just click but not start the engine. Sometimes, it makes no sound at all. You can use a multimeter to test if the solenoid is working.
Does every starter solenoid have the same terminals?
Not all solenoids have the same terminals. Most have B, S, and M. Some have R or I for extra jobs. Always check your car’s wiring diagram to know which terminals you need.
What wire gauge should someone use for the starter solenoid?
Most starter solenoids use AWG 10 wire for control wires. The main battery and motor wires should be much thicker, like AWG 4 or bigger. Thick wires help carry more power safely.
Written by Jack Elliott from AIChipLink.
