Introduction
The IRFZ44N MOSFET is a widely used N-channel power MOSFET known for its high current-handling capacity, low on-state resistance, and robust performance in various electronic applications. Whether you are an electronics enthusiast, engineer, or developer working on a power electronics project, understanding the IRFZ44N MOSFET and its alternatives like the IRFZ44NPBF can help you make the right component choice.
This blog post will cover everything from the IRFZ44N datasheet specifications to its features, applications, comparisons with other MOSFETs, and FAQs.
What is the IRFZ44N MOSFET?
The IRFZ44N is an N-channel enhancement mode MOSFET designed for switching applications. It has a low Rds(on) (drain-source resistance) and high current-carrying capability, making it ideal for high-power applications such as motor drivers, power supplies, and inverter circuits.
Application example with Arduino
Let's put an application example for the IRFZ44N with Arduino and its pins PWM. And it is that when you need to control loads in a variable way to regulate the speed of motors, the intensity of lighting, etc., you can go to these PWM pins and transistors like the one we have to analyze today.
First of all, when you want to connect or disconnect a housing from a power source, it is usually use a classic switch or a relay. But that only allows turning on and off, both in one case and in the other.
Here is a video that might help:
Key Features of IRFZ44N MOSFET:
• N-channel MOSFET with high efficiency
• Continuous Drain Current: 49A
• Drain-Source Voltage (Vds): 55V
• Gate Threshold Voltage (Vgs(th)): 2V - 4V
• Low On-Resistance (Rds(on)): ~17mΩ
• Fast switching speed
• Package Type: TO-220
Known for its capability to handle high voltage and current levels, the IRFZ44N is categorized as a Metal Oxide Semiconductor Field Effect Transistor (MOSFET) with low output resistance and high input resistance. It can withstand a maximum voltage of 55 volts and a maximum current of 49 amperes.
The IRFZ44N is particularly suitable for applications that require high voltage and current switching, such as power supply and motor control circuits. Leveraging its low on-state resistance, it efficiently handles high currents with minimal energy consumption, gaining recognition for reliability and robustness in the electronics industry.
Ideal for low-power circuits that need to control substantial loads with a weak signal, the IRFZ44N features a low gate charge, enabling effective management with a weak external signal. Its applicability extends to high-frequency applications up to 1MHz, and it can withstand a broad temperature range (-55°C to +175°C). Often used in conjunction with microcontrollers like Arduino, the MOSFET N-channel or logic level IRLZ44N MOSFET serves various applications.
As a dependable electronic component, the IRFZ44N excels at handling high currents and voltages in circuits. Its low output impedance, high input impedance, and low on-state resistance contribute to its versatility, making it an optimal choice for applications ranging from power supplies to audio amplifiers, catering to both professional engineers and enthusiasts.
The IRFZ44N MOSFET datasheet provides full technical specifications, but let's discuss how it compares to other similar MOSFETs.
Electrical Characteristics
To effectively devise a circuit and guarantee the optimal performance of the IRFZ44N power MOSFET transistor, it is imperative to grasp its key electrical attributes. Here are the critical electrical specifications of the IRFZ44N:
• Drain-Source Voltage (Vds): The highest permissible voltage across the IRFZ44N's drain and source pins is 55 volts. Going beyond this limit could result in harm to the component.
• Drain Current (Id): The maximum drain current the IRFZ44N can withstand is 49 amps, contingent on ambient temperature and operational conditions.
• Gate-Source Voltage (Vgs): The maximum allowable voltage between the gate and source pins is +/- 20 volts. This voltage dictates the current flow between the source and drain pins.
• Gate Threshold Voltage (Vgs(th)): This signifies the minimum voltage required to activate the IRFZ44N, with a typical Vgs(th) value ranging from 2 to 4 volts.
• On-Resistance (Rds(on)): When fully activated, the resistance between the drain and source pins is denoted by Rds(on), typically measuring 17 milliohms for the IRFZ44N.
• Total Gate Charge (Qg): The aggregate charge essential for toggling the IRFZ44N on and off is represented by Qg, with a typical value of 44 nanocoulombs.
• Gate-Source Capacitance (Cgs): This refers to the capacitance between the gate and source pins, with a typical Cgs value of 2000 picofarads for the IRFZ44N.
Comprehending these electrical characteristics is paramount when fashioning a circuit with the IRFZ44N power MOSFET transistor. By taking these parameters into account, one can judiciously choose components, design the gate driver circuit, and guarantee the circuit operates within the safe confines of the component.
IRFZ44N vs. IRFZ44NPBF: What’s the Difference?
Many users come across the IRFZ44NPBF and wonder how it differs from the standard IRFZ44N. The "PBF" in IRFZ44NPBF stands for "Pb-Free," meaning it is a lead-free version of the same MOSFET.
Comparison Table: IRFZ44N vs. IRFZ44NPBF
| Feature | IRFZ44N | IRFZ44NPBF |
|---|---|---|
| Drain-Source Voltage (Vds) | 55V | 55V |
| Continuous Drain Current (Id) | 49A | 49A |
| Gate Threshold Voltage (Vgs(th)) | 2V - 4V | 2V - 4V |
| On-Resistance (Rds(on)) | 17mΩ | 17mΩ |
| Package Type | TO-220 | TO-220 |
| Lead-Free (RoHS Compliant) | No | Yes |
If you are working on an environmentally friendly or RoHS-compliant design, the IRFZ44NPBF is the better option since it is lead-free.
Applications of IRFZ44N MOSFET
The MOSFET IRFZ44N is commonly used in various electronic applications, including:
1. Motor Drivers
• The IRFZ44N MOSFET is ideal for DC motor control in robotics, automation, and power tools.
2. Switching Power Supplies
• It is frequently used in SMPS (Switched Mode Power Supplies) for efficient energy conversion.
3. Battery-Powered Circuits
• Due to its low Rds(on) and efficiency, it is used in battery-operated devices to minimize power loss.
4. Inverter Circuits
• Inverter circuits use MOSFETs like the IRFZ44N for high-efficiency AC to DC conversion.
5. Automotive Electronics
• The IRFZ44N is used in automotive applications for controlling lights, fans, and ignition systems.
IRFZ44N Alternatives
IRF2807, IRFB3207, IRFB4710, IRF3205, IRLZ44N, STP55NF06L, and FDP7030L can be considered as alternatives to the popular IRFZ44N MOSFET.
• IRFZ48N: An enhanced iteration of the IRFZ44N, the IRFZ48N boasts a maximum drain current of 64 amps and a peak voltage rating of 60 volts. Notably, its on-resistance is lower than that of the IRFZ44N, rendering it an apt choice for applications demanding heightened power.
• IRFB3207: The IRFB3207 is a power MOSFET known for its high current-carrying capability and low on-state resistance. It can be considered an alternative to the IRFZ44N in applications requiring robust switching performance and efficient power handling. Both MOSFETs share similar characteristics, making the IRFB3207 a suitable substitute.
• IRFB4710: The IRFB4710 is another MOSFET alternative to the IRFZ44N. It features a high current rating and low conduction losses, making it suitable for applications where efficient power switching is essential. The IRFB4710 can be used in circuits requiring a MOSFET with performance characteristics comparable to the IRFZ44N.
• IRF3205: Positioned as a favored selection, the IRF3205 power MOSFET transistor can manage up to 55 volts and a maximum drain current of 110 amps. Its on-resistance is notably lower than that of the IRFZ44N, establishing it as an excellent choice for high-power applications.
• IRLZ44N: A variant of the IRFZ44N tailored for digital circuits and microcontrollers, the IRLZ44N obviates the need for an external gate driver circuit. Additionally, it exhibits lower resistance than the IRFZ44N and can accommodate a maximum voltage of 55 volts.
• STP55NF06L: Engineered by STMicroelectronics, this power MOSFET transistor boasts a maximum voltage tolerance of 60 volts and can handle a peak drain current of 50 amps. Its on-resistance is lower than that of the IRFZ44N, positioning it as a fitting choice for diverse power electronic applications.
• FDP7030L: Crafted by Fairchild Semiconductor, the FDP7030L excels in high-power scenarios, featuring a maximum voltage rating of 100 volts and a peak drain current of 60 amps. Notably, its on-resistance is lower than that of the IRFZ44N.
When seeking a substitute for the IRFZ44N power MOSFET transistor, exercise diligence in selecting alternatives that align with the voltage and current prerequisites, on-resistance, and gate capacitance of your application. Always refer to the datasheet of any alternative component to ensure seamless compatibility.
Frequently Asked Questions (FAQ)
Q1: What is the IRFZ44N MOSFET used for?
The IRFZ44N MOSFET is used in power electronics applications, such as motor drivers, switching regulators, inverters, and high-current switching circuits.
Q2: What is the difference between IRFZ44N and IRFZ44NPBF?
The main difference is that the IRFZ44NPBF is lead-free (RoHS compliant), while the IRFZ44N is not. Both have identical electrical characteristics.
Q3: Can IRFZ44N be used for PWM applications?
Yes, the IRFZ44N MOSFET is commonly used in PWM (Pulse Width Modulation) circuits due to its fast switching speed.
Q4: What is the gate drive voltage for IRFZ44N?
The gate threshold voltage (Vgs(th)) is between 2V - 4V, but for full conduction, a gate voltage of at least 10V is recommended.
Q5: How do I connect IRFZ44N in a circuit?

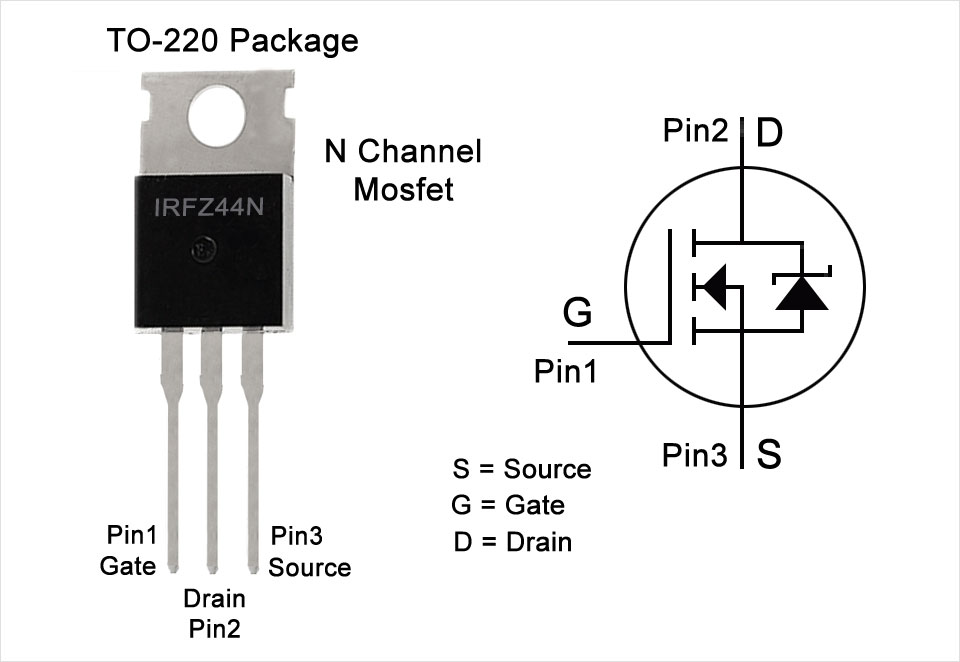

The IRFZ44N has three terminals:
• Gate (G): Control input, connected to a microcontroller or driver circuit.
• Drain (D): Connected to the load.
• Source (S): Connected to ground.
To switch it on, apply a voltage of 10V to the Gate.
Q6: What is the maximum current handling capacity of IRFZ44N?
The IRFZ44N MOSFET can handle a continuous drain current of 49A at room temperature.
Q7: Is IRFZ44N logic level MOSFET?
No, the IRFZ44N requires a higher gate voltage (typically 10V) for full conduction, meaning it is not a logic-level MOSFET.
Conclusion
The IRFZ44N MOSFET is a powerful and efficient N-channel MOSFET that is widely used in high-power switching applications. Whether you're designing motor drivers, power supplies, or inverter circuits, this MOSFET is an excellent choice. If you need a lead-free version, consider the IRFZ44NPBF, which offers the same performance while complying with environmental standards.
The IRFZ44N power MOSFET transistor stands out as a versatile option for demanding applications in the realm of power electronics. Boasting impressive current and voltage ratings, coupled with low on-resistance and rapid switching capabilities, it has earned widespread acclaim among professionals seeking precise control over their electrical systems. To optimize performance when employing the IRFZ44N, adhere to recommended best practices: meticulously verify your connection methodologies, tailor your plans to meet appliance specifications, and attentively monitor gate voltages and load thresholds during operation. By doing so, you can harness peak efficiency from your device with minimal associated risk!
For more detailed specifications, always refer to the IRFZ44N MOSFET datasheet, which provides complete electrical characteristics and thermal ratings.
