A graphics card is also called a display card or video card. It controls how a computer makes and shows pictures on a screen. This part does hard work with graphics, like making images and videos. It helps the computer work better and not slow down. The graphics card makes things faster by handling pictures and letting the main processor do other jobs. Important features like VRAM, clock speed, and special cores decide how well the graphics card works for games, editing, and other picture tasks.
The table below shows key ways graphics cards perform:
| Metric | Impact on Performance |
|---|---|
| VRAM | Handles high-resolution graphics and hard picture jobs |
| Clock Speed | Makes graphics and math work faster |
| Specialized Cores | Helps with tough picture making and cool effects |
| Offloading from CPU | Lets the computer do more things at once and makes pictures faster |
Key Takeaways
-
A graphics card lets your computer show pictures and videos well. It does the graphics work, so the main processor can do other jobs.
-
There are different graphics cards. Integrated cards are inside the CPU. They are good for easy tasks. Dedicated cards have their own memory and power. They are better for gaming and work.
-
Gaming graphics cards are made for speed and smooth play. Workstation cards focus on being correct and steady. They are used for design, AI, and science work.
-
Graphics cards have many small cores that work together. This helps them process images fast. They use VRAM to hold picture data. This makes them work better.
-
You should pick a graphics card based on what you need. Choose gaming cards for fun and fast play. Pick workstation cards for careful, professional work.
Graphics Card Basics
Definition
A graphics card is sometimes called a video card or display card. It is a part you add to a computer. It makes pictures for the monitor. The graphics card has a GPU inside it. The GPU does the math to show pictures, videos, and animations. Most graphics cards are boards that fit into the motherboard. Some are outside the computer and use cables. The GPU is the most important part. It does most of the work to show graphics.
Purpose
The graphics card does many things in a computer:
-
It gets image data from the CPU and shows pixels on the screen.
-
It makes 3D images by drawing shapes, filling in colors, and adding light and textures.
-
The GPU does hard math and shapes to make pictures look real.
-
VRAM keeps images and pixel data before sending them to the monitor.
-
The graphics card sends the final picture to the display.
-
It can do special effects like anti-aliasing, real-time physics, and high frame rates.
-
The GPU takes over picture jobs from the CPU, so the computer works better.
Note: Today’s video cards do more than just send pictures to the monitor. They handle 3D graphics, play videos, and help with editing and design.
Importance
A good graphics card makes the computer look and feel better. It gives sharp pictures, bright colors, and smooth movement. This helps games, videos, and design work look nice and easy to see. Good graphics cards let you use higher settings and more detail. This means clearer and better pictures. They also keep the frame rate steady, so there is less lag and no screen tearing. Video cards with their own VRAM and cooling work better than built-in graphics. This is true for hard jobs. People see faster response and better pictures. This makes using the computer a better experience.
Types of Graphics Card
Graphics cards come in different types. Each type is made for a special job. The main types are integrated, dedicated, workstation, and gaming graphics cards. Knowing about these types helps people pick the right one for what they need.
Integrated
An integrated graphics card is inside the computer’s main processor. It uses the same memory as the CPU. This kind of graphics card is good for simple things. You can use it for web browsing, watching videos, and light gaming. Integrated graphics cards do not use much power. They do not get very hot. This helps laptops and small devices last longer and stay cool.
Integrated graphics cards are cheap and save space. They are good for people who want a simple and low-cost device.
Some important things about integrated graphics cards:
-
They are built into the CPU chip.
-
They use shared memory, so they are not very strong.
-
They are good for daily tasks and light gaming up to 1080p.
-
They use less power and make less heat.
-
They do not need extra fans or cooling.
| Aspect | Integrated GPU |
|---|---|
| Architecture | Built into the CPU, shares system memory (RAM) |
| Graphics Processing | Good for daily tasks, light gaming, 1080p max |
| Memory | Uses shared RAM, not much bandwidth |
| Energy Efficiency | Uses little power, helps battery last, less heat |
| Performance | Not great at multitasking or hard graphics |
| Use Cases | Office work, watching videos, light gaming |
| Cost | Cheap, makes devices cost less |
| Suitability | Good for small and cheap devices |
Integrated graphics cards are best for people who do not need strong graphics. They are found in laptops, tablets, and cheap desktop computers.
Dedicated
A dedicated graphics card is a separate part in the computer. It has its own memory and special cores. This kind of graphics card is used for hard jobs like 3D drawing, video editing, and gaming. Dedicated graphics cards do not share with the CPU. This makes them work better.
Dedicated graphics cards can be inside the computer or outside with cables. People also call them discrete GPUs. They are in desktops and powerful laptops.
Some facts about dedicated graphics cards:
-
They have their own memory and special parts.
-
They are good for high-res gaming, 3D work, and AI.
-
They give higher frame rates and can do more at once.
-
They use more power and get hotter.
-
They need better cooling, like fans or water cooling.
| Aspect | Dedicated GPU |
|---|---|
| Architecture | Separate card with its own memory and cores |
| Graphics Processing | Great for 4K gaming, 3D, VR, and AI |
| Memory | Has its own VRAM, loads textures faster |
| Energy Efficiency | Uses more power, gets hotter, needs cooling |
| Performance | Can do more at once, smoother pictures |
| Use Cases | Gaming, design, AI, editing videos |
| Cost | Costs more but works better |
| Suitability | For powerful desktops and laptops |
Dedicated graphics cards are needed for people who want strong graphics. They are used in gaming computers, workstations, and pro devices.
-
Dedicated graphics cards work with CUDA and OpenCL. This helps them train AI models and do science work faster.
-
Discrete GPUs are better for CAD and design programs. They handle pro graphics jobs better than integrated graphics cards.
-
Dedicated graphics cards are important for both home and work. They take over graphics jobs from the CPU and make the computer faster.
| Device Type | Typical Use Cases |
|---|---|
| Consumer GPUs | Gaming, movies, VR, fun stuff |
| Professional GPUs | CAD, medical images, animation, design, engineering |
| Both Consumer & Professional | Video editing, AI, science, deep learning, big data work |
Dedicated graphics cards are in both home and work computers. Home graphics cards are for games and fun. Pro graphics cards are for design, engineering, and science.
Workstation
Workstation graphics cards are a special kind of dedicated graphics card. They are made for pro jobs in engineering, building, AI, and science. Workstation cards care about being exact, steady, and safe. They use ECC memory to stop mistakes and keep data safe.
| Feature | Workstation Graphics Cards | Gaming Graphics Cards |
|---|---|---|
| Design Philosophy | Made for exact and steady work for pros | Made for fast pictures and high frame rates |
| Driver Optimization | Drivers made for pro software | Drivers made for popular games |
| Memory | Uses ECC memory to stop mistakes | Usually does not use ECC memory |
| Price | Costs more because of special features | Costs less, made for gamers |

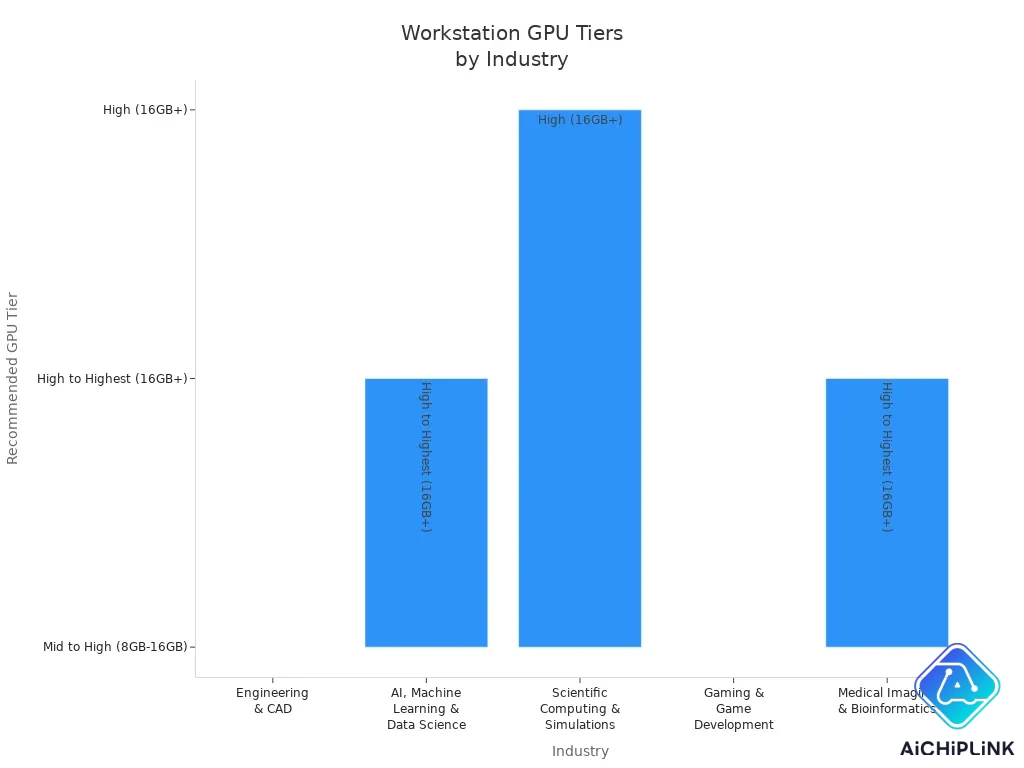

Workstation graphics cards are used in many jobs:
| Industry | Common Applications | Key Software Examples | Recommended GPU Tier |
|---|---|---|---|
| Engineering & CAD | CAD, simulations, remote work | AutoCAD, Revit, SolidWorks, Siemens NX, CATIA | Mid to High (8GB-16GB) |
| AI, Machine Learning & Data Science | Deep learning, AI, big data | TensorFlow, PyTorch, Keras, MATLAB, RAPIDS | High to Highest (16GB+) |
| Scientific Computing & Simulations | Physics, chemistry, molecule work, data | ANSYS, COMSOL, Gaussian, GROMACS, ParaView | High (16GB+) |
| Gaming & Game Development | Game making, real-time pictures, cloud games | Unity, Unreal, CryEngine, GeForce NOW | Mid to High (8GB-16GB) |
| Medical Imaging & Bioinformatics | Medical scans, genes, AI health tools | OsiriX MD, Clara, 3D Slicer, DeepVariant | High to Highest (16GB+) |
Workstation graphics cards last longer and use less power. They use special drivers for pro programs. These cards do every math step right, so they are needed for jobs where being exact is very important.
Gaming
A gaming graphics card is a dedicated card made for games. It is built for fast pictures, high frame rates, and smooth play. Gaming graphics cards use quick memory and strong cores to show hard graphics in new games.
Main things about gaming graphics cards:
-
High scores in tests like 3DMark.
-
Fast VRAM for loading textures quickly.
-
Drivers made for top game engines.
-
Good value, balancing price and power.
-
Many people use them for fun gaming.
| Metric | Description |
|---|---|
| Benchmark Scores | 3DMark scores show how well it plays games. |
| MSRP Price | The price the maker suggests for the card. |
| Value for Money | Shows if the card is worth the price. |
| Popularity | How many people use and test the card. |
Gaming graphics cards are not the same as workstation cards:
-
Gaming cards care about speed and high frame rates.
-
They give up some exactness for faster pictures.
-
They do not use ECC memory, since small mistakes are not a big deal in games.
-
Gaming cards cost less than workstation cards.
A gaming graphics card is best for people who want great pictures and smooth games. It is a strong graphics card that makes games look and feel real.
Tip: When picking a graphics card, think about what you want to do. For games, get a gaming graphics card with high test scores and good value. For work, pick a workstation graphics card with ECC memory and special drivers.
Graphics Card Functions
Rendering
Rendering is the main job of a graphics card. It changes 3D models into 2D pictures for the screen. The graphics card does this in several steps:
-
The vertex shader changes 3D points so the system can use them.
-
Primitive assembly puts these points together to make shapes like triangles.
-
The geometry shader can add or change shapes for effects like shadows.
-
The rasterizer turns shapes into pixels for the screen.
-
Clipping takes away parts that will not be seen.
-
The fragment shader picks colors for each pixel and adds textures and light.
-
Alpha testing and blending handle see-through parts and how things overlap.
This process lets computers show strong graphics. It helps games and video editing look good. The graphics card makes sure each frame is smooth and real.
Acceleration
Graphics acceleration means the graphics card does hard jobs instead of the CPU. The GPU works on things like textures and lighting. This lets the CPU do other things, so the computer works faster. Graphics acceleration uses many small cores to do lots of jobs at once. This is called parallelism.
-
Hardware acceleration lets the graphics card handle lots of data fast.
-
Things like CUDA and ray tracing make graphics and videos even quicker.
-
In video editing, graphics acceleration helps with effects, color changes, and fast previews.
Tip: Graphics acceleration is important for smooth games, quick video editing, and great graphics.
Applications
Many programs need strong graphics cards. These include:
-
Gaming and making graphics
-
Editing videos and making content
-
Artificial intelligence and machine learning
-
Medical pictures and science work
-
Virtual desktops and remote work
-
Bitcoin mining and hard math
Graphics cards help programs that use DirectX, OpenGL, and other tools. They let many users share the GPU and help servers work faster. Video editing, AI, and design all need the graphics card’s power. These features help users get the best results for their needs.
Graphics Processing Unit Architecture
Components
A modern graphics processing unit has many important parts. Each part helps the GPU work fast and handle hard graphics. The table below lists the main parts and what they do:
| Component | Function |
|---|---|
| Compute Units (SMs) | Run many jobs at once and handle shader programs. |
| Special Function Units | Do hard math like division and trigonometry. |
| Memory Controllers | Control fast access to video memory. |
| On-Chip Cache | Make data faster to get and lower wait time. |
| Gigathread Engine | Handles lots of jobs and groups of cores. |
| PCIe & NVLink Interfaces | Connect the GPU to the computer and other GPUs. |
| Display Outputs | Connect the graphics card to screens using HDMI or DisplayPort. |
| Voltage Regulator Module | Gives the GPU the right amount of power. |
| Heatsink & Fans | Keep the GPU cool when it is working hard. |
Video memory, called VRAM, stores textures and frame buffers. It also keeps other data for the GPU. VRAM is faster than system RAM. It lets the GPU read and write at the same time. More VRAM helps the graphics card show higher resolutions and more details. For example, 4 GB of VRAM is good for 1080p games. 8 GB or more is better for 4K games and pro work.
Parallelism
GPU architecture uses parallelism to do many jobs at once. A CPU has only a few strong cores. A graphics processing unit has thousands of small cores. These small cores work together to handle lots of data. The GPU puts threads into blocks and grids. This lets it run many instructions at the same time. This design makes the GPU much faster for graphics and science work.
-
Parallel processing lets the GPU do many jobs at once.
-
Each core does a small part of the work, making image and video tasks faster.
-
Tools like CUDA and OpenCL help developers use this parallel power.
This setup lets the GPU make images, use video memory, and run hard shaders quickly.
Rendering Methods
Graphics cards use different ways to render images. The method depends on their design. Immediate-mode rendering does the whole frame in one go. This is common in desktop GPUs. It is fast but uses more memory bandwidth. Tile-based rendering splits the frame into small tiles. The GPU works on each tile by itself and uses local memory. This saves memory and power, so it is used in mobile devices.
Tile-based rendering needs less video memory and uses less power. Immediate-mode rendering is best for fast desktops where speed is most important. Both ways help the graphics card show smooth images. How well they work depends on the device and the job.
Gaming and Professional Use
Gaming Performance
A dedicated graphics card is very important for gaming. It helps games look smooth and run fast. People use tests called benchmarks to see how good a graphics card is. Some benchmarks are PassMark’s PerformanceTest and tests in games like Red Dead Redemption 2, Horizon Zero Dawn, and Shadow of the Tomb Raider. These tests check frame rates, ray tracing, and how well the card handles hard scenes.
Both gaming consoles and computers use dedicated graphics cards. This helps them show sharp images and high frame rates. The table below shows how different graphics cards do at different screen resolutions:
| GPU Model | 1080p Frame Rate | 1440p Frame Rate | 4K Frame Rate | Ray Tracing Capability | AI Upscaling Features |
|---|---|---|---|---|---|
| NVIDIA RTX 4090 | 300+ fps | 200+ fps | 120+ fps | Excellent | DLSS 3.5 with Frame Generation |
| NVIDIA RTX 4080 Super | 250+ fps | 160+ fps | 90+ fps | Very Good | DLSS 3.5 with Frame Generation |
| AMD RX 7900 XTX | 270+ fps | 170+ fps | 95+ fps | Good | FSR 3 with Frame Generation |
| NVIDIA RTX 4070 Ti Super | 220+ fps | 140+ fps | 70+ fps | Good | DLSS 3.5 with Frame Generation |
| AMD RX 7800 XT | 200+ fps | 120+ fps | 60+ fps | Adequate | FSR 3 |
| NVIDIA RTX 4060 Ti | 180+ fps | 100+ fps | 45+ fps | Adequate | DLSS 3 |
| AMD RX 7600 | 160+ fps | 90+ fps | 40+ fps | Basic | FSR 3 |
| NVIDIA RTX 4060 | 150+ fps | 85+ fps | 35+ fps | Basic | DLSS 3 |
| AMD RX 6600 | 130+ fps | 70+ fps | 30+ fps | Limited | FSR 2 |
It is important to match the graphics card with the monitor. For example, a 4K 144Hz monitor needs a strong card to reach 144 fps. Features like G-Sync and FreeSync help keep pictures smooth and stop screen tearing. VRAM is also important: 8GB is enough for 1080p, but 16GB or more is better for 4K and new games.
Tip: Gaming consoles use dedicated graphics cards. This helps games look real and run smoothly.
Professional Workloads
Dedicated graphics cards are also used for work. They help with 3D modeling, video editing, AI, and science jobs. Professional cards focus on being stable and correct. They use ECC memory to stop mistakes and have special drivers for programs like CAD and science tools.
| Feature | Professional Graphics Cards (Workstation) | Gaming Graphics Cards |
|---|---|---|
| Memory Type | ECC (Error Correcting Code) memory for higher accuracy and error correction | Non-ECC memory prioritizing speed over accuracy |
| Firmware/BIOS Tuning | Tuned for stability and precision | Tuned for speed and performance |
| Drivers | Optimized for professional applications like CAD, 3D modeling, scientific calculations | Optimized for gaming performance and high frame rates |
| API Support | Supports professional APIs (OpenGL, Vulkan, DirectX for design) | Optimized for gaming APIs |
| Use Case Focus | Stability and accuracy critical for professional workloads | Speed and smooth gameplay prioritized |
Professional jobs need cards with high memory bandwidth, lots of VRAM, and strong compute power. The table below lists some top choices:
| GPU Model | Memory Bandwidth & VRAM | Power Consumption | Workload Support & Features | Clock Speeds (Base/Boost) |
|---|---|---|---|---|
| Nvidia A100 Tensor | 1.94 TB/s, 80 GB | 300W | Double precision, AI/ML workloads, Multi-Instance GPU partitioning, ECC memory | 1065 MHz / 1410 MHz |
| Nvidia A30 Tensor | 933 GB/s, 24 GB | 165W | Double precision, AI/ML workloads, ECC memory | 930 MHz / 1440 MHz |
| AMD Radeon RX 7900 XTX | 960 GB/s, 24 GB | 355W | 4K gaming, ML training, HPC, real-time ray tracing | 2500 MHz |
| Nvidia RTX 4080 | 716 GB/s, 16 GB | 320W | High-res gaming, streaming, efficient Ada Lovelace architecture, RT/DLSS-enabled rendering | 2205 MHz / 2535 MHz |
Workstation GPUs can use many monitors, hardware virtualization, and have longer warranties. They give steady results for 3D modeling, simulations, and science math. These cards help workers finish hard projects quickly and correctly.
A graphics card is very important for computer pictures, games, and work tasks. Knowing how it is built and how it makes images helps people pick the best one. The table below shows what matters most for games and work:
| Factor | Professional Use Considerations | Gaming Considerations |
|---|---|---|
| Performance Requirements | Emphasis on CUDA Cores, Tensor Cores, Ray Tracing Cores, multi-GPU interconnects for rendering, ML, deep learning | Focus on clock speed, memory bandwidth, ray tracing capabilities for smooth gameplay and visuals |
| Memory Capacity | High VRAM with advanced memory architectures to handle large datasets and textures | Sufficient VRAM for high-resolution textures and frame buffers |
| Software Compatibility | Compatibility with professional software and frameworks | Compatibility with gaming APIs and drivers |
People should look at test results and compare parts before buying. They should also think about how the card stays cool. Tools like 3DMark, GPU-Z, and company websites help people choose well. 🖥️
FAQ
What is VRAM and why does it matter?
VRAM means Video Random Access Memory. It holds pictures, textures, and frame data for the GPU. More VRAM lets the graphics card show better images. It also helps games run at higher settings.
Can you upgrade a graphics card in any computer?
Most desktop computers let you change the graphics card. Laptops and small devices usually do not. Always check the power supply, space, and if the new card fits before you buy.
How does a graphics card affect gaming?
A strong graphics card gives higher frame rates. It also makes graphics look better. Games run smoother and look more real. Gamers see less lag and fewer problems.
Do all programs need a dedicated graphics card?
Most simple programs like web browsers and office tools work fine with integrated graphics. Programs for gaming, video editing, and 3D design need a dedicated graphics card to work best.
What brands make popular graphics cards?
| Brand | Common Series |
|---|---|
| NVIDIA | GeForce, Quadro, RTX |
| AMD | Radeon, RX, Pro |
| Intel | Arc, Iris Xe |
These brands make cards for gaming, work, and general use.
Written by Jack Elliott from AIChipLink.
AIChipLink, one of the fastest-growing global independent electronic components distributors in the world, offers millions of products from thousands of manufacturers, and many of our in-stock parts is available to ship same day.
We mainly source and distribute integrated circuit (IC) products of brands such as Broadcom, Microchip, Texas Instruments, Infineon, NXP, Analog Devices, Qualcomm, Intel, etc., which are widely used in communication & network, telecom, industrial control, new energy and automotive electronics.
Empowered by AI, Linked to the Future. Get started on AIChipLink.com and submit your RFQ online today!
