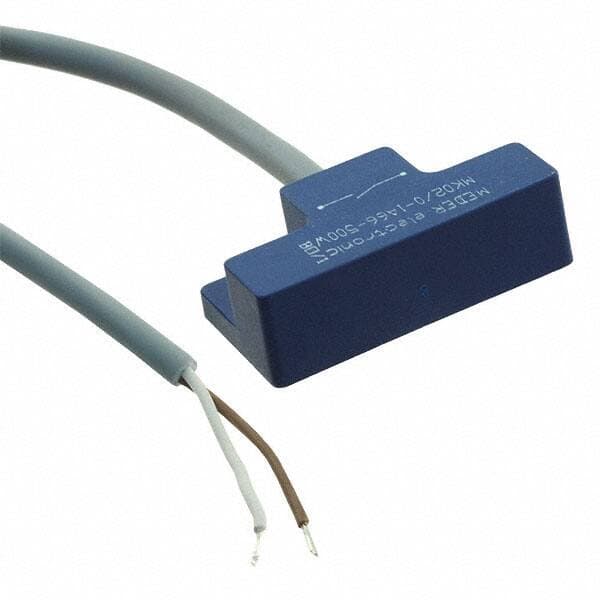

Standex MK02/0-1A66-500W

Manufacturer No:

MK02/0-1A66-500W

Manufacturer:

Standex

Package:

Molded Body

Description:

MK02 Series Reed Switch Cable Leads SPST-NO Magnet -30°C~80°C TA 10mm Height Molded Body

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MK02/0-1A66-500W information

Standex MK02/0-1A66-500W technical specifications, attributes, parameters and parts with similar specifications to Standex MK02/0-1A66-500W.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Flanges

Package / Case
Molded Body

Actuator Material
Magnet

Operating Temperature
-30°C~80°C TA

Series
MK02

Published
2003

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Cable

Type
Reed Switch

Additional Feature
IT ALSO OPERATES AT -5 TO 80 DEGREE CENTIGRADE

Current Rating
1.25A

Termination Style
Cable Leads

Body Breadth
16.8 mm

Output Type
SPST-NO

Lead Length
500mm

Operating Supply Voltage
200V

Supply Voltage-Max (Vsup)
180V

Contact Resistance
150mOhm

Nominal Supply Current
500mA

Throw Configuration
SPST

Max Voltage Rating (DC)
200V

Response Time
100 µs

Sensing Method
Magnetic

Housing
PBT GLASS FIBRE REINFORCED

Measurement Range-Max
10 mm

Measurement Range-Min
4.5 mm

Width
32.4mm

Body Height
10mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Standex MK02/0-1A66-500W.

Datasheets:

standexmederelectronics-mk0201a66500w-datasheets-0020.pdf

standexmederelectronics-mk0201a66500w-datasheets-2736.pdf

standexmederelectronics-mk0201a66500w-datasheets-2737.pdf

standexmederelectronics-mk0201a66500w-datasheets-2738.pdf

standexmederelectronics-mk0201a66500w-datasheets-2739.pdf

MK02/0-1A66-500W Overview

Molded Body packages are used to package the magnetic position sensor modules. If the magnetic position sensors are operating, their supply voltage should be 200V. Generally, this sensor modules will draw 500mA current. A sensor module's maximum voltage should be 180V when it is operating.

MK02/0-1A66-500W Features

Package / Case: Molded Body
MK02 Series
Operating Temperature: -30°C~80°C TA
Operating Supply Voltage: 200V
Response Time: 100 µs

MK02/0-1A66-500W Applications

There are a lot of Standex-Meder Electronics
MK02/0-1A66-500W Magnetic Position Sensors Modules applications.

Wiper home/end position sensor
End of travel and index sensors
Industrial controls
White goods
Position and limit sensing
RPM measurement
Flow metering
Commutation of brushless DC motors
Factory automation
Angle sensing
