Microchip LAN9500I-ABZJ-TR
Manufacturer No:
LAN9500I-ABZJ-TR
Manufacturer:
Package:

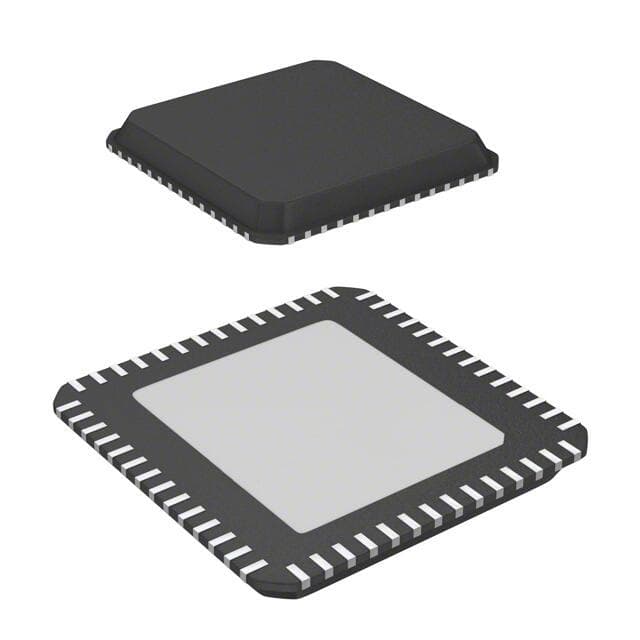

56-VFQFN Exposed Pad
Description:
CMOS USB 2.0, 10/100 Base-T/TX PHY USB Controllers Interface ICs QUAD LAN9500 56 Pins Bridge, USB to Ethernet 0.5mm 56-VFQFN Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
LAN9500I-ABZJ-TR information
Microchip LAN9500I-ABZJ-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip LAN9500I-ABZJ-TR.
| Type | Parameter |
|---|---|
| Factory Lead Time | 26 Weeks |
| Mount | Surface Mount |
| Package / Case | 56-VFQFN Exposed Pad |
| Number of Pins | 56 |
| Operating Temperature | -40°C~85°C |
| Packaging | Tape & Reel (TR) |
| Published | 2010 |
| JESD-609 Code | e3 |
| Part Status | Obsolete |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Number of Terminations | 56 |
| Terminal Finish | Matte Tin (Sn) - annealed |
| HTS Code | 8542.31.00.01 |
| Technology | CMOS |
| Terminal Position | QUAD |
| Peak Reflow Temperature (Cel) | 260 |
| Supply Voltage | 3.3V |
| Terminal Pitch | 0.5mm |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Base Part Number | LAN9500 |
| Function | Bridge, USB to Ethernet |
| Operating Supply Voltage | 3.3V |
| Supply Voltage-Max (Vsup) | 3.6V |
| Interface | USB |
| Type | Parameter |
|---|---|
| uPs/uCs/Peripheral ICs Type | SERIAL IO/COMMUNICATION CONTROLLER, LAN |
| Clock Frequency | 25MHz |
| Protocol | Ethernet |
| Boundary Scan | YES |
| Low Power Mode | YES |
| Number of Serial I/Os | 4 |
| Standards | USB 2.0, 10/100 Base-T/TX PHY |
| Data Transfer Rate-Max | 60 MBps |
| Length | 8mm |
| Height Seated (Max) | 1mm |
| Width | 8mm |
| Radiation Hardening | No |
| RoHS Status | ROHS3 Compliant |
