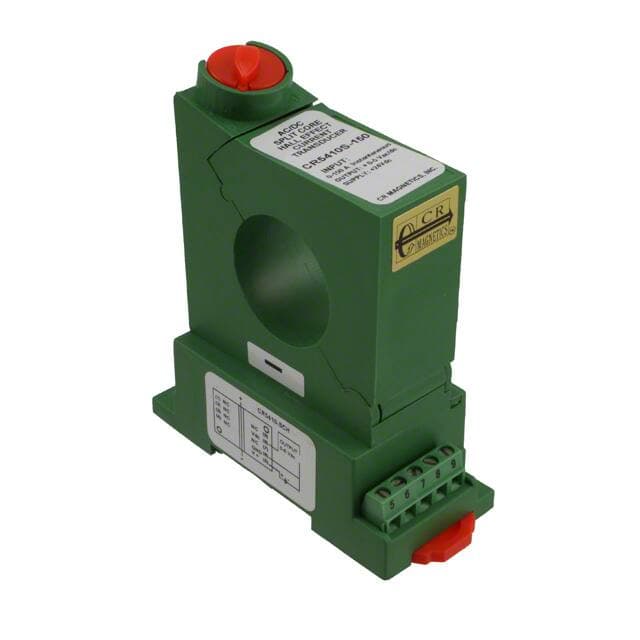

CR Magnetics Inc. CR5410S-150

Manufacturer No:

CR5410S-150

Manufacturer:

CR Magnetics Inc.

Package:

Module

Description:

CR5410S Series Hall Effect, Closed Loop Sensor 1-Channel Bidirectional 0°C~50°C 24V DC~4kHz 150A Accuracy-±1%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CR5410S-150 information

CR Magnetics Inc. CR5410S-150 technical specifications, attributes, parameters and parts with similar specifications to CR Magnetics Inc. CR5410S-150.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
DIN Rail, Panel

Mounting Type
DIN Rail, Panel

Package / Case
Module

Operating Temperature
0°C~50°C

Packaging
Bulk

Series
CR5410S

Published
2014

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
50°C

Min Operating Temperature
0°C

Voltage - Supply
24V

Frequency
DC~4kHz

Output
Ratiometric, Voltage

Current - Supply (Max)
35mA

Polarity
Bidirectional

Number of Channels
1

Polarization
Bidirectional

Max Supply Current
35mA

Accuracy
±1%

Sensor Type
Hall Effect, Closed Loop

For Measuring
AC/DC

Current - Sensing
150A

Download datasheets and manufacturer documentation for CR Magnetics Inc. CR5410S-150.

CR5410S-150 Overview

As a safety precaution, current sensors are placed in Module packages. Bulk protects the current sensors from damage. There should be 35mA maximum current supplied by these current sensors. If the current supplied by the current sensor is greater than 35mA, then the sensor should be faulty. It is essential that these current sensors work at a temperature above 0°C. It is important to set the maximum operating temperature of the current sensors to 50°C.

CR5410S-150 Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: 0°C~50°C
1 Channels
Mounting Type: DIN Rail, Panel
Sensor Type: Hall Effect, Closed Loop
Supply Voltage: 24V
Frequency: DC~4kHz
Sensing Current: 150A
Module Package

CR5410S-150 Applications

There are a lot of CR Magnetics Inc.
CR5410S-150 Current Sensors applications.

Overcurrent protection
DC and AC power monitoring
Closed-L oop DC- and AC-Current Sensor Modules
Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
