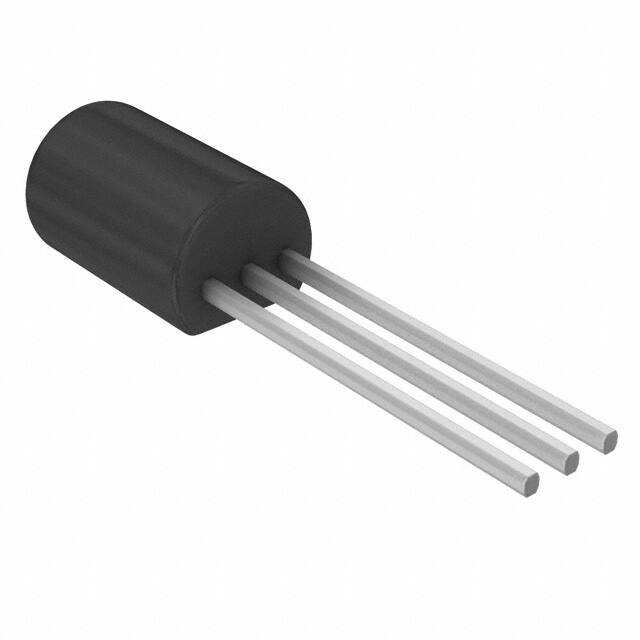

Manufacturer No:

2SA2127

Manufacturer:

ONSEMI

Package:

TO-226-3, TO-92-3 Long Body

Description:

PNP 150°C TJ 1?A ICBO 1 Elements 3 Terminations SILICON PNP TO-226-3, TO-92-3 Long Body Bulk Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2SA2127 information

ONSEMI 2SA2127 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI 2SA2127.

  • Type
  • Parameter
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-226-3, TO-92-3 Long Body
  • Surface Mount
  • NO
  • Number of Pins
  • 3
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • 150°C TJ
  • Packaging
  • Bulk
  • Published
  • 2012
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Copper/Silver/Nickel (Sn/Cu/Ag/Ni)
  • Subcategory
  • Other Transistors
  • Max Power Dissipation
  • 1W
  • Terminal Position
  • BOTTOM
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 3
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Transistor Application
  • SWITCHING
  • Gain Bandwidth Product
  • 420MHz
  • Transistor Type
  • PNP
  • Collector Emitter Voltage (VCEO)
  • 400mV
  • Max Collector Current
  • 2A
  • DC Current Gain (hFE) (Min) @ Ic, Vce
  • 200 @ 100mA 2V
  • Current - Collector Cutoff (Max)
  • 1?A ICBO
  • JEDEC-95 Code
  • TO-226AE
  • Vce Saturation (Max) @ Ib, Ic
  • 400mV @ 50mA, 1A
  • Collector Emitter Breakdown Voltage
  • 50V
  • Current - Collector (Ic) (Max)
  • 2A
  • Transition Frequency
  • 420MHz
  • Collector Emitter Saturation Voltage
  • -200mV
  • Collector Base Voltage (VCBO)
  • -50V
  • Emitter Base Voltage (VEBO)
  • -6V
  • hFE Min
  • 200
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ONSEMI 2SA2127.

Datasheets:

2SA2127 Overview


This device has a DC current gain of 200 @ 100mA 2V, which is the ratio between the base current and the collector current.This design offers maximum flexibility with a collector emitter saturation voltage of -200mV.A VCE saturation (Max) of 400mV @ 50mA, 1A means Ic has reached its maximum value(saturated).A high level of efficiency can be achieved if the base voltage of the emitter remains at -6V.As you can see, the part has a transition frequency of 420MHz.A maximum collector current of 2A volts is possible.

2SA2127 Features


the DC current gain for this device is 200 @ 100mA 2V
a collector emitter saturation voltage of -200mV
the vce saturation(Max) is 400mV @ 50mA, 1A
the emitter base voltage is kept at -6V
a transition frequency of 420MHz


2SA2127 Applications


There are a lot of ON Semiconductor
2SA2127 applications of single BJT transistors.


  • Inverter
  • Interface
  • Driver
  • Muting

User Guide
