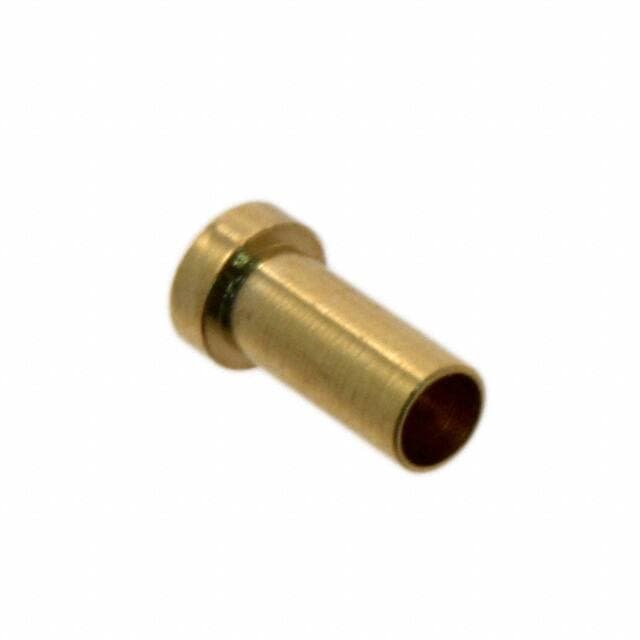

Mill-Max Manufacturing Corp. 0305-2-15-15-47-27-10-0

Manufacturer No:

0305-2-15-15-47-27-10-0

Manufacturer:

Mill-Max Manufacturing Corp.

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

0305-2-15-15-47-27-10-0 information

Mill-Max Manufacturing Corp. 0305-2-15-15-47-27-10-0 technical specifications, attributes, parameters and parts with similar specifications to Mill-Max Manufacturing Corp. 0305-2-15-15-47-27-10-0.

Type
Parameter

Factory Lead Time
5 Weeks

Contact Material
Beryllium Copper

Mounting Hole Diameter
0.061 (1.55mm)

Operating Temperature
-55°C~125°C

Packaging
Bulk

Series
305

Published
2010

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
PCB, Socket

HTS Code
8536.90.40.00

Current Rating
4.5A

Number of Contacts
1

Plating
Gold

Terminal and Terminal Block Type
PCB TERMINAL

Hole Diameter
1.55 mm

Flange Diameter
0.076 (1.93mm)

Outside Diameter
1.93 mm

Tail Type
No Tail

Accepts Pin Diameter
0.025 ~ 0.037 (0.64mm ~ 0.94mm)

Socket Depth
0.155 3.94mm

Accepts Square Pin Size
0.025 0.64mm

Length
3.937mm

Contact Finish Thickness
30.0?in 0.76?m

Length - Overall
0.155 3.94mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Mill-Max Manufacturing Corp. 0305-2-15-15-47-27-10-0.

Environmental Information:

millmaxmanufacturingcorp-1508057150000030-environmentalinformation-3744.pdf

Mill-Max Terminals - PC Pin Receptacles, Socket Connectors 0305-2-15-15-47-27-10-0 are a type of electrical connector designed for use in printed circuit boards (PCBs). They feature a 0.025 to 0.037 inch solder tail and 15 pins. The pins are arranged in a rectangular pattern, with a 0.047 inch pitch between each pin. The terminals are made from high-quality materials, such as brass and gold-plated contacts, to ensure reliable electrical connections.

These terminals are designed for use in a variety of applications, including data and signal transmission, power distribution, and circuit protection. They are also suitable for use in high-density applications, such as in mobile phones and other handheld devices. The terminals are RoHS compliant and UL listed, making them suitable for use in a wide range of industries.

The Mill-Max Terminals - PC Pin Receptacles, Socket Connectors 0305-2-15-15-47-27-10-0 are easy to install and require minimal maintenance. They are also highly reliable and durable, making them a great choice for a variety of applications.
