Introduction

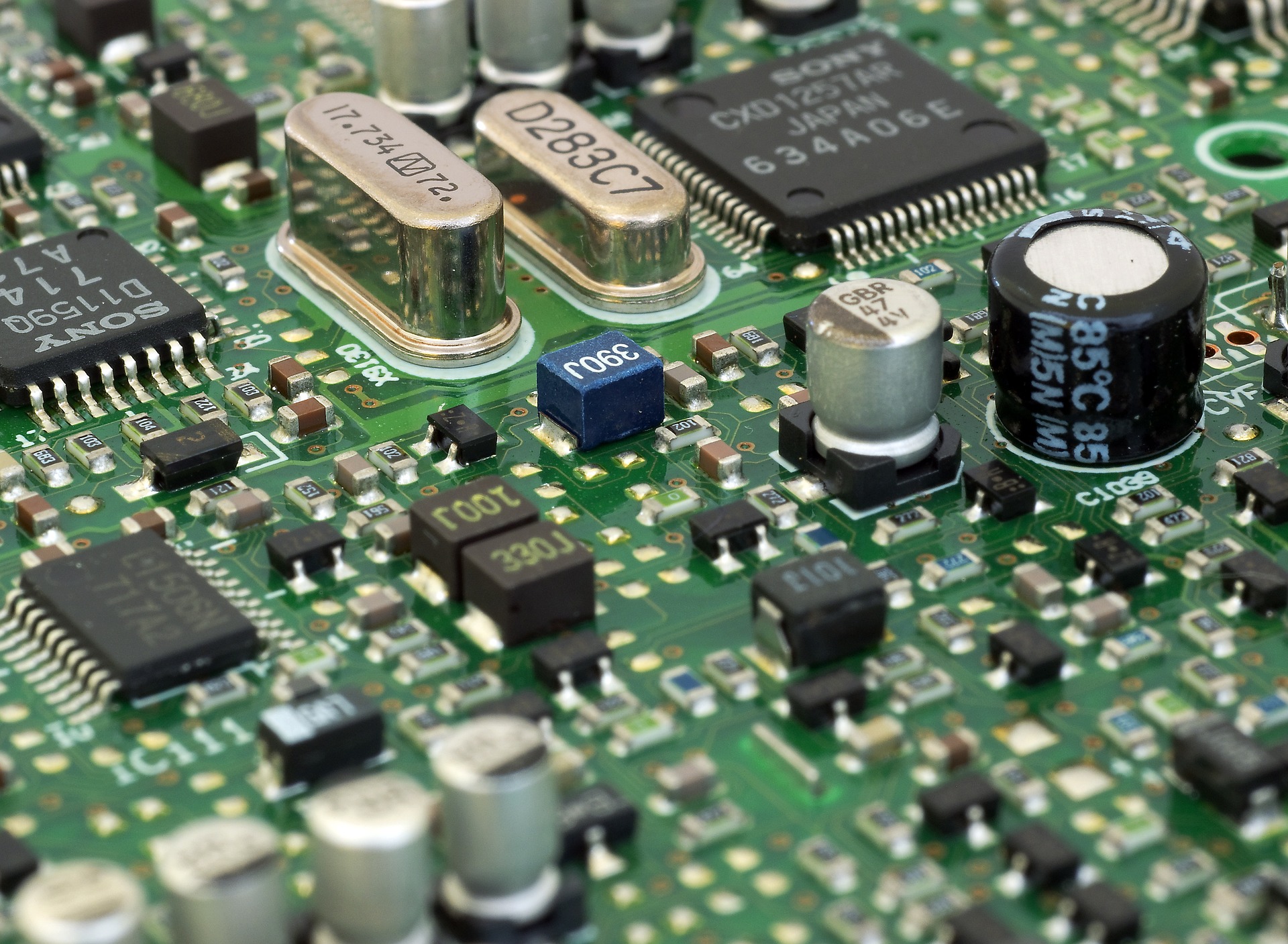

An integrated circuit (IC), also known as a microchip or simply chip, is a set of electronic circuits, consisting of various electronic components (such as transistors, resistors, and capacitors) and their interconnections. These components are etched onto a small, flat piece ("chip") of semiconductor material, usually silicon. Integrated circuits are used in a wide range of electronic devices, including computers, smartphones, and televisions, to perform various functions such as processing and storing information. They have greatly impacted the field of electronics by enabling device miniaturization and enhanced functionality.
Integrated circuits are orders of magnitude smaller, faster, and less expensive than those constructed of discrete components, allowing a large transistor count.
The IC's mass production capability, reliability, and building-block approach to integrated circuit design have ensured the rapid adoption of standardized ICs in place of designs using discrete transistors. ICs are now used in virtually all electronic equipment and have revolutionized the world of electronics. Computers, mobile phones, and other home appliances are now essential parts of the structure of modern societies, made possible by the small size and low cost of ICs such as modern computer processors and microcontrollers.
Very-large-scale integration was made practical by technological advancements in semiconductor device fabrication. Since their origins in the 1960s, the size, speed, and capacity of chips have progressed enormously, driven by technical advances that fit more and more transistors on chips of the same size – a modern chip may have many billions of transistors in an area the size of a human fingernail. These advances, roughly following Moore's law, make the computer chips of today possess millions of times the capacity and thousands of times the speed of the computer chips of the early 1970s.
ICs have three main advantages over circuits constructed out of discrete components: size, cost and performance. The size and cost is low because the chips, with all their components, are printed as a unit by photolithography rather than being constructed one transistor at a time. Furthermore, packaged ICs use much less material than discrete circuits. Performance is high because the IC's components switch quickly and consume comparatively little power because of their small size and proximity. The main disadvantage of ICs is the high initial cost of designing them and the enormous capital cost of factory construction. This high initial cost means ICs are only commercially viable when high production volumes are anticipated.

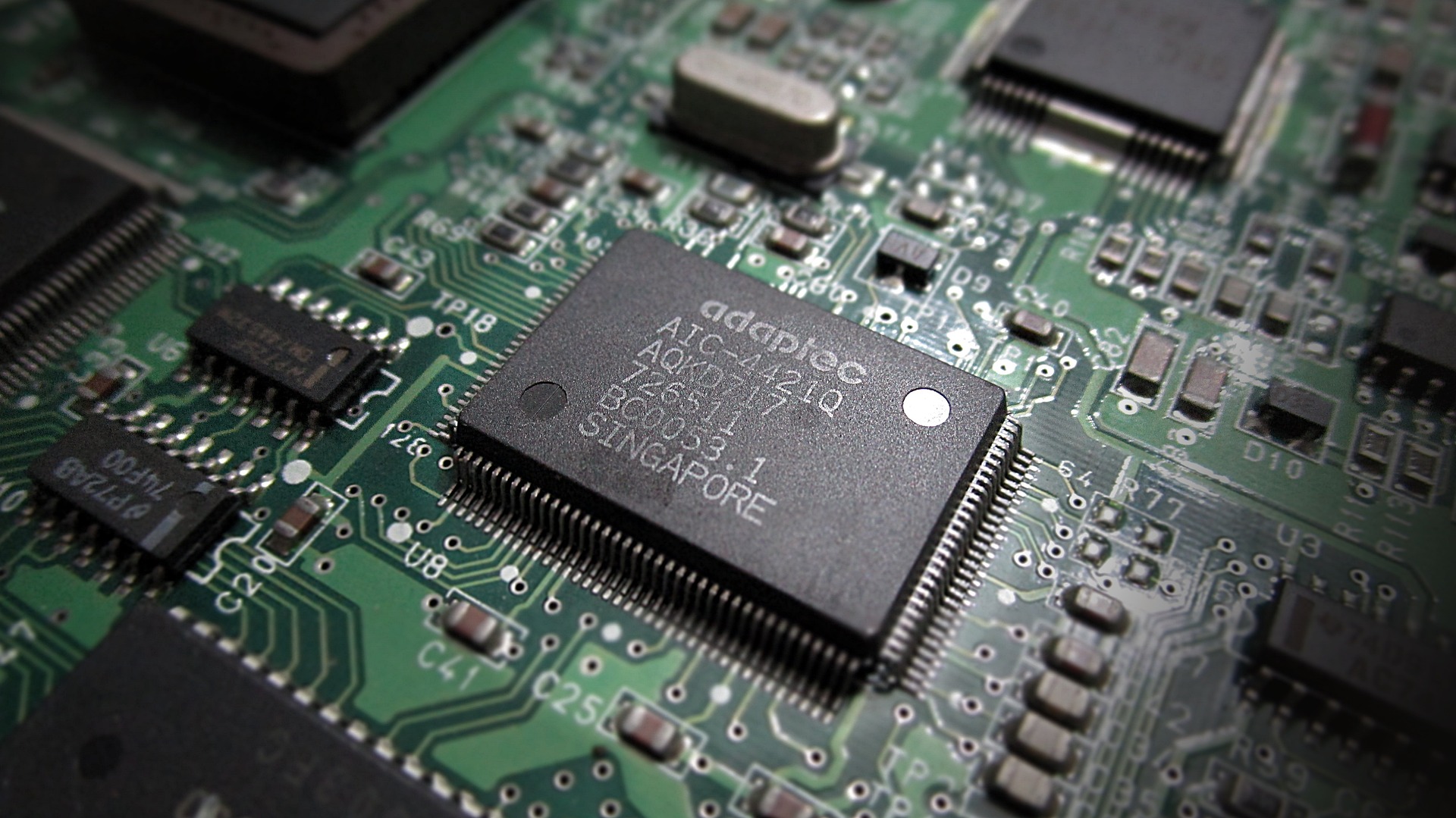

What Is an Integrated Circuit(IC)
An integrated circuit is defined as:
A circuit in which all or some of the circuit elements are inseparably associated and electrically interconnected so that it is considered to be indivisible for the purposes of construction and commerce.
In strict usage, integrated circuit refers to the single-piece circuit construction originally known as a monolithic integrated circuit, which comprises a single piece of silicon. In general usage, circuits not meeting this strict definition are sometimes referred to as ICs, which are constructed using many different technologies, e.g. 3D IC, 2.5D IC, MCM, thin-film transistors, thick-film technologies, or hybrid integrated circuits. The choice of terminology frequently appears in discussions related to whether Moore's Law is obsolete.
Integrated circuits can be broadly classified into analog, digital and mixed signal consisting of analog and digital signaling on the same IC.
Digital integrated circuits can contain billions of logic gates, flip-flops, multiplexers, and other circuits in a few square millimeters. The small size of these circuits allows high speed, low power dissipation, and reduced manufacturing cost compared with board-level integration. These digital ICs, typically microprocessors, DSPs, and microcontrollers, use boolean algebra to process "one" and "zero" signals.
Among the most advanced integrated circuits are the microprocessors or "cores", used in personal computers, cell-phones, etc. Several cores may be integrated together in a single IC or chip. Digital memory chips and application-specific integrated circuits (ASICs) are examples of other families of integrated circuits.
Different Types of IC
In the 1980s, programmable logic devices were developed. These devices contain circuits whose logical function and connectivity can be programmed by the user, rather than being fixed by the integrated circuit manufacturer. This allows a chip to be programmed to do various LSI-type functions such as logic gates, adders and registers. Programmability comes in various forms – devices that can be programmed only once, devices that can be erased and then re-programmed using UV light, devices that can be (re)programmed using flash memory, and field-programmable gate arrays (FPGAs) which can be programmed at any time, including during operation. Current FPGAs can (as of 2016) implement the equivalent of millions of gates and operate at frequencies up to 1 GHz.
Analog ICs, such as sensors, power management circuits, and operational amplifiers (op-amps), process continuous signals, and perform analog functions such as amplification, active filtering, demodulation, and mixing.
ICs can combine analog and digital circuits on a chip to create functions such as analog-to-digital converters and digital-to-analog converters. Such mixed-signal circuits offer smaller size and lower cost, but must account for signal interference. Prior to the late 1990s, radios could not be fabricated in the same low-cost CMOS processes as microprocessors. But since 1998, radio chips have been developed using RF CMOS processes. Examples include Intel's DECT cordless phone, or 802.11 (Wi-Fi) chips created by Atheros and other companies.
Modern electronic component distributors often further sub-categorize integrated circuits:
• Digital ICs are categorized as logic ICs (such as microprocessors and microcontrollers), memory chips (such as MOS memory and floating-gate memory), interface ICs (level shifters, serializer/deserializer, etc.), power management ICs, and programmable devices.
• Analog ICs are categorized as linear integrated circuits and RF circuits (radio frequency circuits).
• Mixed-signal integrated circuits are categorized as data acquisition ICs (including A/D converters, D/A converters, digital potentiometers), clock/timing ICs, switched capacitor (SC) circuits, and RF CMOS circuits.
• Three-dimensional integrated circuits (3D ICs) are categorized into through-silicon via (TSV) ICs and Cu-Cu connection ICs.
Integrated Circuit Function
Beyond their essential role in electronic boards, integrated circuits (ICs), colloquially known as chips, perform a diverse array of functions integral to the seamless operation of electronic devices. These functions span a spectrum of applications, making ICs a cornerstone of modern electronics.
One primary function of integrated circuits is amplification. Acting as amplifiers, ICs enhance the strength of electrical signals, ensuring that they reach desired levels for further processing. This capability is crucial in a wide range of electronic applications, from audio systems to telecommunications.
Additionally, integrated circuits function as oscillators, generating periodic waveforms such as sine, square, or triangle waves. This oscillatory capability is pivotal in various applications, including clock circuits, frequency synthesis, and signal modulation.
Counting and measurement tasks are facilitated by ICs acting as counters. These circuits tally input signals and provide a reliable means of keeping track of events, an essential function in applications like digital clocks, timers, and industrial automation.
Voltage regulation is another critical role performed by integrated circuits. As voltage regulators, ICs ensure a stable and constant voltage output, safeguarding electronic components from fluctuations in power supply. This function is fundamental in maintaining the integrity and reliability of electronic devices.
Integrated circuits also serve as timers, providing precise control over time intervals in electronic systems. This functionality is indispensable in applications such as pulse-width modulation, where the duration of pulses needs precise regulation. Moreover, the memory function of integrated circuits is pivotal in storing and retrieving data. From RAM (Random Access Memory) to ROM (Read-Only Memory), ICs contribute significantly to data storage and retrieval in electronic systems.
One of the notable advantages of integrated circuits is their ability to replace discrete component-based circuits. By integrating multiple components onto a single chip, ICs not only enhance the efficiency of electronic systems but also contribute to a reduction in size, weight, and power consumption.
Different Types of IC Technologies
• Small Scale Integration (SSI)
Small Scale Integration involves the integration of 1 to 100 transistors on a single chip. This level of integration is suitable for fundamental electronic components such as logic gates, Operational Amplifiers (Op-Amp), and Flip-flops. SSI circuits form the foundational building blocks for more complex integrated circuits.
• Medium Scale Integration (MSI)
Medium Scale Integration takes the integration a step further, incorporating 100 to 1000 transistors on a single chip. This allows for the creation of more advanced components, including Counters, Multiplexers (MUX), Adders, and 4-bit Microprocessors (µPs). MSI circuits play a pivotal role in constructing moderately complex digital systems.
• Large Scale Integration (LSI)
Large Scale Integration involves integrating 1000 to 10,000 transistors on a single chip. This level of integration enables the development of more sophisticated components, such as 8-bit Microprocessors (µPs), Read-Only Memory (ROM), and Random-Access Memory (RAM). LSI circuits are instrumental in the creation of advanced electronic systems.
• Very Large Scale Integration (VLSI)
Very Large Scale Integration signifies the integration of 10,000 to 1 million transistors on a single chip. This level of integration facilitates the creation of even more complex components, including 16-bit and 32-bit Microprocessors (µPs) and the implementation of Complementary Metal-Oxide-Semiconductor (CMOS) circuits. VLSI circuits are integral to the development of high-performance electronic devices.
• Ultra Large Scale Integration (ULSI)
Ultra Large Scale Integration involves the integration of 1 million to 10 million transistors on a single chip. This level of integration is particularly significant in the development of advanced microprocessor architectures, exemplified by processors like the Pentium series. ULSI circuits empower the creation of cutting-edge and high-performance microelectronic systems.
• Giant Scale Integration (GSI)
Giant Scale Integration represents a stage where the integration reaches above 10 million transistors on a single chip. At this level, GSI is employed in the creation of highly sophisticated electronic systems, including Embedded Systems and Systems on Chip (SoC) designed for complex and demanding applications. GSI circuits are at the forefront of technology, enabling the realization of intricate and high-performance electronic devices.
Conclusion
Integrated circuits have transformed how we design and interact with technology, offering incredible functionality in a compact, efficient package.
From basic logic gates to advanced microprocessors, ICs have become indispensable in modern electronics. As we know IC is the heart of modern technology as we look into the future several indicators and trends are beginning to emerge first, Miniaturization of ICs is expected to grow which is often referred to as Moores's law which states that the size of the transistor on any chip will become half approximately two years once.
Secondly, Integrating ICs with Artificial Intelligence (AI) becoming increasingly prevalent that is AI has the potential ability to revolutionize the operations and functioning of IC and that could lead to improvement in efficiency and performance. Thirdly, smart devices are interconnected nowadays which enables the rise of the Internet of Things (IoT) which increases the demand for ICs.
FAQ:
1. How does an IC work?
An IC works by integrating various electronic components onto a semiconductor material, typically made of silicon. The components are interconnected through a complex network of pathways etched onto the chip's surface. These pathways allow electrical signals to flow between the components, enabling the IC to perform specific functions, such as processing data, amplifying signals, or storing information.
2. What are the advantages of using ICs?
Using ICs offers several advantages. First, they greatly reduce the size of electronic circuits compared to discrete components. Second, ICs are more reliable since they are less prone to loose connections or faulty wiring. Third, they consume less power and generate less heat, making them energy efficient. Finally, ICs can be mass-produced at a lower cost, making electronic devices more affordable for consumers.
3. What are the different types of ICs?
There are various types of ICs, each designed for specific purposes. Some common types include microprocessors, memory chips, digital logic ICs, analog ICs, and application-specific integrated circuits (ASICs). Microprocessors serve as the "brain" of a computer, while memory chips store data and instructions. Digital logic ICs perform logical operations, analog ICs handle continuous signals, and ASICs are customized ICs tailored for specific applications, such as smartphones or automotive systems.
4. What are some examples of IC applications?
ICs are used in a wide range of applications across various industries. They power our smartphones, computers, televisions, and other consumer electronics. They are also essential in industries like automotive, aerospace, healthcare, and telecommunications. ICs enable advancements in areas such as artificial intelligence, internet of things (IoT), virtual reality, and autonomous vehicles, to name just a few.
5. What is the difference between analog and digital ICs?
Analog ICs process continuous electrical signals, while digital ICs manipulate discrete binary data. Analog ICs are used for tasks such as amplifying and filtering signals, converting between analog and digital formats, or controlling motor speeds. Digital ICs, on the other hand, perform logical operations using binary data, enabling tasks such as arithmetic calculations, data storage, and communication between different digital devices.
6. What is the role of ICs in communication systems?
ICs play a vital role in communication systems by enabling the transmission and reception of signals. They are used in modems, wireless transceivers, routers, and other networking devices. ICs provide the necessary circuitry for encoding and decoding data, amplifying signals, and filtering noise. They help facilitate communication over various mediums, including wired and wireless connections, satellite links, and optical fiber networks.
7. What are some recent trends in IC technology?
Recent trends in IC technology include the development of smaller and more powerful chips, the integration of multiple functions onto a single chip, and the focus on energy efficiency. There is also a growing interest in specialized ICs for emerging technologies like artificial intelligence, machine learning, and edge computing. Additionally, advances in packaging technology, such as three-dimensional (3D) packaging and system-on-chip (SoC) designs, are enabling higher performance and more compact electronic devices.
8. What is the role of ICs in microprocessors?
ICs are the fundamental building blocks of microprocessors, which are the central processing units (CPUs) of computers and other digital devices. Microprocessors consist of millions or even billions of transistors and other components integrated onto a single chip. ICs in microprocessors handle tasks such as arithmetic and logical operations, data storage and retrieval, and control of various functions within the device. They enable the execution of instructions and the processing of data, making microprocessors the key component responsible for the device's computing power and performance.
9. How do memory chips work?
Memory chips are a type of IC specifically designed for data storage. They come in various forms, such as random-access memory (RAM), read-only memory (ROM), and flash memory. Memory chips work by using electronic circuits to store and retrieve data. In RAM, for example, data is stored in cells made up of transistors and capacitors. Each cell represents a bit of information, and the state of the transistor determines whether the bit is a 0 or a 1. When you access data from memory, the IC sends electrical signals to retrieve the stored information quickly.
10. What is the difference between volatile and non-volatile memory?
Volatile memory and non-volatile memory are two categories of memory chips. Volatile memory, like random-access memory (RAM), requires a continuous power supply to retain stored data. When the power is turned off, the data is lost. Non-volatile memory, such as read-only memory (ROM) and flash memory, retains data even when the power supply is removed. Non-volatile memory is commonly used for long-term storage, while volatile memory is used for temporary storage during active use.
11. How are ICs used in communication protocols like WiFi or Bluetooth®?
ICs play a crucial role in enabling wireless communication protocols like WiFi and Bluetooth®. These protocols require specialized ICs known as wireless transceivers. Transceivers are responsible for transmitting and receiving data wirelessly. They handle tasks such as modulation/demodulation of signals, frequency tuning, error correction, and encryption/decryption. These ICs allow devices to establish wireless connections, exchange data, and communicate seamlessly over short or long distances, depending on the specific protocol.
12. What is the significance of ICs in artificial intelligence (AI) applications?
ICs are vital in artificial intelligence (AI) applications, enabling the processing power required for complex AI algorithms and tasks. AI relies on large-scale computations and data processing, which ICs, particularly specialized chips like graphics processing units (GPUs) and tensor processing units (TPUs), are designed to handle efficiently. These ICs excel at performing parallel computations and accelerating AI workloads, enabling tasks such as machine learning, deep learning, natural language processing, and computer vision.
13. How are ICs used in automotive systems?
ICs play a critical role in automotive systems, powering various functions and features in modern vehicles. They are used in engine control units (ECUs) to monitor and control engine performance, anti-lock braking systems (ABS) for safe braking, airbag systems for occupant safety, infotainment systems for entertainment and connectivity, and many other subsystems. ICs enable communication between different components, provide data processing capabilities, and enhance vehicle performance, efficiency, and safety.
