What Is SMT Surface Mount Technology Video Guide

Surface mount technology, known as SMT, allows you to place electronic components directly onto a circuit board. You’ll find SMT in a wide range of devices, including smartphones and electric cars. SMT enables devices to be smaller, faster, and more reliable compared to traditional methods. Today, nearly 70% of all circuit boards use surface mount technology. This major shift occurred because of the demand for smaller designs and faster production. In the What-Is-SMT-Surface-Mount-Technology-Vedio, you can watch a video that clearly demonstrates each step of the SMT process.

Key Takeaways

Surface Mount Technology (SMT) puts small electronic parts on circuit boards. This helps make devices smaller and work faster.
SMT uses machines to place parts on boards quickly and correctly. This lowers the cost and makes the quality better.
The SMT process has a few steps. First, solder paste is put on the board. Next, parts are placed. Then, the board goes in an oven to solder. Last, workers check for any problems.
SMT parts are tiny and can go on both sides of a board. This lets people make more complex and lighter designs.
SMT saves space compared to old through-hole ways. It also makes less waste and helps build modern electronics like phones and medical tools.

What Is SMT?

SMT Definition

You use surface mount technology to put electronic parts right onto a printed circuit board. This way, you do not need to drill holes in the board. You place each part on copper pads and connect them with solder. Surface mount technology includes all the steps to attach and solder these parts. These parts are called surface mounted devices. Some common examples are resistors, capacitors, transistors, and integrated circuits.

Surface mount technology replaced old ways that needed wires or leads pushed through holes. With surface mount technology, devices can be smaller and lighter. It also makes building things faster and lets you make more complex designs. You can put more parts on both sides of the board. This helps you make electronics that are small but powerful. The what-is-smt-surface-mount-technology-vedio shows each step as it happens.

Tip: Surface mount technology helps lower PCB assembly costs. You can use machines to build boards and use less material.

Surface Mount Devices (SMDs)

Surface mount devices are the parts you put on top of the board. These parts come in many shapes and sizes. You do not need to drill holes for these parts. Instead, you use solder pads or balls under each part to stick them to the board.

Here are some important things about surface mount devices:

You put surface mount devices right on the board, not through holes.
Surface mount devices are smaller than old parts. This helps you make tiny and light devices.
You can put surface mount devices on both sides of the board. This gives you more ways to design things.
Machines can place surface mount devices quickly and correctly. This makes building faster and more reliable.
Surface mount devices work better at high frequencies. They have shorter leads and fewer unwanted electrical effects.

You see surface mount devices in almost all new electronics. They help make phones, tablets, laptops, and wearables smaller and stronger. Because surface mount devices are tiny, you can add more features to one device. This also helps batteries last longer and makes devices work faster.

Here is a table that shows some common types of surface mount devices and how they are used:

SMD Type	Description	Typical Function/Application
0201	Very tiny size	Used in RF circuits needing miniaturization
0402	Small size	Common in sensors and consumer electronics
0603	Medium size	Used in audio devices and defense
0805	Larger size	Military and industrial applications
1206	Largest size listed	Power electronics needing higher power
SOP, TSSOP	Compact IC packages	Space-saving in consumer electronics
QFN	High-density mounting	Smartphones and industrial electronics
BGA, PBGA	High pin count ICs	Microprocessors and controllers

When you use surface mount devices, you can make products lighter and easier to carry. They also use less energy. Devices last longer and break less because there are no drilled holes. Surface mount technology and surface mount devices help make new and better electronics. This lets you use smarter and smaller technology every day.

How Surface Mount Technology Works

SMT Process Steps

You can learn about surface mount technology by looking at the main steps. Each step helps make strong and good electronics. Here is how smt manufacturing usually happens:

Check all materials to make sure they are good and match the list.
Get ready for assembly by making stencils, baking boards, and setting up files.
Put solder paste on the board with a metal stencil.
Use a pick-and-place machine to put parts on the pcb.
Solder the parts with a reflow oven or vapor-phase soldering.
Look at the board after soldering to find any mistakes.
Test the finished board and pack it for shipping.

Tip: Careful checking and testing at each step help you find problems early and keep smt lines working well.

Key Equipment

You need special machines to make surface mount technology work right. Each machine has a job in the smt process. Here is a table that shows the main machines and what they do:

Equipment	Function
Solder Paste Printing Machine	Puts solder paste on the pcb through a stencil for exact part placement.
Pick and Place Machine	Quickly puts electronic parts on the board in the right spot.
Reflow Oven	Heats the board to melt solder paste and make strong joins.
Automatic Optical Inspection (AOI)	Checks for missing, wrong, or broken parts after soldering.
Solder Paste Mixer	Mixes solder paste so it is ready to use.
PCB Handling Machines	Moves boards through each step of the smt line.
Solder Paste Inspection (SPI)	Checks if the solder paste is good before adding parts.
Conveyors	Moves boards from one machine to another.
Reflow Profiling Instruments	Makes sure the reflow oven heats the board the right way.
Conformal Coating Stations	Adds a coating to protect boards so they last longer in tough places.

Each machine helps you make better electronics. Fast pick-and-place machines and smart inspection systems make smt assembly quicker and more reliable. New smt lines use AI and machine learning to find problems and make quality better. These tools help you keep up with the need for smaller and stronger devices.

SMT vs. Through-Hole

Differences

When you compare SMT and through-hole technology, you see big differences in how you build and design circuit boards. SMT lets you mount components right on the surface of the board. Through-hole technology needs you to push component leads through holes in the board and solder them on the other side.

Here is a table that shows the main differences:

Aspect	Through-Hole Technology (THT)	Surface Mount Technology (SMT)
Component Mounting	Leads go through drilled holes	Components sit on the surface of the board
Component Size	Larger components	Smaller parts for higher density
Assembly Process	Mostly manual, uses soldering irons	Automated with pick-and-place machines and reflow ovens
Repairability	Easier to repair or replace	Harder to repair, needs special tools
Reliability	Strong under stress	Less robust, but improving
Space and Weight	Good for high power and strength	Great for small, light, and complex designs

You use through-hole when you need strong mechanical bonds, like in aerospace or military devices. SMT works best when you want small, light, and complex electronics, such as smartphones.

Tip: SMT helps you save space and make devices lighter because you do not need drilled holes.

Pros and Cons

Both SMT and through-hole have strengths and weaknesses. You should choose the right one for your project.

SMT Pros:

You can use smaller components and fit more on each board.
Automated assembly makes production faster and lowers costs for large runs.
You get better performance at high frequencies.
SMT reduces waste because you do not drill holes.

SMT Cons:

Repairing or replacing parts is harder and needs special equipment.
Solder joints can break under heavy stress or heat.
High setup costs make it less ideal for small batches.

Through-Hole Pros:

You get strong mechanical bonds, which are good for tough environments.
Repair and prototyping are easier with simple tools.
Handles high power and heat better.

Through-Hole Cons:

Larger parts take up more space and add weight.
Manual assembly slows down production and raises costs.
Drilling holes creates more waste and limits how many parts you can fit.

When you make many boards, SMT can cut assembly costs by up to 50%. You also use less material and energy. For small projects or repairs, through-hole may be easier and cheaper. If you want to build compact, high-tech devices, SMT is the best choice.

SMT Assembly Video Guide

Watching the what-is-smt-surface-mount-technology-vedio gives you a clear look at each step in smt assembly. You see how machines and people work together to mount tiny parts on a board. The video shows how automation makes the process fast, accurate, and reliable. Let’s walk through each stage you will see in the video.

Solder Paste

You start smt assembly by applying solder paste to the board. The video shows you how this step works:

You keep solder paste in syringes and store it in a fridge to keep it fresh.
You place the board on a holder and line it up with pins or a vision system.
You put a stencil over the board. The stencil has holes where you want the paste.
You use a squeegee to spread the paste across the stencil. You press gently so the paste goes through the holes and lands on the pads.
You lift the stencil away. The paste stays on the pads in neat shapes.
You check the board under a magnifier to make sure the paste looks right and there are no smears or bridges.

Note: The type of squeegee and the design of the stencil affect how well the paste goes on. Metal squeegees work best for tiny parts.

The what-is-smt-surface-mount-technology-vedio shows how careful you must be with this step. Good solder paste printing helps you avoid problems later in smt assembly.

Pick and Place

After you put on the solder paste, you move to the pick and place step. The video highlights how machines do this job with amazing speed and accuracy.

The pick and place machine uses cameras and red lights to find each part and line it up.
The machine picks up parts from reels, tubes, or trays using suction nozzles.
It rotates and moves each part so it matches the pads on the board.
The machine places each part right on the solder paste, with accuracy down to a few microns.
If a part is wrong or missing, the machine finds it and fixes the mistake.

Some machines can place up to 33,000 parts every hour. For bigger or odd-shaped parts, the speed is a bit slower, but still very fast. The video shows how the machine changes nozzles for different parts and keeps working without stopping.

Tip: Automation in smt assembly lets you mount thousands of parts quickly and with fewer mistakes. This saves time and makes your boards better.

Reflow Soldering

Once all the parts are on the board, you use reflow soldering to make the connections strong. The what-is-smt-surface-mount-technology-vedio explains each stage of this process:

The board goes into a reflow oven. The oven heats up in steps.
First, the preheating stage warms the board slowly so nothing gets damaged.
Next, the soak stage keeps the board at a steady temperature. This helps the solder paste get ready to melt.
In the reflow stage, the oven gets hot enough (about 230°C to 250°C) to melt the solder. The solder flows and connects the parts to the board.
The cooling stage brings the temperature down slowly. This keeps the solder joints strong and stops cracks from forming.

You must watch the temperature closely. If it gets too hot or cools too fast, you can get bad joints or damage the parts. The video shows how you use special tools to check the temperature and make sure the oven works just right.

Key things you watch during reflow:
- Temperature profile
- Time above melting point
- Cooling rate
- Solder paste type
- Board thickness

Note: Using the right solder paste and oven settings helps you avoid problems like solder balls, open joints, or weak connections.

Inspection

After reflow soldering, you need to check your work. The video guide shows several ways you can inspect the finished board:

Automated Optical Inspection (AOI): Cameras scan the board and compare it to a perfect image. AOI finds missing parts, bad solder joints, and parts in the wrong place. You use AOI after solder paste, before reflow, and after reflow.
X-Ray Inspection: You use X-rays to look inside the board. This helps you see hidden solder joints, especially under big chips like BGAs.
In-Circuit Testing (ICT): Machines test the board by sending signals through it. ICT checks if each part works and if there are any shorts or open circuits.
Visual Inspection: Sometimes you look at the board with your eyes or a magnifier to spot problems.

Here is a chart that shows how often you find different defects in smt assembly:

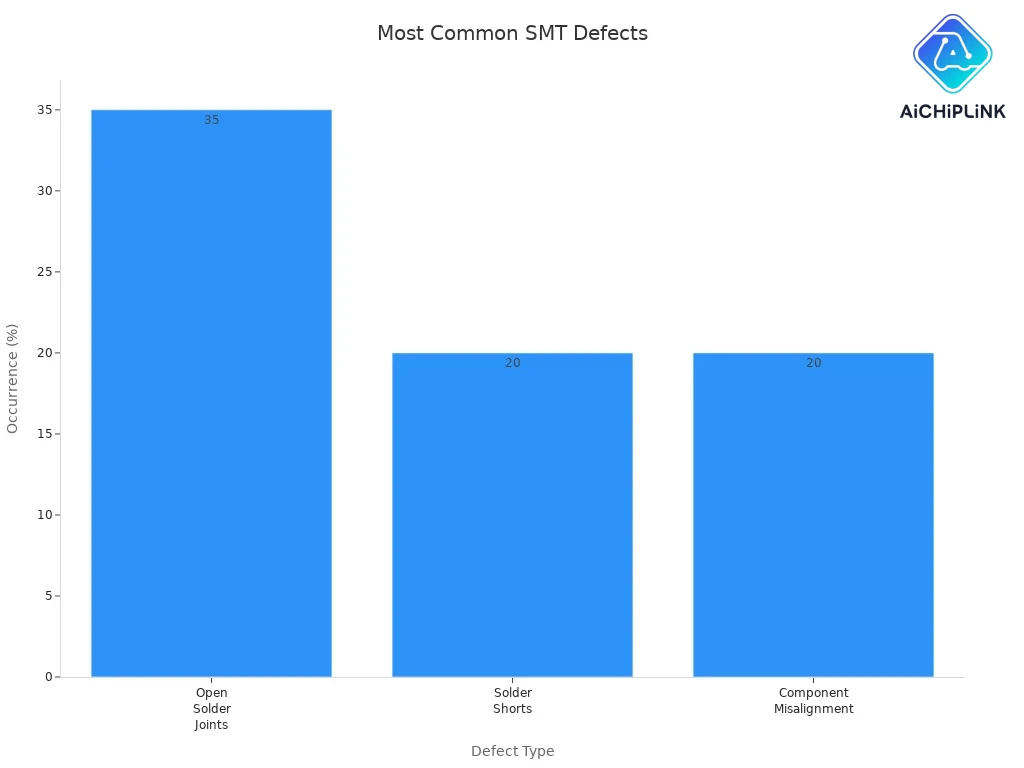

Bar chart showing occurrence of common SMT defects

Defect Type	Approximate Occurrence	Description
Open Solder Joints	35%	Solder joint is not properly connected, causing open circuits.
Solder Shorts	20%	Unintended solder bridges causing electrical shorts between conductors.
Component Misalignment	20%	Components placed incorrectly relative to pads, affecting solder joint quality.
False Solder	N/A	Appears soldered but leads can be pulled out; contact is unreliable.
Incomplete Solder	N/A	Rough, dull surface with insufficient solder volume causing poor contact.
Cold Solder Joints	N/A	Solder joints with poor wetting, leading to weak mechanical and electrical connections.
Solder Balls	N/A	Small solder spheres that can cause shorts or reliability issues.
Excess Solder	N/A	Too much solder causing bridging or mechanical stress.
Solder Skips	N/A	Missing solder on pads leading to open joints.
Lifted Pads	N/A	PCB pads detached from the board, causing connectivity issues.
Tombstone Defect	N/A	One end of a component lifted off the pad, resembling a tombstone shape.

Tip: Automated inspection and testing help you catch problems early. This keeps your smt assembly line running smoothly and your boards working well.

How the Video Shows Efficiency and Automation

The what-is-smt-surface-mount-technology-vedio makes it easy to see how automation changes smt assembly. Machines do most of the work, from printing solder paste to placing parts and checking for defects. You see how fast and accurate the process is. Automated lines can mount up to 60,000 parts every hour, with very few mistakes. This means you can make more boards in less time and keep quality high.

Note: Automation in surface mount technology lowers costs, speeds up production, and helps you build better electronics.

What-Is-SMT-Surface-Mount-Technology-Vedio Summary

Importance of SMT

You need smt to make the small gadgets you use every day. This technology lets you put lots of parts close together on both sides of a board. This saves space and makes things lighter. You do not have to drill holes, so you can make boards that are more complex and smaller.

Here are some reasons smt is important for today’s electronics:

Devices can be smaller and have more features in each one.
Machines build things faster and make fewer mistakes, so quality is better.
You spend less money because you use fewer materials and steps.
Circuits work better and last longer, even in hard conditions.
You can make boards with more layers and put parts on both sides, so you have more choices.
Shorter paths for electricity mean less wasted power and better energy use.

The video guide shows how all these good things work together in real smt assembly. You see how machines and smart planning help you make cool electronics that people want today.

Applications

You see surface mount technology in almost every field that uses electronics. From cars to hospital tools, smt helps make products smaller, smarter, and stronger.

Industry	Notable SMT Application Examples
Automotive	Cruise Control, Automatic Emergency Braking, EV Battery Management
Aerospace & Defense	GPS Satellites, Radar Technology, Electronic Warfare Systems
Telecommunications	Modems, Wi-Fi Routers, Set-Top Boxes
Consumer Electronics	Smartphones, Gaming Consoles, Digital Cameras
Medical Devices	Pacemakers, Hearing Aids, Glucose Monitors

You find surface mount technology in phones, routers, game systems, and even in medical devices that save lives. This shows how important smt is for making new devices. The video helps you see how smt is used in these areas by showing each step.

Now you know how smt and surface mount devices help make electronics smaller and better. The video guide shows every step, so it is easy to understand if you like to watch and learn.

smt puts parts on top of the board, so you can fit more parts in less space.
Machines help build things faster and keep the quality good.
Special tools help make sure everything is placed right and works well.
Watch the whole video to learn even more, and you can ask questions or share your thoughts below!

FAQ

What is the main benefit of using SMT in electronics?

SMT helps make devices smaller and lighter. You can fit more parts on each board. This means you can build things faster. Your electronics also work better.

Can you repair SMT boards easily?

Fixing SMT boards is not as easy as fixing through-hole boards. The parts are tiny and close together. You need special tools to take off and put on these small parts.

Why do manufacturers prefer automated SMT assembly?

Automated SMT assembly is faster and more exact. Machines can put on thousands of parts every hour. This way, there are fewer mistakes and better quality.
