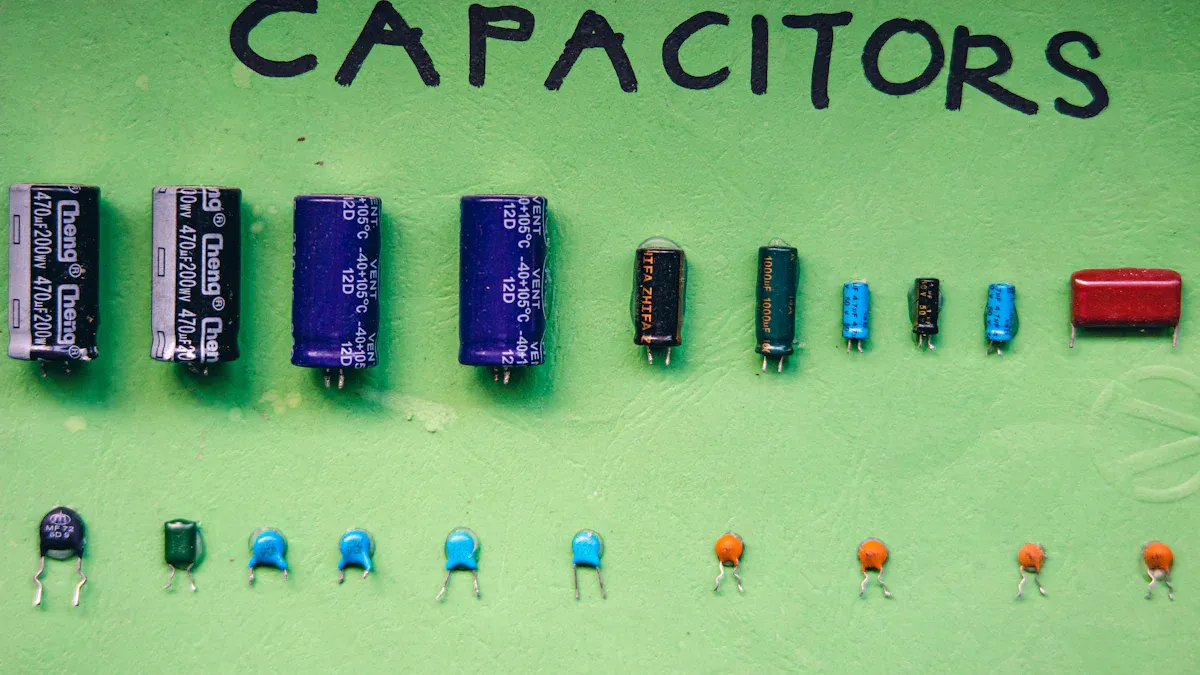

A cbb61 capacitor is a film capacitor made for ac systems. Many people ask, what is a cbb61 capacitor and what are capacitors? The cbb61 helps motors start and run well. You can find this capacitor in ceiling fans, pumps, and other home devices. It stores energy and makes a phase shift so motors can start. The cbb61 capacitor also helps motors work better and makes them quieter.
Knowing what a cbb61 capacitor is and what it does helps people pick the right capacitor for what they need.
Key Takeaways
-
CBB61 capacitors help motors start fast and run well by holding and giving out electrical energy.
-
People use them a lot in ceiling fans, air conditioners, pumps, and many other machines at home and in factories.
-
Picking the right capacitance and voltage helps motors work better and last longer.
-
Checking often for things like bulging or weird sounds can stop motor damage and make things safer.
-
Putting them in the right way and changing them on time keeps machines quiet and saves energy.
What is CBB61 Capacitor
Construction

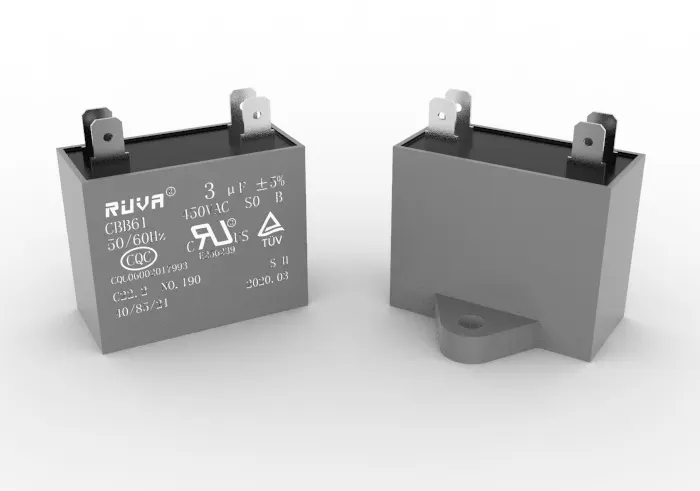

A cbb61 capacitor is made to help motors work well. It has a special design that keeps motors running smoothly. Makers use metallized polypropylene film and wind it into a core. They press the core flat with heat to shape it. This step also changes how the capacitor works. The core gets wrapped to make it strong and safe. Gold spray is put on the ends to help electricity flow and stop rust. Workers take off rings and roll the edges to finish the shape. Wires are soldered to the terminals. Then, the whole unit is sealed and baked. Each cbb61 capacitor is checked and tested to make sure it is safe and works right.
The table below lists the main technical details for a cbb61 capacitor:
| Specification | Details |
|---|---|
| Application | Motor run and start AC capacitors |
| Common Uses | Speed regulators of fans, ceiling fans, air conditioners, rotating equipment |
| Rated Voltage | 250 to 450 VAC (50/60Hz) |
| Capacitance Range | 1 to 15 µF |
| Capacitance Tolerance | ±5% |
| Construction Features | Non-inductance winding, metalized polypropylene film, flame retardant, S0/S3 anti-explosion design |
| Electrical Characteristics | Excellent self-healing, small equivalent series resistance, low temperature rise, stable performance, high reliability |
| Polarity | Non-polarized |
| Function | Provides phase shift in motor circuits to improve motor efficiency |
| Historical Usage | Widely used in fans and small appliances, indicating broad application |
Making a cbb61 capacitor takes many steps:
-
Wind metallized polypropylene film to make the core.
-
Press the core flat with heat.
-
Wrap the core for strength and safety.
-
Spray gold on the ends for better contact and to stop rust.
-
Take off rings and roll the edges for the right shape.
-
Solder wires to the terminals, then seal and bake the unit.
-
Wind onto reels and check for problems.
-
Test for electrical details.
-
Print capacitance, voltage, and maker’s name.
-
Cut wires and tape for easy use.
-
Check everything for safety.
-
Do a final quality check.
-
Pack the capacitors for shipping.
These steps help make sure each cbb61 capacitor is safe and works well in many devices.
Key Features
A cbb61 capacitor is strong and works well for a long time. It uses metallized polypropylene film, which helps it stay stable and handle heat. This means it can work in hard places. The cbb61 fan capacitor does not have polarity, so you can connect it either way. It has a case that does not burn easily and a design that helps stop explosions.
Some important features are:
-
It can fix small problems by itself.
-
It has low resistance, so it does not get too hot.
-
It works well and lasts a long time.
-
It can be used in places with 50Hz or 60Hz power.
-
Its winding does not make noise and helps motors work better.
Industry reports show cbb61 capacitors help motors run quietly and save energy. They also help appliances last longer. If you clean off dust and check for rust, these capacitors can last up to 20 years.
Typical Uses
People often want to know what a cbb61 capacitor is used for. It is found in many home and work machines. The cbb61 capacitor is most often used in ceiling fans, air conditioners, and pumps. It helps start and run single-phase AC motors. You can also find it in speed controls for fans and other spinning machines.
Here are some common uses:
-
Ceiling fans and exhaust fans
-
Air conditioners and HVAC units
-
Water pumps and small compressors
-
Washing machines and other home appliances
The cbb61 helps motors start fast and run smoothly. It also makes less noise and helps machines last longer. There are different cbb61 capacitors for different voltages and sizes. When people ask what capacitors do, the cbb61 is a good example. It shows how a simple part can make machines safer and work better.
Tip: Pick the right cbb61 capacitor for your device. This helps your fan capacitor or motor-driven machine work best and last longer.
How Does a CBB61 Capacitor Work
Working Principle
A cbb61 capacitor holds electrical energy and lets it go when needed. This helps motors start and keep running well. Inside, a thin film keeps the charge safe. When electricity enters, a charge builds up between two metal layers. The cbb61 then sends this energy to the motor. This all happens very fast. The cbb61 does not have a positive or negative side, so you can connect it either way.
The cbb61 works best in AC circuits. It helps keep the flow of electricity even. This stops the motor from getting too hot. The cbb61 also cuts down on wasted power. Many people wonder how a cbb61 capacitor works. The answer is that it stores energy and gives it to the motor at the right time.
Note: The cbb61 capacitor is like a tiny battery, but it charges and empties much faster.
Role in AC Motors
The cbb61 is very important for single-phase AC motors. These motors need help to start spinning. The cbb61 gives the motor a strong push to get going. It changes the timing of the electric current, which is called a phase shift. This makes the motor start turning.
After the motor starts, the cbb61 keeps helping. It makes the flow of electricity smooth. This helps the motor run quietly and with less shaking. The cbb61 also helps the motor use less power. This saves energy and lowers your electric bill.
Here are some ways the cbb61 helps AC motors:
-
Gives a strong push to start the motor
-
Keeps the motor running smoothly
-
Reduces noise and shaking
-
Helps the motor last longer
A cbb61 capacitor is needed for ceiling fans, pumps, and air conditioners. Without it, these machines would have trouble starting and might break sooner.
Phase Shift and Energy Storage
The cbb61 makes a phase shift in the motor circuit. This means it changes the timing between two electric currents. The cbb61 makes one current go ahead or behind the other. This helps the motor start and run better.
The cbb61 stores energy in its film layer. When the motor needs more power to start, the cbb61 gives out this energy. After the motor starts, the cbb61 keeps storing and giving out energy as needed. This helps the motor stay strong and steady.
The table below shows how the cbb61 helps in different ways:
| Function | Benefit to Motor |
|---|---|
| Phase shift | Easier start |
| Energy storage | Smooth operation |
| Power balancing | Less heat and noise |
| Fast charge/discharge | Quick response |
Tip: Always use the right cbb61 capacitor for your motor. If you use the wrong size, the motor may start slowly or get damaged.
The cbb61 helps motors start fast and run well. It stores energy, makes a phase shift, and balances power. These things help many home and work machines last longer and work better.
CBB61 Function and Applications
Household Appliances
The cbb61 capacitor is important in many home machines. You can find this fan capacitor in ceiling fans, air conditioners, and exhaust fans. It helps these machines start fast and run well. The cbb61 works with single-phase AC motors, which are common in houses. This fan capacitor works with both 50Hz and 60Hz power. That means it can be used in many places around the world.
-
Ceiling fans need the cbb61 to start spinning and keep a steady speed.
-
Air conditioners use the cbb61 capacitor to run their compressors and blowers.
-
Water pumps and washing machines also use this capacitor to work well.
The cbb61 keeps electric currents steady. This helps motors last longer and use less energy. It is made from metallized polypropylene film, so it can handle heat. The cbb61 works even when the temperature changes. Many machines use the cbb61 as both a start and motor run capacitor. If you clean and check the fan capacitor often, it can last up to 20 years.
Industrial Uses
Factories and workshops use the cbb61 capacitor too. Many machines with single-phase motors need help to start and run smoothly. The cbb61 helps pumps, small compressors, and conveyor belts work without problems. In these places, the cbb61 fan capacitor helps motors run quietly and break down less.
Some big fans and blowers in factories use the cbb61 to move air better. The strong build of the capacitor helps it handle power changes and tough conditions. Workers pick the cbb61 when they want a safe and long-lasting part for their machines.
Performance Benefits
The cbb61 gives many good things for homes and factories. It helps single-phase motors start strong and keep running steady. The cbb61 capacitor makes machines quieter by lowering noise and shaking. It also saves energy because it does not waste much power.
| Benefit | How CBB61 Helps |
|---|---|
| Fast start | Gives motors a quick boost |
| Smooth operation | Keeps speed steady |
| Less noise | Reduces hum and vibration |
| Long lifespan | Lasts up to 20 years |
| Energy savings | Uses less electricity |
The cbb61 capacitor is a great choice for many machines. Its design as a fan capacitor and motor run capacitor helps machines work better and last longer. People trust the cbb61 because it works well in many uses for the cbb61 capacitor.
Tip: Pick the right cbb61 capacitor to help your appliances last longer and save energy.
CBB61 Ratings and Selection
Capacitance and Voltage
Each CBB61 capacitor has a label with its capacitance and voltage. Capacitance is measured in microfarads (µF). This tells how much energy the capacitor can hold. If the capacitance is higher, motors start faster and run better. The voltage rating is shown in volts AC (VAC). This tells how much electrical pressure the capacitor can safely take. It is important to match the voltage rating to your motor or appliance. Most CBB61 capacitors work well between 250 and 450 VAC. These numbers help people pick the right CBB61 for fans, air conditioners, and pumps. Using the right values helps motors work well and last longer.
Tolerance and Temperature
Tolerance shows how much the real capacitance can change from the label. Most CBB61 capacitors have a tolerance of ±5%. This means the real value can be a bit higher or lower. The CBB61 uses polypropylene film to keep capacitance steady. This works even when the temperature changes. The material has a negative temperature coefficient. This means the capacitor works well in hot or cold places. Sealed CBB61 capacitors can resist humidity and dust. This helps them last longer in tough places. Good performance in different temperatures protects motors and appliances.
Size and Terminals
CBB61 capacitors come in many sizes and shapes. The size depends on the capacitance and voltage. Bigger values usually mean a bigger case. The terminals can be wire leads or quick-connect tabs. Picking the right terminal type makes it easier and safer to install. The small design fits well in fan housings and small appliances. The case does not burn easily, which makes it safer to use.
Selection Steps
To pick the right CBB61 capacitor, follow these steps:
-
Look at the old capacitor’s label for capacitance and voltage.
-
Match the new CBB61 to these numbers.
-
Pick a tolerance that works for your device, usually ±5%.
-
Choose a size and terminal type that fits your machine.
-
Think about where you will use it—pick a sealed CBB61 for wet or dusty places.
-
Make sure the capacitor matches the power supply’s frequency, either 50Hz or 60Hz.
Tip: Always pick a CBB61 capacitor that fits your motor’s needs. This helps the motor start fast, run quietly, and last longer.
A good match between the CBB61 and the motor helps everything work well and safely. Using good materials and checking often helps the capacitor last for years.
CBB61 Troubleshooting and Maintenance
Signs of Failure
CBB61 capacitors can show clear signs when they start to go bad. Finding these signs early can stop bigger problems with motors or appliances. Some warning signs are:
-
The case looks swollen or bulges out.
-
You see leaks or wet spots.
-
The pump makes a strange humming sound when starting.
-
The pump starts sometimes, but not always.
-
The pump’s parts move, but it does not work right.
-
You smell burning or odd smells, which means it may be too hot.
-
The pump is louder than normal.
-
The motor case melts because it gets too hot.
Thermal imaging can help find heat before the capacitor breaks. If a fan will not start or runs slowly, these signs may mean the CBB61 is failing.
Testing Methods
Technicians use a few ways to check if a CBB61 works. First, they look at the part for bulges, leaks, or burn marks. Then, they use a multimeter to check the capacitance. If the number is much lower than what is on the label, the part needs to be fixed. Some people use thermal cameras to find hot spots that show trouble. Checking often helps find problems early and keeps motors working well.
Tip: Always turn off the power before you test or touch electrical parts.
Replacement Tips
When you need to change a CBB61 capacitor, safety is most important. Technicians turn off the power and safely discharge the old part. They put in a new one with the same capacitance, voltage, and frequency. If they use a different type, like a C61, they make sure all the numbers match. They always check the maker’s details to be sure it fits and works right. Checking and testing often helps motors last longer and stops sudden problems. These steps help machines work better and save energy.
Note: Replacing and taking care of capacitors the right way keeps your appliances safe and working for a long time.
Knowing how a CBB61 capacitor works helps people keep motors and appliances safe. Checking the capacitor often and fixing problems the right way stops many issues. Some important things to remember are:
-
Using the right capacitance and voltage keeps motors safe from damage or fire.
-
How long the capacitor lasts depends on heat, voltage, and how hard it works. Tough conditions make it wear out faster.
-
If a fan runs slow, makes humming sounds, or gets too hot, the capacitor might be failing.
-
Testing and changing the capacitor safely keeps people and machines safe.
If the problem is hard to fix, people should ask an expert for help. This makes sure everything works safely and well.
FAQ
What does a CBB61 capacitor do in a ceiling fan?
A CBB61 capacitor helps the fan motor start up. It stores energy for the motor to use. The capacitor also makes the fan spin at the right speed. It helps the fan run quietly and not make much noise.
How can someone tell if a CBB61 capacitor is bad?
People can check if the case is bulging or leaking. A burnt smell is another sign of trouble. If the fan will not start or spins slowly, the capacitor might be bad. A humming sound can also mean it needs to be replaced.
Can a CBB61 capacitor be replaced with a different type?
Always pick a capacitor with the same capacitance and voltage. Using the wrong type can hurt the motor or cause safety problems. Look at the label before you replace it.
What is the lifespan of a CBB61 capacitor?
Most CBB61 capacitors last from 10 to 20 years. Hot weather, wet air, and heavy use can make them wear out faster. Cleaning and checking the capacitor often can help it last longer.
